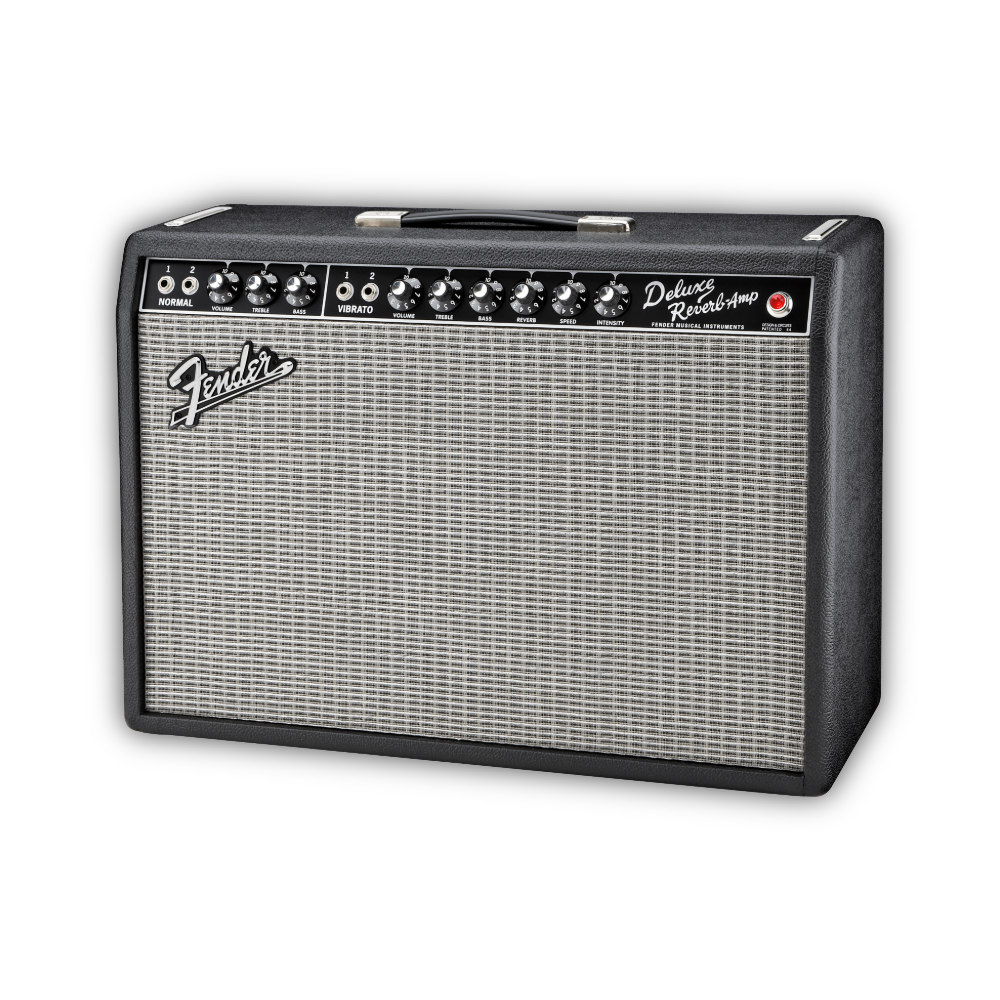

The 22-watt '65 Deluxe Reverb® amp is for rock, country or blues players who want a moderately powered amp they can crank up at the gig or in the studio. The full, snappy guitar tones heard on many famous recordings from Memphis to Abbey Road were made using the Deluxe™ amp. Features include dual 6V6 Groove Tubes® output tubes, one 5AR4 rectifier tube, four 12AX7 preamp tubes, two 12AT7 tubes, one 12" 8-ohm Jensen® C-12K speaker, dual channels (normal and vibrato), tube-driven Fender® reverb, tube vibrato, two-button footswitch for reverb and vibrato on-off, black textured vinyl covering and silver grille cloth.
Lauzon Music is the #1 trusted source for musicians.
Series: American Vintage
Amplifier Type: Tube
Country of Origin: U.S.A.
Electronics:
Inputs: Four - (1/4", Two Normal and Two Vibrato)
Channels: Two - (Normal and Vibrato)
Effects: Reverb, Tremolo
Voltage: 120V
Wattage: 22 Watts
Controls: Normal Channel: Volume, Treble, Bass; Vibrato Channel: Volume, Treble, Bass, Reverb; Vibrato: Speed, Intensity
Speakers
Speakers: One - 12" Jensen® C12K with Ceramic Magnet
Total Impedance: 8 ohms
Tubes
Power Tubes: 2 x 6V6
Preamp Tubes: 4 x 12AX7, 2 X 12AT7
Rectifier: Tube (1 x 5AR4)
Hardware
Control Knobs: Vintage-Style Skirted Black Plastic
Amplifier Covering: Black Textured Vinyl
Cabinet Material: Birch Plywood
Grille Cloth: Silver
Handle: Molded Plastic Strap with Nickel-Plated Caps
Amplifier Jewel: Red Jewel
Front Panel: Black
Accessories
Cover: Fitted
Footswitch: 2-Button Vintage Style (Reverb On/Off, Vibrato On/Off), P/N: 0994058000 (Included)
