The Tour Pro Platinum is Friedman's two-tier Tour Pro pedalboard with the power and the patching already sorted. Each one comes with a Power Grid 10 power supply and a Buffer Bay 6, both Friedman units, mounted in holes the board already has for them. The board itself is the same as the standard Tour Pro: made in the USA, a flat bottom row, an angled top row with cable routing holes, and a detachable riser for a wah or volume pedal that mounts for left- or right-footed players.
The Power Grid 10 has ten isolated 9V outputs at 350mA each, runs on 100 to 240 volts AC so it works anywhere in the world, and comes with the cables, including leads for reversed-polarity pedals and an 18V cable. It can also sit on top of the board as a riser, so you can mount pedals on it. The Buffer Bay 6 is a switchable buffer and a patch bay in one, with five TRS ins and outs and a 7-pin MIDI thru. Your guitar and amp plug into the Buffer Bay, so you're not fighting the first and last pedals' jacks every time you set up.
The five sizes match the standard Tour Pro. The 13 x 17 is the compact one, the 15 x 20 and 15 x 24 suit a typical gigging board, and the 15 x 29 and 15 x 42 are for big rigs. If you already own a power supply you like, the standard Tour Pro has the mounting holes for both units and lets you add them later.
SPECIFICATIONS
FEATURES
Country of Origin: United States
Design: Two tiers, a flat bottom section and an angled top section with holes for cable routing
Riser: Detachable riser for Wah and/or Volume pedals, mounts in various locations on the bottom tier
Routing: Flexible routing options, left or right footed layout
Mounting Holes: For the Buffer Bay 6 & Power Grid 10
Sizes: 13 x 17, 15 x 20, 15 x 24, 15 x 29, 15 x 42
POWER
Power Supply: Friedman Power Grid 10, included
Input: Universal power from 100-240Vac
Outputs: 10 isolated outputs, 350mA each per 9V output
Hum: ZERO field hum
Riser: Designed to double as a riser for mounting pedals on top of the housing
CONNECTIONS
Buffer and Patch Bay: Friedman Buffer Bay 6, included
Buffer: Ultra-transparent, natural and musical sounding buffer
Patch Bay: 5 identical 1/4″ TRS (tip, ring, sleeve) in and out connections
Buffered Connection: Buffered TS (tip, sleeve) connection (can be turned ON/OFF via switch)
MIDI: 7 pin MIDI thru connection
ACCESSORIES
Power Grid 10 Cables: 2 x 2.1mm BLACK connector to 2.5mm BLUE connector, polarity reversed, 20″ long, right angle connector on both sides
10 x 2.1mm BLACK connector to 2.1mm BLACK connector, regular polarity, 20″ long, right angle connector on both sides
1 x 2.1mm BLACK connector to 1/8″ phono BLACK connector, 20″ long, right angle connector on 2.1mm connector
1 x 18 V cable, 2.1mm BLACK connector with additional 2.1mm slave connector on one side to 2.1mm BLACK connector, regular polarity, 20″ long, right angle connector on both sides
DIMENSIONS

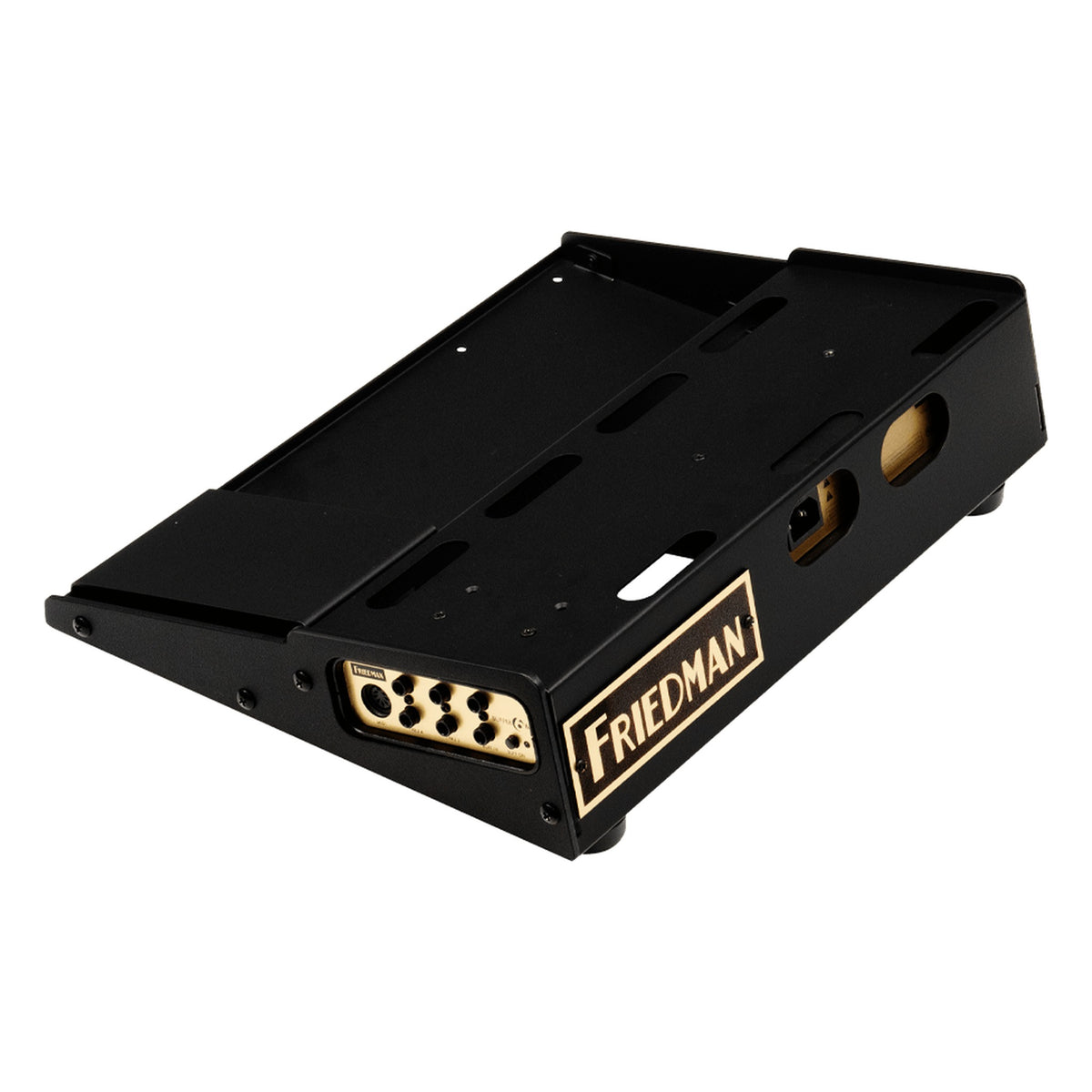

Tour Pro 1317 Platinum: 17” (w) x 13” (d) x 4.5” (h), 4 lbs.

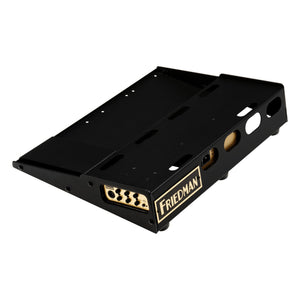

Tour Pro 1520 Platinum: 20” (w) x 15” (d) x 4.5” (h), 5 lbs.

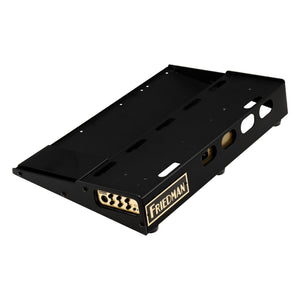

Tour Pro 1524 Platinum: 24” (w) x 15” (d) x 4.5” (h), 4.5 lbs.

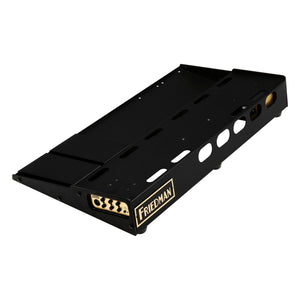

Tour Pro 1529 Platinum: 29” (w) x 15” (d) x 4.5” (h), 7 lbs.

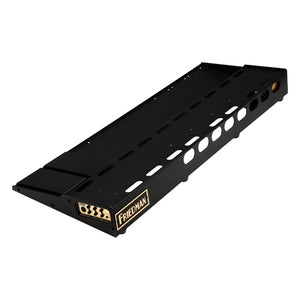

Tour Pro 1542 Platinum: 42” (w) x 15” (d) x 4.5” (h), 9 lbs.
