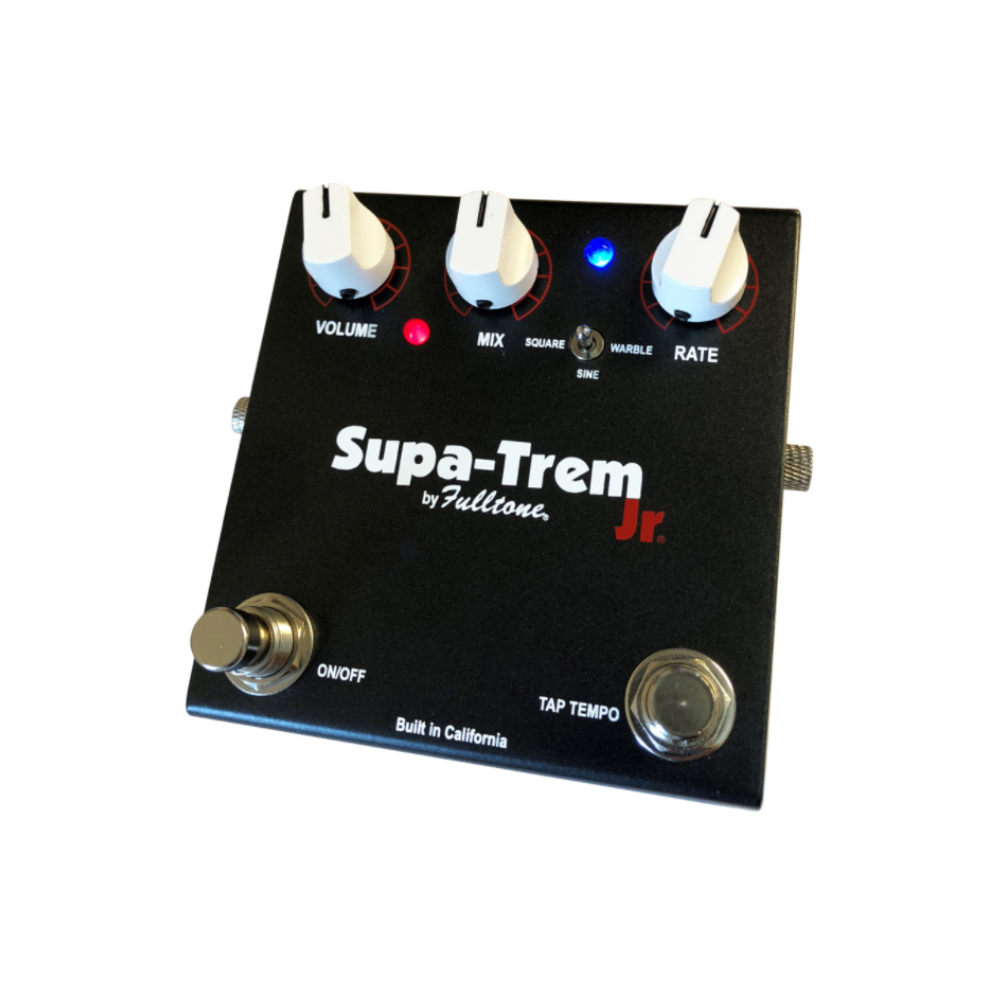

The Supa-Trem in a smaller box, with the analog signal path kept and a digital oscillator driving it. Opto-1 photocell and an Analog Devices JFET preamp, so what the guitar passes through is still the original circuit.
Volume, Mix and Rate, with a lever for square, sine and warble waveforms. Bypass and tap tempo are the two footswitches, and holding tap for three quarters of a second halves or doubles the rate. It goes slow enough that a full cycle takes around ten seconds and fast past 220 bpm.
Up to 15 dB of boost on tap, and with Mix all the way down it works as a clean analog boost on its own.
SPECS
Signal Path: Analog, Opto-1 photocell with Analog Devices JFET preamp
Oscillator: Digital
Controls: Volume, Mix, Rate, waveform lever for square, sine and warble
Footswitches: Bypass and tap tempo, with half and double on a held tap
Boost: Up to 15 dB
Connections: External tap jack
Bypass: True bypass
Power: 9-18V DC, 30 mA
Dimensions: 3.9" x 4" x 2.5"
