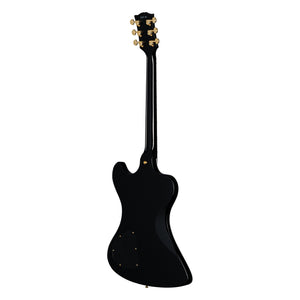

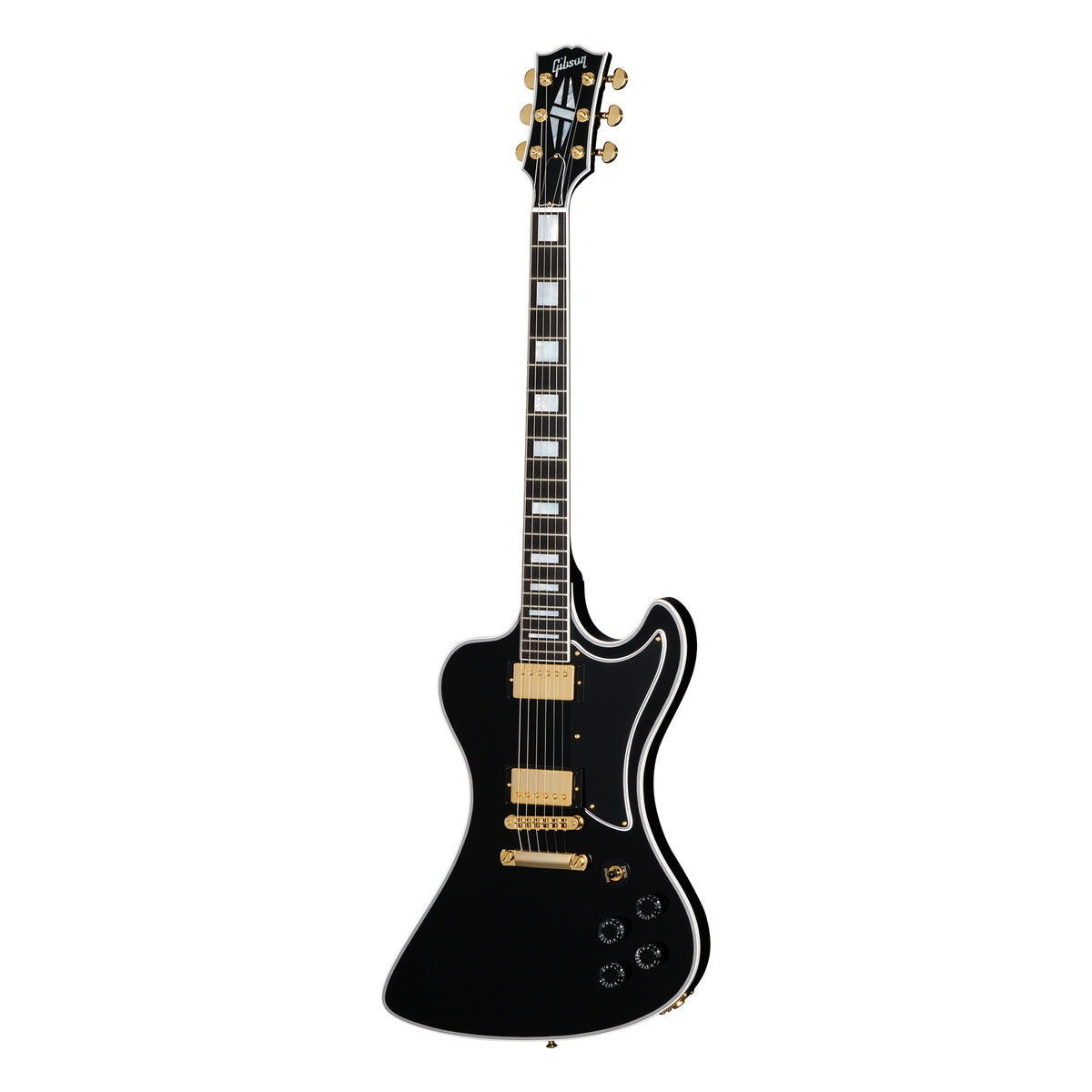

The RD first appeared in 1977, borrowing from both the Explorer and the Firebird, and has been a cult favourite ever since. The RD Custom joins Gibson Custom's core line with a 25.5 inch scale.
Mahogany body with multi-ply binding, a medium C mahogany neck on an ebony board with mother-of-pearl blocks, a 490R and 498T on a hand-wired harness with 500K CTS pots, a Tune-O-Matic, aluminum stop bar and gold hardware. Ebony, gloss nitro.
SPECIFICATIONS
BODY
Country of Origin: USA
Binding: Multi-ply Top and Headstock, Single-ply Fretboard
Body Finish: Gloss Nitrocellulose Lacquer
Body Material: Mahogany
Body Shape: RD
Body Styles: RD
Weight Relief: None
NECK
End Of Board Width: 56.89mm / 2.24in
Fingerboard Material: Ebony
Fingerboard Radius: 304.4mm / 11.98in
Fret Count: 22
Frets: Medium Jumbo
Inlays: Mother of Pearl Block
Joint: Long Tenon
Neck Material: Solid Mahogany
Nut Material: Corian
Nut Width: 42.85mm / 1.69in
Profile: Medium C
Scale Length: 647.7mm / 25.5in
ELECTRONICS
Bridge Pickup: 498T
Controls: 2 Volume, 2 Tone; Hand-Wired Harness with 500K CTS Potentiometers
Neck Pickup: 490R
Output Jack: 1/4" Switchcraft
Pickup Selector: 3-way Switchcraft Toggle
HARDWARE
Bridge: Tune-O-Matic
Control Covers: Black
Control Knobs: Black Speed
Hardware Finish: Gold
Jack Plate Cover: Gold-plated Brass
Mounting Rings: Black M69
Pickguard: Black Multi-ply
Pickup Covers: Gold-plated
Strap Buttons: 2 - Brass
Switch Tip: Cream
Switchwasher: Black
Tailpiece: Aluminum Stop Bar
Truss Rod: 2-way Adjustable
Truss Rod Cover: 2-ply
Tuner Plating: Gold
Tuning Machines: Grover Rotomatic with Kidney Button
Accessories: Certificate of Authenticity Booklet
Headstock Inlay: Gibson Logo and Custom Split Diamond in Mother of Pearl
Strings Gauge: .010, .013, .017, .026, .036, .046
CASE
Case: Custom Shop Hardshell
