The Broadkaster Jr. LX Center Block is built around Gretsch's redesigned Channel Core centre block, a maple and spruce combination under a laminated maple top. A centre block resists feedback at volume, and Gretsch voiced this one for a quicker attack and a stronger midrange. Two Pro Twin Six humbuckers run through separate neck and bridge volumes, a master volume with a treble bleed circuit and a no-load master tone with a "Squeezebox" capacitor.
The hardware is a string-thru Bigsby B7GP on an Adjusto-Matic bridge, Gotoh locking tuners, a Graph Tech TUSQ XL nut and Grover strap locks. The Standard "U" maple neck carries a 12" ebony board with rolled edges, 22 medium jumbo frets and Luminlay side dots on a 24.6" scale.

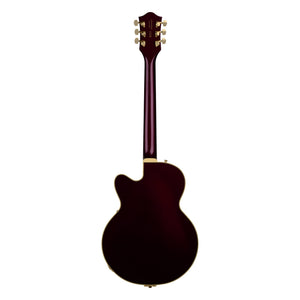

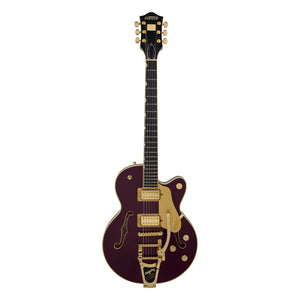

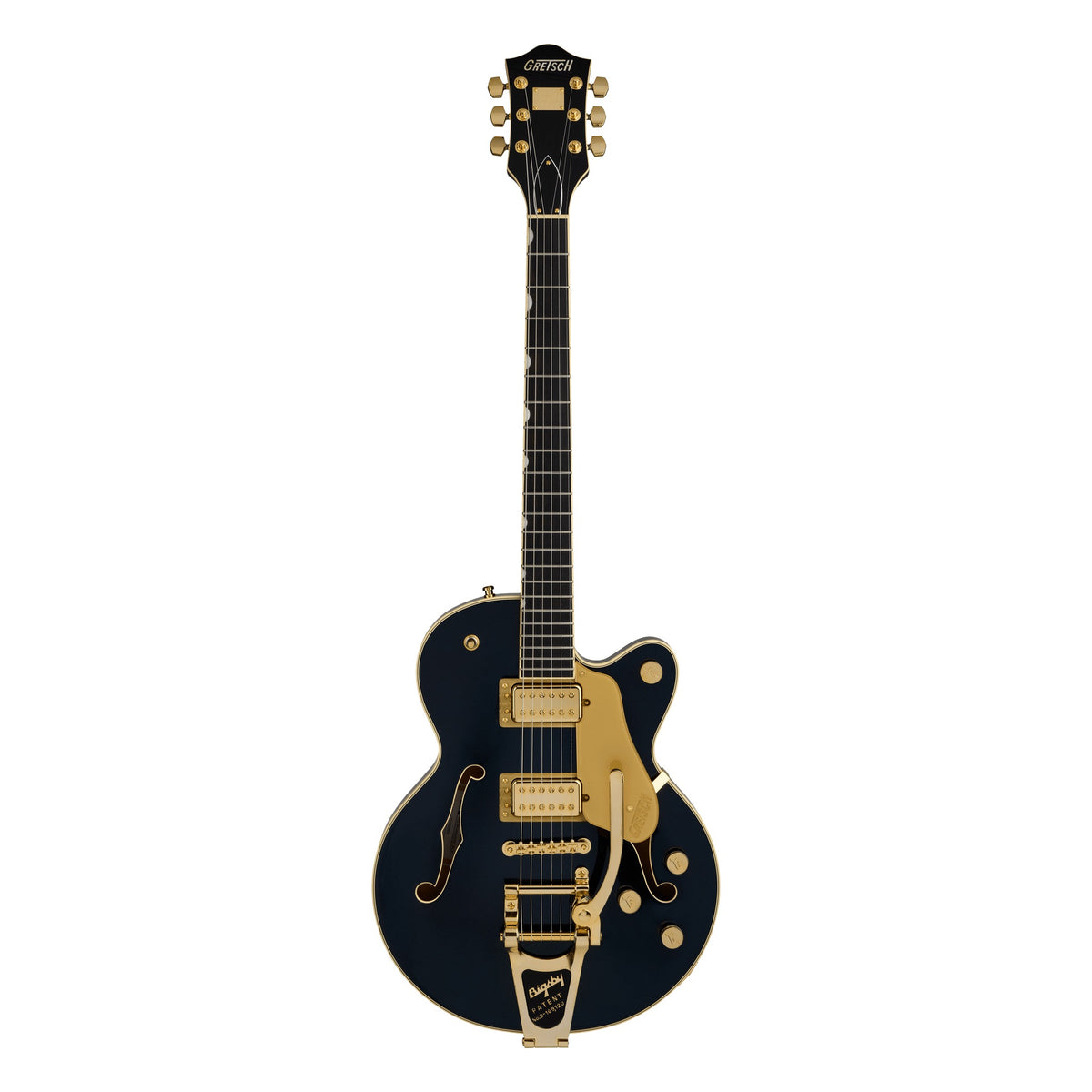

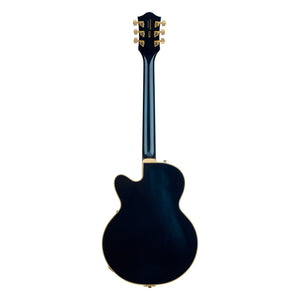

Both finishes, Midnight Sapphire and Blackberry, come with gold hardware and a gold pickguard. For the same electronics on the Broadkaster body, look at the Broadkaster LX Center Block.
SPECIFICATIONS
BODY
Country of Origin: Japan
Body Material: Laminated Maple
Body Finish: Gloss
Body Shape: Broadkaster Jr.
Body Binding: Aged White with B/W/B Purfling
Pickguard: Gold Plexi with Gold Gretsch Logo
NECK
Neck Material: Maple
Neck Construction: Set-Neck
Neck Finish: Gloss
Neck Shape: Standard "U"
Fingerboard Radius: 12" (305 mm)
Fingerboard Material: Ebony
Position Inlays: Pearloid Neo-Classic Thumbnail
Side Dots: Luminlay
Number of Frets: 22
Fret Size: Medium Jumbo
Nut Material: Graph Tech TUSQ XL
Nut Width: 1.6875" (42.86 mm)
Scale Length: 24.6" (625 mm)
ELECTRONICS
Bridge Pickup: Pro Twin Six
Neck Pickup: Pro Twin Six
Controls: Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Master Volume, Master Tone
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
HARDWARE
Bridge: Adjusto-Matic
Hardware Finish: Gold
Tuning Machines: Gotoh Locking
Pickup Covers: Gold
Control Knobs: G-Arrow
Strap Buttons: Grover Strap Locks
Strings: Nickel Plated Steel (.010-.046 Gauges)
CASE
Case: Included: Deluxe Hardshell Case
