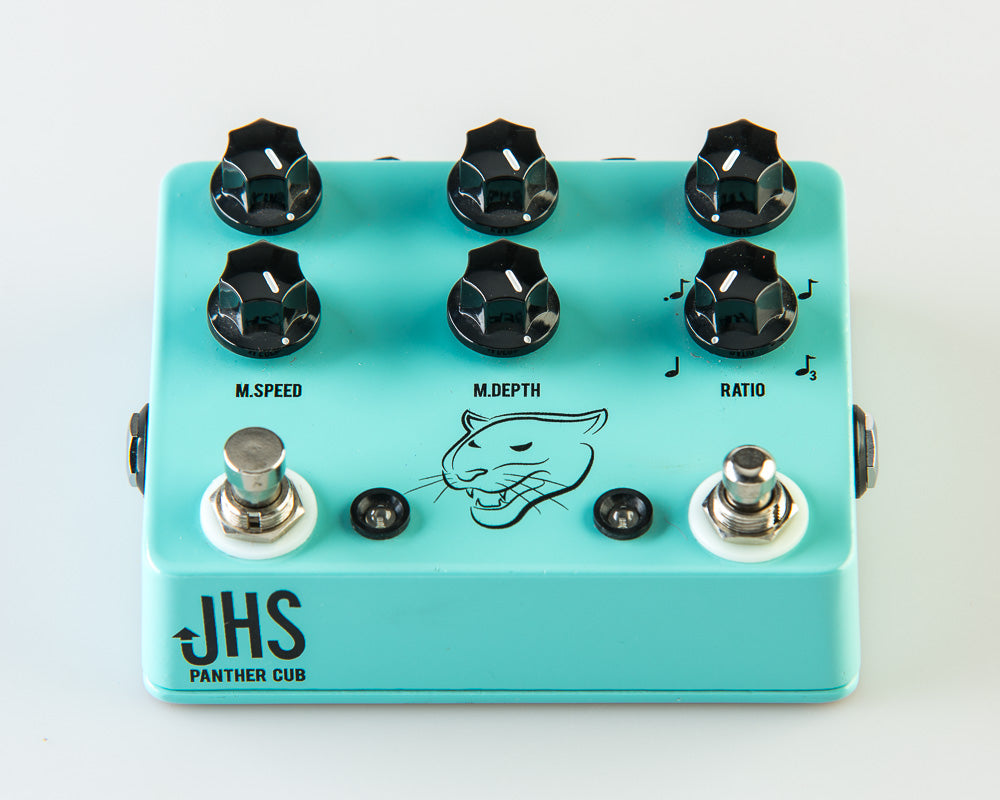

All-analog delay with tap tempo, which is a harder pairing to build than it sounds. Eight discrete 3208 bucket-brigade chips carry up to 1,000 ms, and the time is set either from the knob or from the dedicated tap footswitch, with a four-position Ratio control for quarter, dotted-eighth, eighth and triplet divisions.
The modulation sits at the Deluxe Memory Man end of the sound and keeps working with tap engaged. An effects loop puts any pedal on the repeats only, the Tap In/Out jack slaves to or drives another tap device, and an internal Roar switch gives two levels of oscillation for when you want it to run away.
SPECS
Signal Path: 100% analog
Delay Chips: Eight discrete 3208 BBD
Maximum Delay: 1,000 ms
Controls: Mix, Mod Speed, Mod Depth, Ratio, Feedback, Time
Ratio Divisions: Quarter, dotted-eighth, eighth, triplet
Switching: On/off and dedicated tap tempo footswitches
Connections: Effects loop on repeats, Tap In/Out jack, expression control
Power: 9V DC
Enclosure: 1590BB, 4.7" x 3.7"
