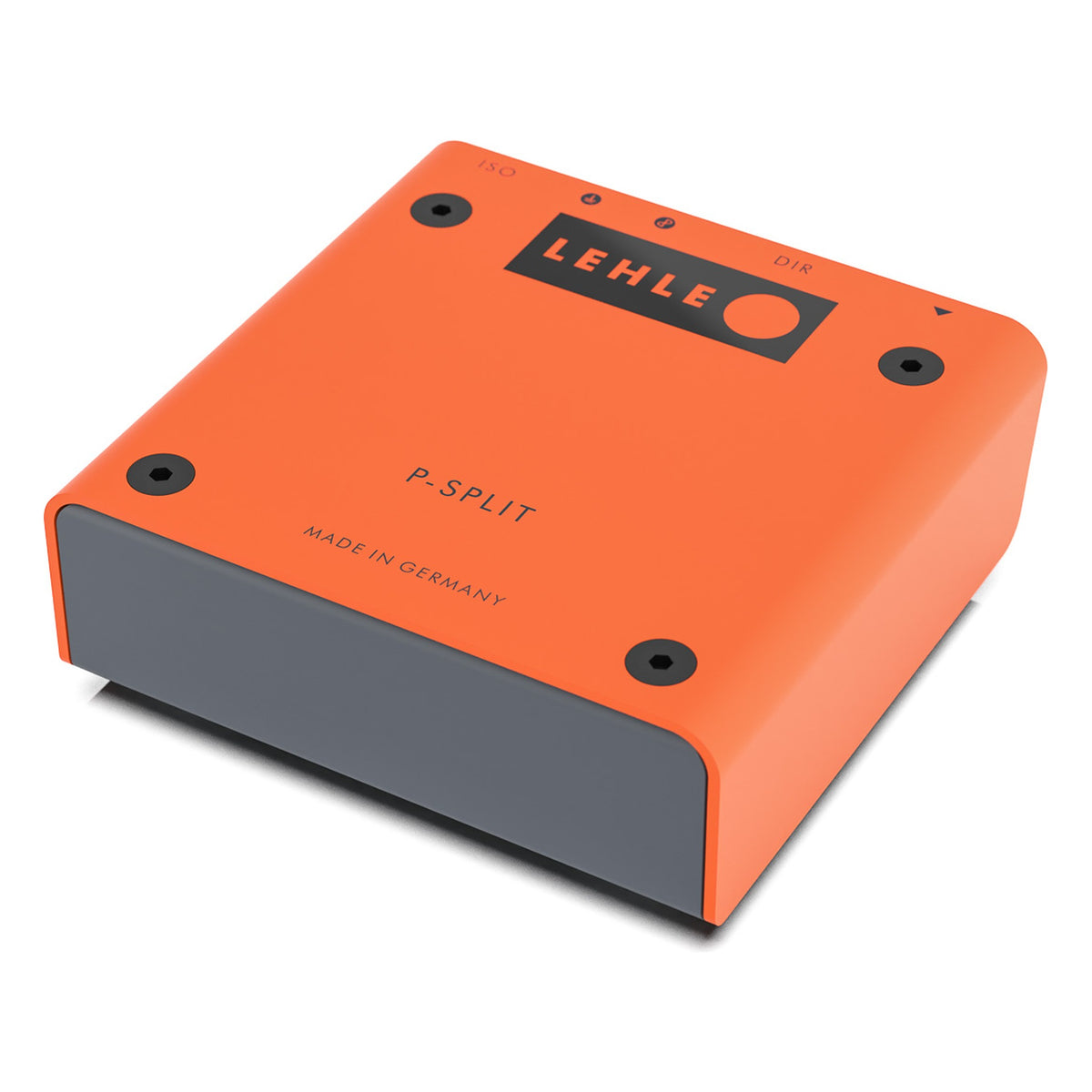

Lehle P-Split III Passive Splitter and DI Box

Name: Lehle P-Split III Passive Splitter and DI Box
Brand: Lehle
SKU: 210000020075
Price: 284.99 CAD
Availability: InStock

Signal Routing & UtilitySKU 210000020075

4.8★ average Google rating

$284.99 CAD

In stock
Set up free
Shipped insured from Ottawa
Free shipping over $200

Got a question about this one?

We love talking guitars.

Email usshop@lauzonmusic.com Call the shop613-725-1116

Provenance

Why this one made the wall

A passive transformer splitter for running one instrument into two amps, or an amp and a desk, without ground-loop hum. Lehle's high-impedance Transformer HZ isolates the second output, which doubles as a balanced DI, and a phase switch cures cancellation between the two rigs.

SPECIFICATIONS

Features
Transformer: Lehle Transformer HZ
Switches: phase and ground, gold-plated contacts
ISO output: balanced (TRS) or unbalanced
Input impedance: min. 2 megohms at 2 kHz
Max level: 7.7 V RMS (20 dBu)
Frequency range: 20 Hz to 100 kHz

Power
Supply: none needed, fully passive

Dimensions
Size: 92 x 90 x 37 mm (3.6" x 3.5" x 1.5")
Weight: 375 g

Whatever came with it comes with it: the case where there is one, certificates, case candy, paperwork. All of it checked against the serial before it ships.

Bench inspected

Every instrument crosses our bench before it ships, and on an online order that setup is free. It can cover the frets, hardware, truss rod, action, nut slots, intonation, pickup heights and electronics, whatever the guitar needs.

Ships insured

Ships worldwide from Ottawa, insured for its full value. Free shipping in Canada and the US on orders over $200, some exclusions apply. US orders arrive with no duty, tax or brokerage owed at the door.

You have 48 hours from arrival to decide. Exchange it and the restocking fee is waived. On a straight refund it is 10% plus the actual shipping both ways. Email us first either way, nothing comes back unauthorized.

Financing

PayPlan by RBC for Canadian buyers, with the exact terms shown at checkout. Financing never changes the price of the guitar.

Authorized dealer

Full manufacturer warranty on every new instrument.
