A full rotary speaker cabinet in a pedal: bass rotor, treble horn, tube preamp drive and mic placement, with the horn and rotor speeding up and slowing down independently the way a real cabinet does. The second version adds a Dry blend, mono or stereo input, MIDI with 300 presets and USB-C.
SPECIFICATIONS

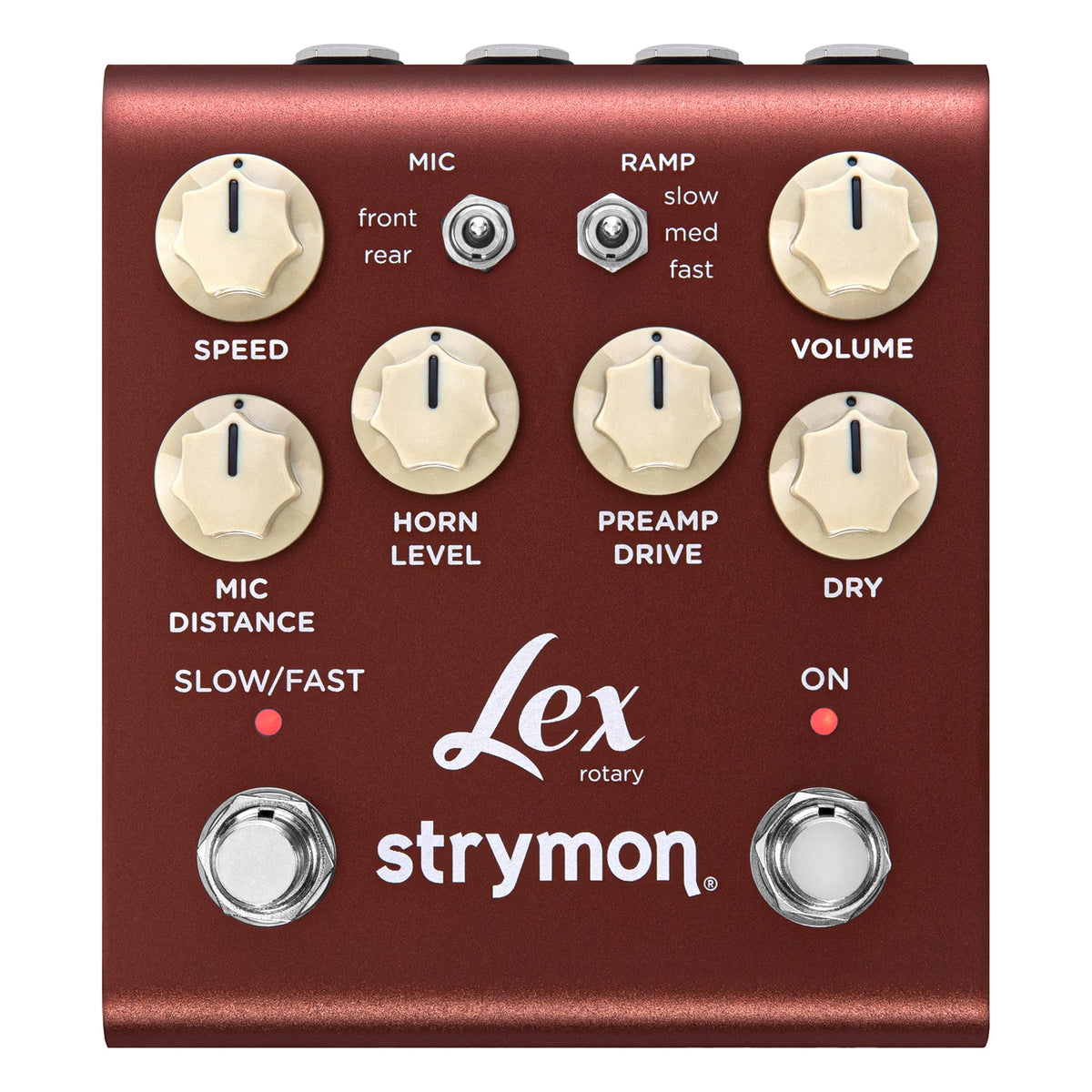

Controls
Knobs: Speed, Mic Distance, Horn Level, Preamp Drive, Volume (+/-6 dB), Dry
Mic switch: Front or rear of the cabinet
Ramp switch: Slow, med, fast rotor acceleration
Footswitches: Slow/Fast (hold for brake) and On
Connections
Input: TRS, Class A JFET, mono or stereo (selectable)
Outputs: Out L and Out R
EXP/MIDI: Expression pedal, MiniSwitch, MultiSwitch Plus or TRS MIDI
USB: USB-C for MIDI and firmware updates
Presets: 300 MIDI preset locations, MIDI clock sync
Power
Requirement: 9V DC, center negative, 300 mA minimum (supply not included)
Dimensions
Size: 4.5" deep x 4" wide x 2.4" tall (11.43 x 10.16 x 6.1 cm)
