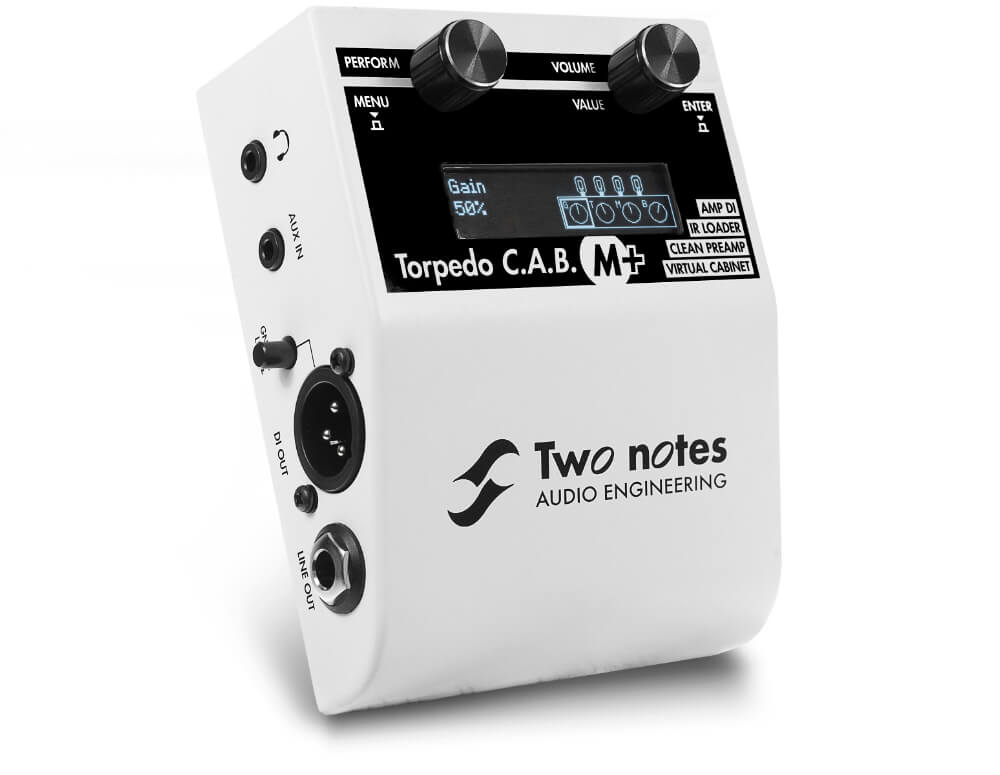

Torpedo C.A.B. M+ is powerful pedal platform providing the foundation to bould inspirational tones without your amps or cabinets.
C.A.B. M+ offers a studio grade, amp-free rig loaded with 32 premium DynIR Virtual Cabinets. Every cabinet includes a choice of 12 room emulations and 8 mics. Building on the success of the acclaimed Torpedo C.A.B. M, the C.A.B. M+ includes a stunning clean preamp, refined power amps, enhancer, tuner, expanded reverbs and noise gate.
Torpedo C.A.B. M+ includes 32 DynIR Virtual Cabinets. Experience official captures by Celestion, ENGL, REVV, and Victory Amplification, and more, direct from your pedalboard.
Fed up with lifting heavy cabinets, having inconsitent FOH sound and/ or stage volume issues? Go direct to the PA or audio interface with C.A.B. M+ and discover DynIR cab sim tech.
With the high headroom clean preamp (inspired by a '74 Silverface B'Man). Torpedo C.A.B. M+ is the ultimate clean pedal platform that completes your pedalboard.
Pair Torpedo C.A.B. M+ with your phone, tablet, or computer. Change the cabinet, microphones, room, EQ, reverb, or edit any paramter via Torpedo Remote or directly from the hardware.
No other pedal platform offers such universal control of the miking chain and with dual miking per cabinet, your rig reaches new heights of authenticity and flexibility.
A Best of pedal Platform
Pedals have come a long way in the last 25 years and many of us use them as the foundation of our tone. With a clean preamp and a choice of 8 power amps emulations (EL84. EL34, 6L6, KT88 - Single End or Push Pull, Triode or Pentode), the torpedo C.A.B. M+ is the ultimate pedal platform.
Amp DI
The reamp and power am sections can be indeendently engaged. Therefor, you can place the C.A.B. M+ between your tube amp and a reactive load box to create a 'silent stage' or use the Torpedo C.A.B. M+ with your favourite preamp pedal. This flexibility couple with DynIR technology and comrpehensive I/O, makes Torpedo C.A.B. M+ your secret weapon - no matter how your rig evolves at home, on stage, or in the studio
IR Loader
The Torpedo C.A.B. M+ not only supports DynIR virtual cabinets but also loads regular (static) IRs. Store hundreds of IRs on the included memory card and effortlessly mix two static IRs fules using the C.A.B. M+ hardware or via Torpedo Remote (phone, tablet, computer). The powerful onboard DSP allows the processing to happen with the minimum of latency - even with the maximum IR length of 200ms, the sound will hit you without any audible delay.
Studio Grade Effects
Clean Preamp, Enhancer, Power Amps, Noise Gate, Reverb, EQ
Input / Output
Amp/Inst/Line Input:
1/4″ Jack balanced (TRS)
In Level Switch*:
+12dB: Max level: 4 dBu, Impedance: 1 MOhms
0dB: Max level: 16 dBu, Impedance: 57 kOhms
-24dB: Max level: 40 dBu, Impedance: 47 kOhms
*Affects input sensitivity and impedance
Aux In:
1/8″ (3.5mm) TRS Jack
Downmixed to mono
Speaker output*: 1/4″ Jack balanced (TS)
*Unprocessed, unbuffered, directly connected to Amp In
DI output*:
XLR balanced
Max level: 10 dBu
Impedance: 300 Ohms
*Protected against +48V phantom power
Line output:
1/4″ Jack balanced (TRS)
Max level: 10 dBu
Impedance: 300 Ohms
Headphones output:
1/8″ Mini-Jack (TRS)
USB connector:
USB 2.0 Micro-B
Memory card:
256Mb Micro-SD included Up to 32Gb cards supported
Digital Audio
AD/DA Converters:
Studio-grade 24-bit / 96 kHz
Bandwidth (-1dB):
30 Hz – 19 kHz
Signal-to-noise ratio:
91 dB
Internal Processing:
32-bit floating-point
Latency:
2.2 ms (Line Input to Line Output)
Power
Power input connector:
DC connector, 2.1mm x 5.5mm, center negative
Supplied adapter:
100-240v AC to 12v DC 1A
Power consumption:
Approximately 2W
Current consumption:
200mA
Dimensions & weight
Width x Depth x Height*:
12.1cm x 10cm x 6cm – 4.8″ x 4″ x 2.4″
*Including connectors and knobs
Lauzon Music is the #1 trusted source for musicians. Free shipping available across Canada for orders over $200!
Weight: 450 g / 0.99 lbs
