*16 Ohm Version*

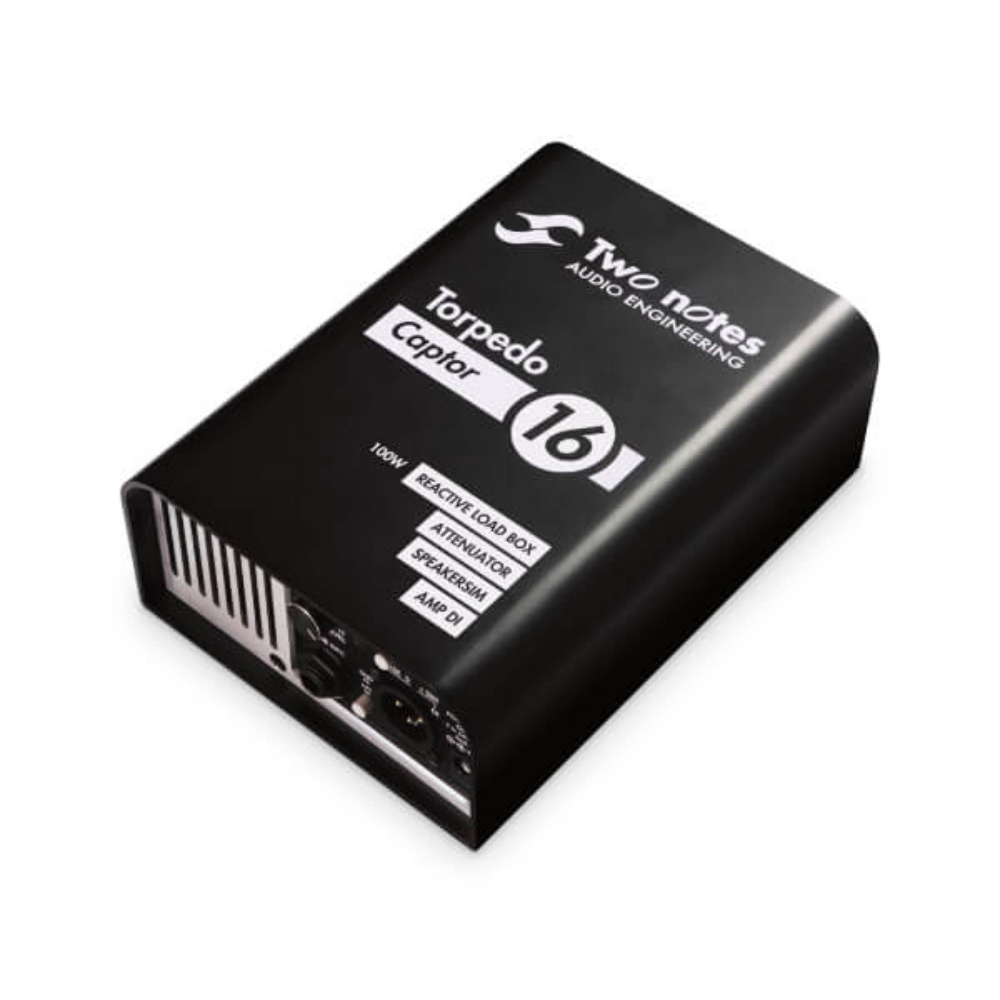

Compact and straightforward, the Torpedo Captor is the secret weapon in thousands of studios worldwide and an indispensable tool for stages of all sizes. Play and record your amp at home, on stage, or in the studio, at the sweet spots.
Includes built-in guitar and bass analog cab sims for standalone use or combine with the included Wall of Sound Plug-In and explore 16 DynIR virtual cabinets.
Unleash Your Tube Amp
Play at the sweet spots
Push your tube amp to the sweet spots and control the volume with the -20db attenuator. Get pushed cleans, driving crunch, or liquid high gain with flattening the front row or disturbing your neighbours and family.
Record at the sweet spots
The reactive load box in the Torpedo Captor accurately emulates the response, dynamics, and feel of rig. Going direct, recording your favourite tube amp, and recording silently has never been easier.
Hit The Record Button
Feed your Torpedo Captor dry amp track into the carrier-class GENOME plug-in. Torpedo Captor includes 12 guitar and 4 bass Virtual Cabinets in the class-leading DynIR format.
Input / Output
Speaker Input : 1/4″ Jack unbalanced (TS)
Speaker Attenuated Output : 1/4″ Jack unbalanced (TS)
Attenuation: -20dB
Speaker Thru* : 1/4″ Jack unbalanced (TS) Directly connected to Speaker Input *Loadbox disconnected when in use
Line Output* : 1/4″ Jack balanced (TRS)
Impedance: 1000 Ohms
Phase switch
Ground lift
*Without speaker simulation
DI Output :
XLR balanced
Impedance: 600 Ohms
*With or without speaker simulation
Analog speaker sim :
Guitar : based on Brit VintC DynIR Cabinet – Dyn57 Microphone
Bass : based on Fridge DynIR Cabinet – Cnd87 Microphone
Reactive Load Box
Impedance :
8 Ohms
Max admissible power :
100W RMS
Safety system :
Temperature-controlled fan
Active thermal safety
Power
Input voltage :
Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center.
Current draw :
5mA
Power input connector:
DC connector, 2.1mm x 5.5mm, center negative
Power is required only for the XLR DI output and analog speaker sim
Dimensions & weight
Width x Depth x Height*:
12.6cm x 17.5cm x 6.2cm – 4.9″ x 6.7″ x 2.4″
*Including connectors and knobs
Weight: 1000 g / 2.2 lbs
