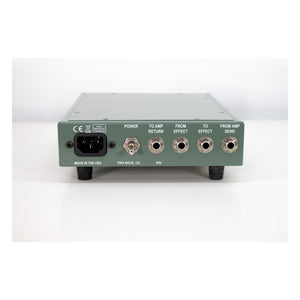

The Effects Loop Interface is Two-Rock's buffered box for running outboard effects through any amp with a passive effects loop. A single 12AX7 drives it.
Long chains of pedals and long cable runs load down a passive loop and lose top end. The interface buffers the send and return so the impedance mismatch goes away, and a bright switch on each side puts back any high end the chain still costs you. Send and return levels are separate.
It's built for amps with a passive loop, like the Classic Reverb Signature, Traditional Clean, Studio Signature, Burnside and Silver Sterling Signature, and works on other makers' amps with a preamp out and power amp in. The TS1 and Studio Overdrive already have tube-buffered loops. This listing is the 120-volt version.
SPECIFICATIONS
UNIT
Country of Origin: USA (Rohnert Park, California)
Model: Two-Rock Effects Loop Interface
Tube Type: 1 x 12AX7
Power: 120V
CONTROLS

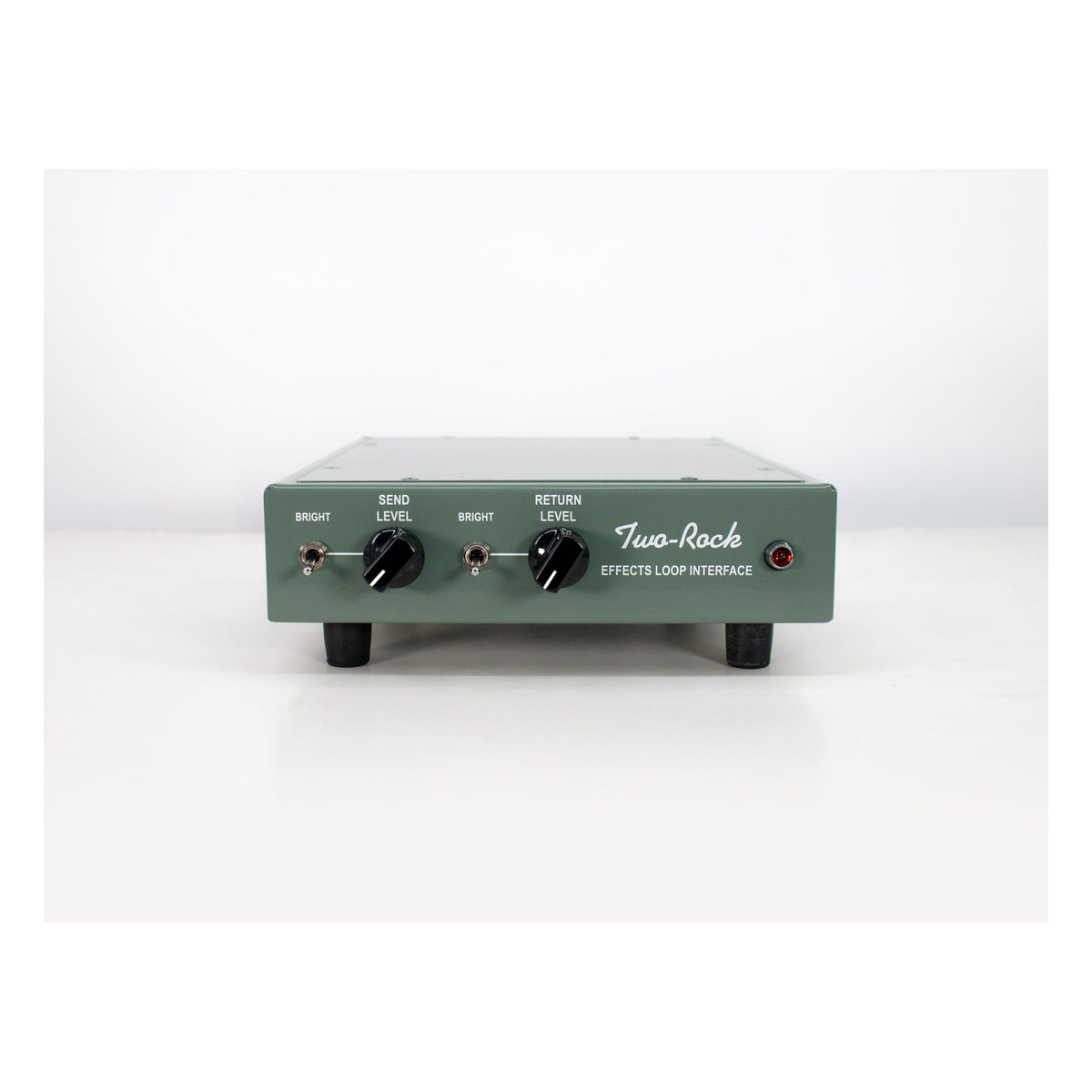

Individual Send and Return controls
Bright switches for both Send and Return
DIMENSIONS
Dimensions: 8.5" x 7"
Weight: 3.5 lbs
