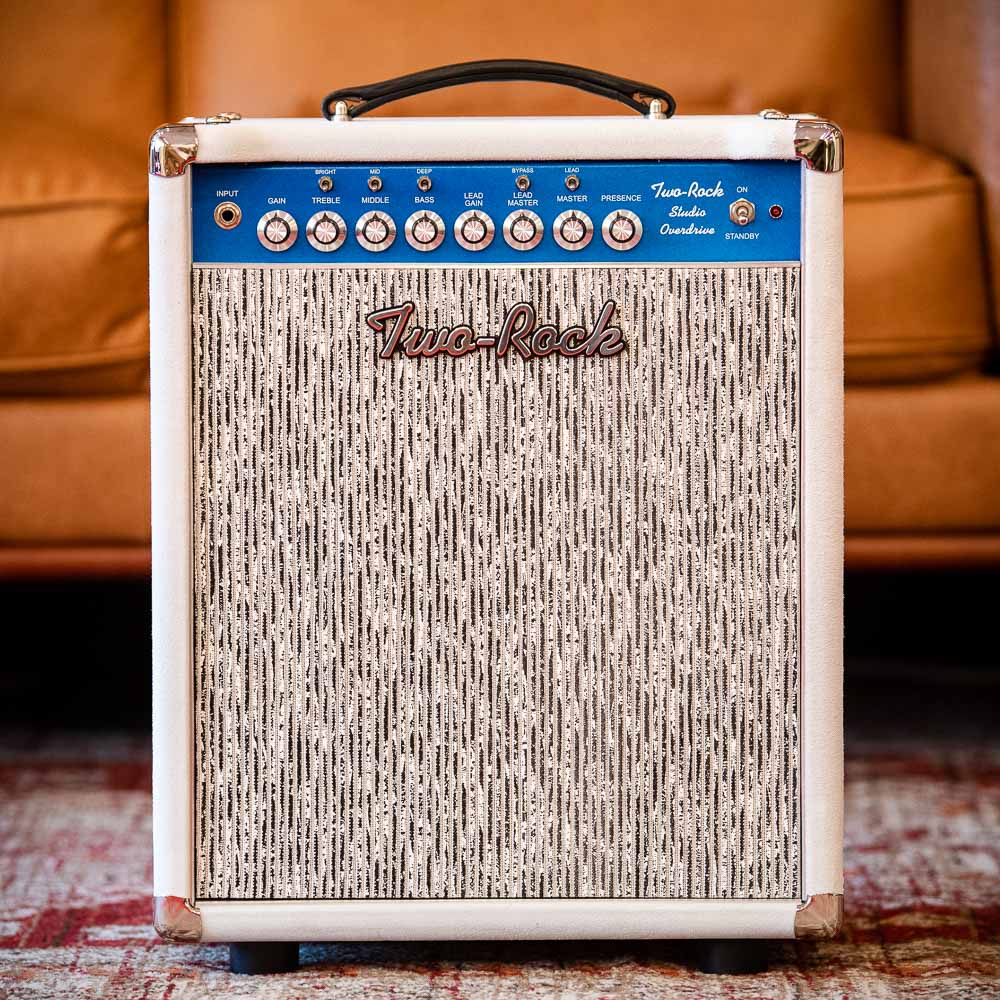

Blue chassis, white suede, EC Collins black and white pinstripe cloth and metal corners. Two-Rock's cosmetic options are the reason no two of these leave the shop looking alike, and this is one of the quieter combinations they do.
The Studio Overdrive is the compact platform in the line: 35 watts from a pair of 6L6s, two channels with independent masters, and the whole tone stack still on the front panel. If you have wanted a Two-Rock and the 100-watt amps have been more than your room will take, this is the one that fits without giving anything up on the control side.
The panel runs Gain, Treble, Middle, Bass, Lead Gain, Lead Master, Master and Presence, with mini-toggles for Bright, Mid and Deep sitting over the EQ and Bypass and Lead over the masters. The lead channel and the tone stack bypass are both footswitchable from the two-button footswitch that ships with it.
Full tube-buffered effects loop with push-pull defeat, speaker outputs at 4, 8 and 16 ohms.
SPECIFICATIONS
Serial: #196
Power Output: 35 watts
Power Tubes: (2) 6L6
Channels: Two, with independent master volumes
Controls: Gain, Treble, Middle, Bass, Lead Gain, Lead Master, Master, Presence
Switching: Bright, Mid, Deep, Bypass, Lead
Footswitch: Footswitchable lead channel and tone stack bypass via included 2-button footswitch
Effects Loop: Full tube-buffered effects loop with push-pull defeat
Speaker Outputs: 4 ohm, 8 ohm, 16 ohm
Chassis: Blue
Covering: White suede
Grille: EC Collins black and white pinstripe cloth
Trim: Metal corners
Dimensions: 15.625"W x 19.25"H x 10.5"D
Weight: 42 lbs
