Friedman ASC-10 Active Cabinet

Name: Friedman ASC-10 Active Cabinet
Brand: Friedman
Price: 1729.0 CAD
Availability: BackOrder

Pre-orderFriedman part FRD-ASC-10

4.8★ average Google rating

$1,729 CAD

Finish: Black Tolex

By placing a pre-order you agree to our Pre-order Terms.

Time of arrival for special orders varies by product.
It can be anywhere from two weeks up to several months. After you order, we check with the supplier and email you an ETA. Want an estimate before you order?

Ordered in for you
Set up free
Shipped insured from Ottawa
Free shipping over $200

Got a question about this one?

We love talking guitars.

Email usshop@lauzonmusic.com Call the shop613-725-1116

Our take

Who this one is for

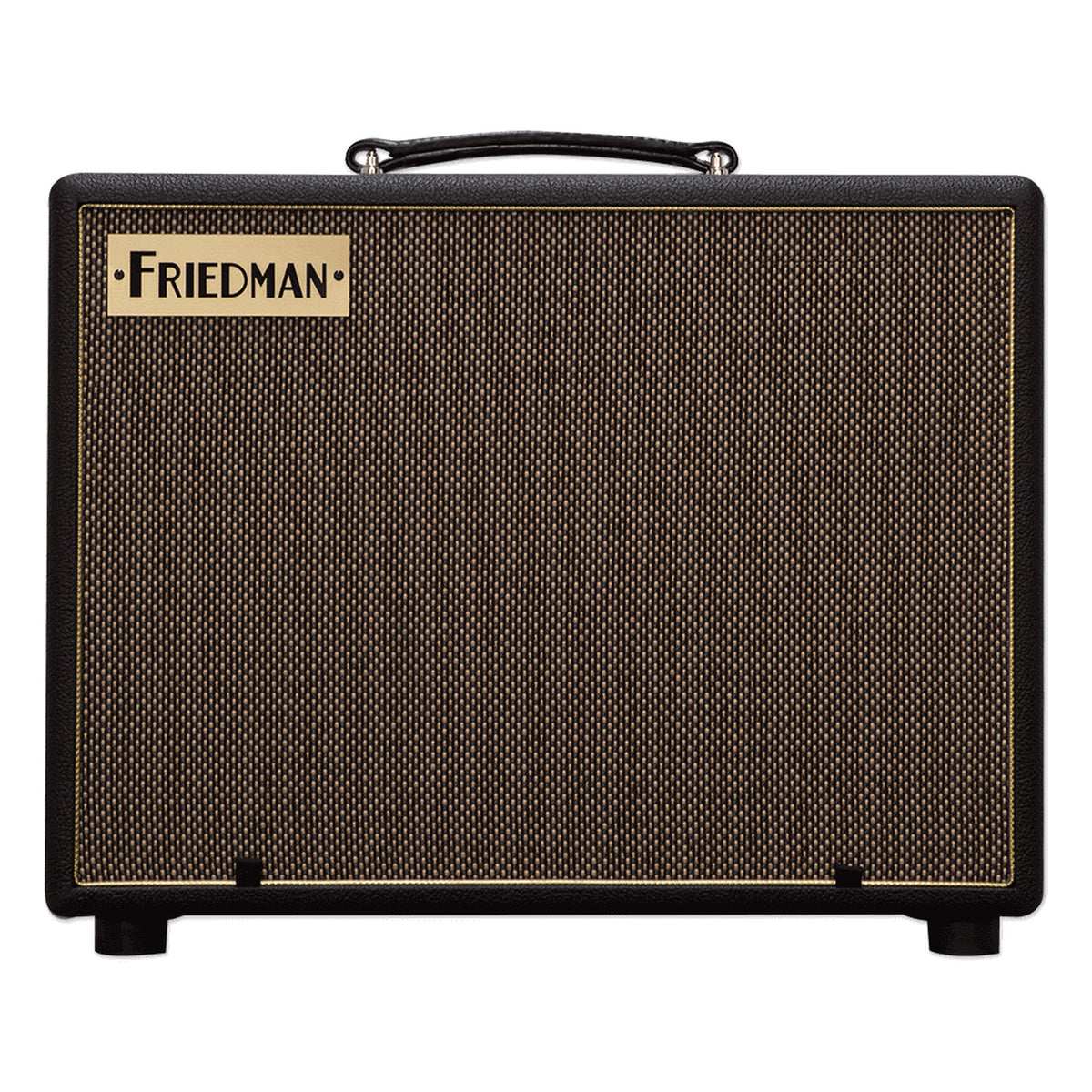

The ASC-10 is the backline-cab version of Friedman's 10-inch active monitor. It has the ASM-10's two-way Celestion pairing, a 10″ TF1025E woofer and a PETP film compression driver, and the same bi-amped, all-analog Class G power section rated at 500 watts maximum burst, voiced for modelers and profilers such as the Fractal Audio Axe-Fx, Kemper Profiler and Line 6 HD Series.

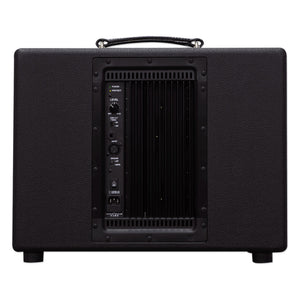

It's Baltic birch with a black textured paint finish, a strap handle and rubber feet, and at 34 lbs it's the lightest of Friedman's four ASM and ASC monitors. The back panel has a level knob, a low-cut switch at 100Hz and a ground lift.

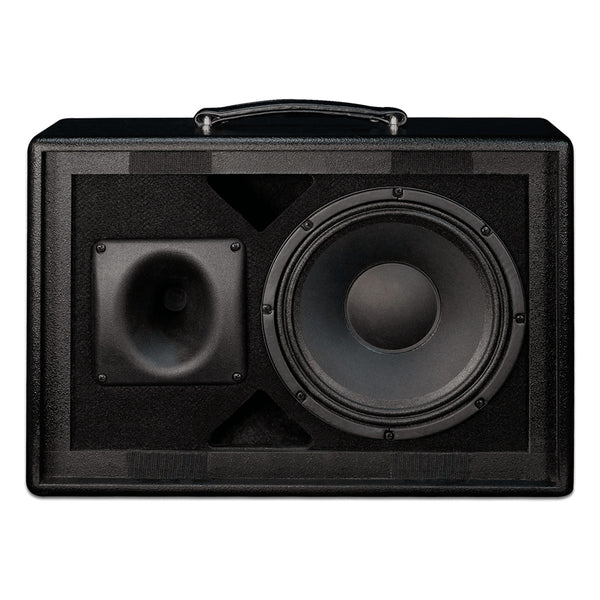

Pick the ASM-10 if you want a tilt-back wedge at your feet instead. The ASC-12 moves up to a 12-inch Celestion and a compression driver with a 1.75″ voice coil, at 59 lbs.

SPECIFICATIONS

AMPLIFIER
Country of Origin: United States
Configuration: 10″ 2-Way Active Stage Monitor for use with modelers/profilers
Assembly: Made in USA using premium worldwide components
Power Output: LF: 270Wrms Class G / HF: 80Wrms Class AB+B
Maximum Total Burst Power: 500W
Electronic Crossover: 4th order
Cooling: Convection
Amplifier Protection: Short circuit, Clip-limiter, Overheat mute, SOA output stage, Driver DC protection, Subsonic filter, Turn-on mute and soft ramp, Turn-on inrush current limiting

SPEAKERS
Low Frequency Transducer: Celestion 10″ TF1025E woofer
High Frequency Transducer: Celestion PETP film compression driver with 1″ voice coil
High Frequency Dispersion: Optical Wave Guide
Frequency Range: 50Hz - 20kHz
Frequency Response: 58Hz - 18kHz
Maximum Peak SPL: 129dB

CONTROLS
Controls: Level knob, Low-cut filter switch, Ground lift switch
Low Cut Filter (switchable): 3rd order Butterworth @ 100Hz
Indicators: Power, Protect

CONNECTIONS
Connectors: Balanced 1/4″ input / Balanced male XLR link output
Input Impedance: 20k Ohm Balanced / 10k Ohm Unbalanced
Input Sensitivity: 775mV (0dBu)

POWER
Power switch, AC fuse, 115/230V switch
Power Consumption: 1.7A/0.85A 115Vac/230Vac
Power Consumption (1/8 power pink noise): 150VA

CABINET
Enclosure: Black Texture painted, Baltic birch plywood construction
Hardware: Strap handle, Rubber feet / Rubber Strips

DIMENSIONS
Weight: 34 lbs.
