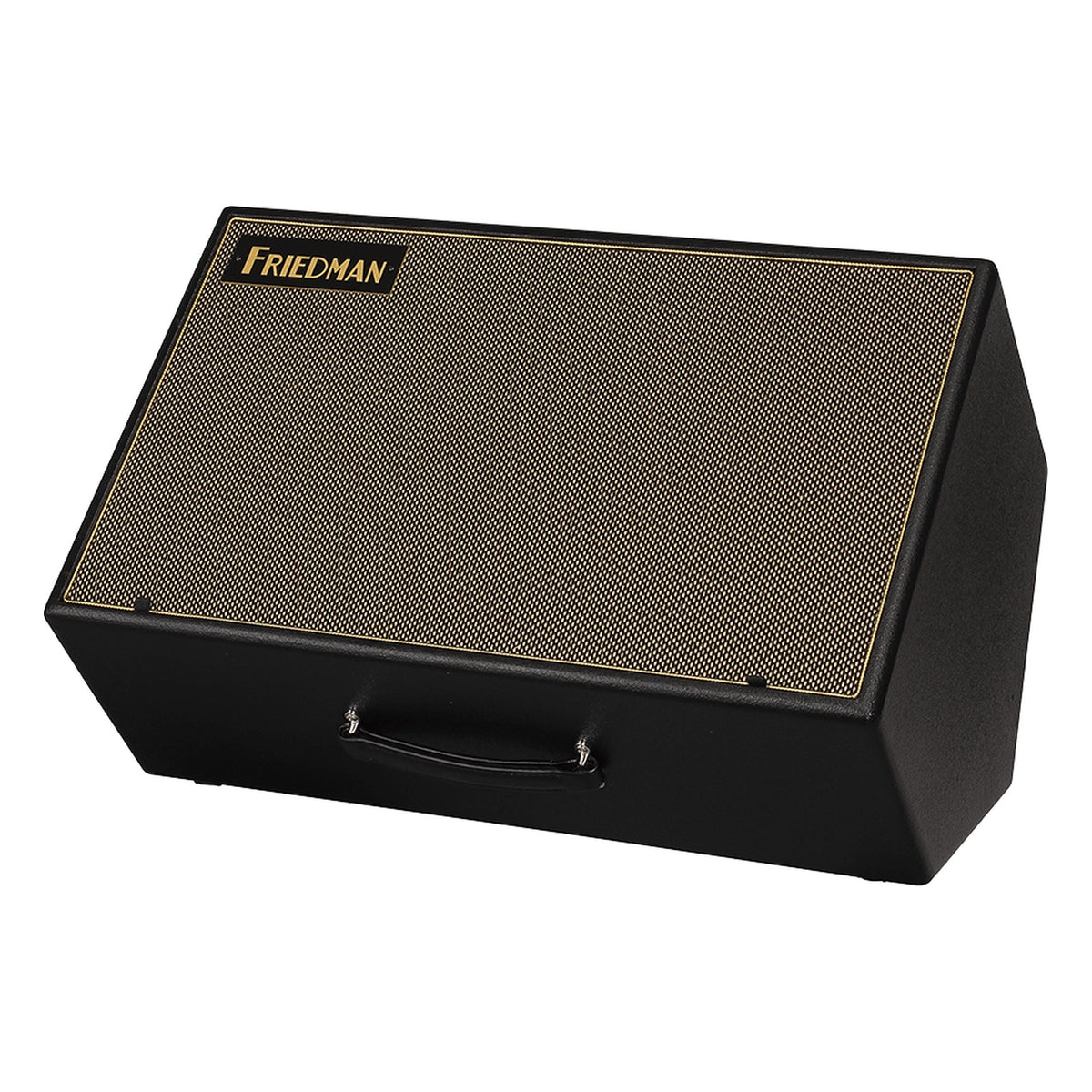

Friedman ASM-12 Active Stage Monitor

Name: Friedman ASM-12 Active Stage Monitor
Brand: Friedman
Price: 1999.0 CAD
Availability: BackOrder

Pre-orderFriedman part FRD-ASM-12

4.8★ average Google rating

$1,999 CAD

Finish: Black Tolex

By placing a pre-order you agree to our Pre-order Terms.

Time of arrival for special orders varies by product.
It can be anywhere from two weeks up to several months. After you order, we check with the supplier and email you an ETA. Want an estimate before you order?

Ordered in for you
Set up free
Shipped insured from Ottawa
Free shipping over $200

Got a question about this one?

We love talking guitars.

Email usshop@lauzonmusic.com Call the shop613-725-1116

Our take

Who this one is for

The ASM-12 is Friedman's 12-inch active monitor for modeler and profiler rigs: a Celestion 12″ speaker with a 2.5″ edge wound voice coil and a Celestion PETP film compression driver with a 1.75″ voice coil, powered by a bi-amped Class G amp rated at 500 watts maximum burst. Friedman voiced it for units such as the Fractal Audio Axe-Fx, Kemper Profiler and Line 6 HD Series.

It works on the floor as a tilt-back wedge, or on a 1 1/2″ speaker stand through its pole mounting cup, and Friedman pitches it for backline, stage monitoring or as a main PA speaker. A link output feeds more speakers, and the controls are a level knob, a low-cut filter switch and a ground lift. The cabinet is hand crafted in the USA from Baltic birch, with a detachable black grille.

Against the ASM-10 it has the bigger speaker and driver and 75° conical dispersion, at 56 lbs. The ASC-12 is the same 12-inch package styled as a traditional backline cab.

SPECIFICATIONS

AMPLIFIER
Country of Origin: United States
Configuration: 12″ 2-Way Active Stage Monitor for use with modelers/profilers
Assembly: Made in USA using premium worldwide components
Power Output: LF: 270Wrms Class G / HF: 80Wrms Class AB+B
Maximum Total Burst Power: 500W
Electronic Crossover: 4th order
Cooling: Convection
Amplifier Protection: Short circuit, Clip-limiter, Overheat mute, SOA output stage, Driver DC protection, Subsonic filter, Turn-on mute and soft ramp, Turn-on inrush current limiting

SPEAKERS
Low Frequency Transducer: Celestion 12″ speaker with 2.5″ edge wound voice coil
High Frequency Transducer: Celestion PETP film compression driver with 1.75″ voice coil
High Frequency Dispersion: 75° conical
Frequency Range: 50Hz - 20kHz
Frequency Response: 58Hz - 18kHz
Maximum Peak SPL: 129dB

CONTROLS
Controls: Level knob, Low-cut filter switch, Ground lift switch
Low Cut Filter (switchable): 3rd order Butterworth @ 100Hz
Indicators: Power, Protect, Limit, Signal

CONNECTIONS
Connectors: Balanced female XLR input / Balanced male XLR link output
Input Impedance: 20k Ohm Balanced / 10k Ohm Unbalanced
Input Sensitivity: 775mV (0dBu)

POWER
Power switch, AC fuse, 115/230V switch
Power Consumption: 1.7A/0.85A 115Vac/230Vac
Power Consumption (1/8 power pink noise): 150VA

CABINET
Design: Tilt-back floor monitor
Enclosure: Black Warnex® painted, Baltic birch plywood construction
Hardware: Strap handle, Rubber feet / Rubber Strips, Pole mounting cup, Detachable black grille

DIMENSIONS
Dimensions: 673mm x 419mm x 406mm
Weight: 56 lbs.
