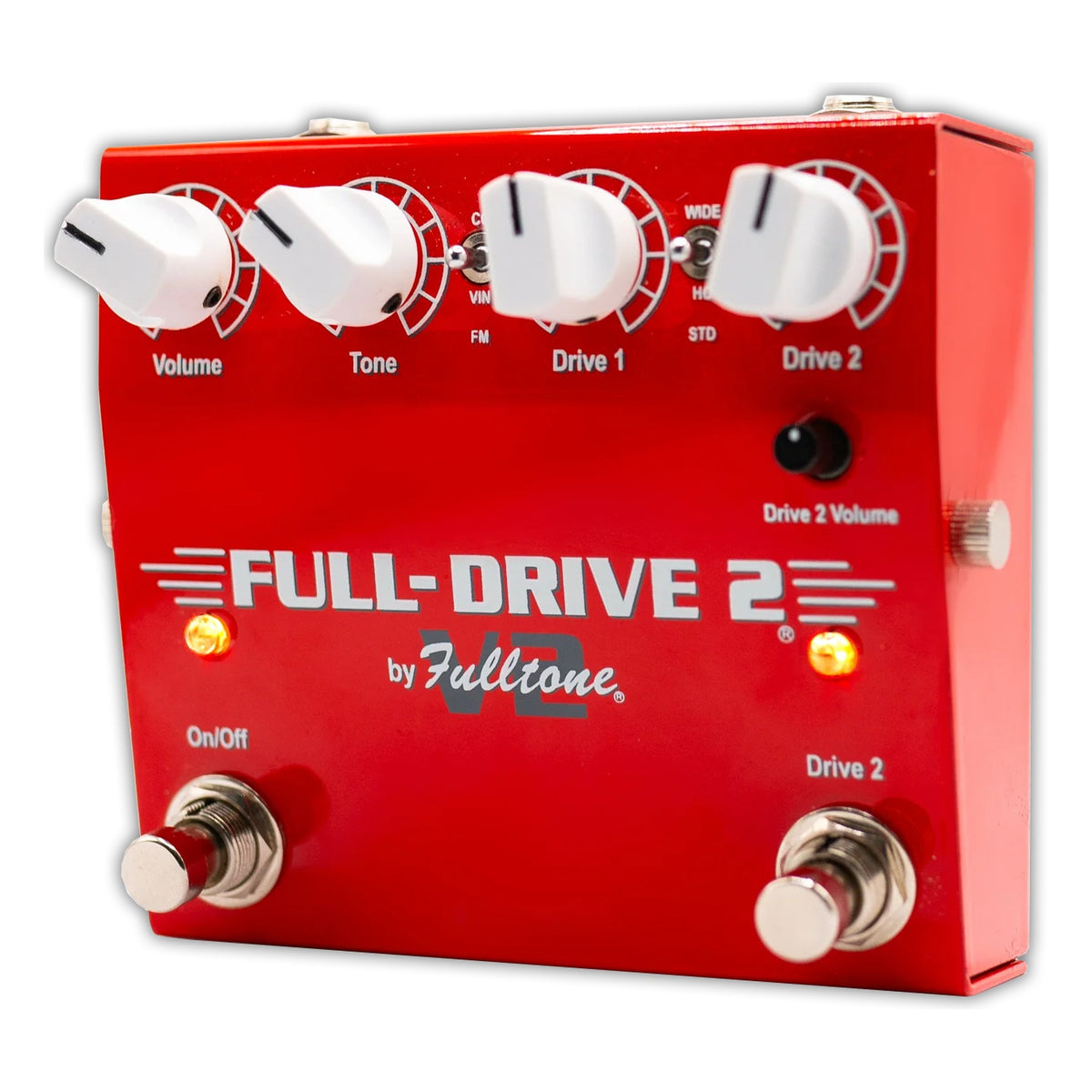

Two footswitchable overdrive voices built around a JRC4558 chip and the 1990s Full-Drive circuit. The second footswitch adds more drive and its own volume on top of the first, so one pedal covers rhythm crunch and a louder lead. Two three-way toggles change the clipping, including a half-clipped mode that keeps notes clear and touch-sensitive.
SPECIFICATIONS
Controls
Knobs: Volume, Tone, Drive 1, Drive 2, Drive 2 Volume (mini knob)
Left toggle: Comp-Cut, Flat Mids, Vintage
Right toggle: Wide, Standard, Half-Clipped
Features
Chip: JRC4558
Footswitches: on/off (true bypass with anti-pop circuit) and Drive 2
Enclosure: 16-gauge cold-rolled steel, thumbscrew battery access
Build: made in the USA
Power
Voltage: 9 to 18V DC
Current draw: 10mA
Dimensions
Size: 4.45" W x 4.2" D x 2.5" H
