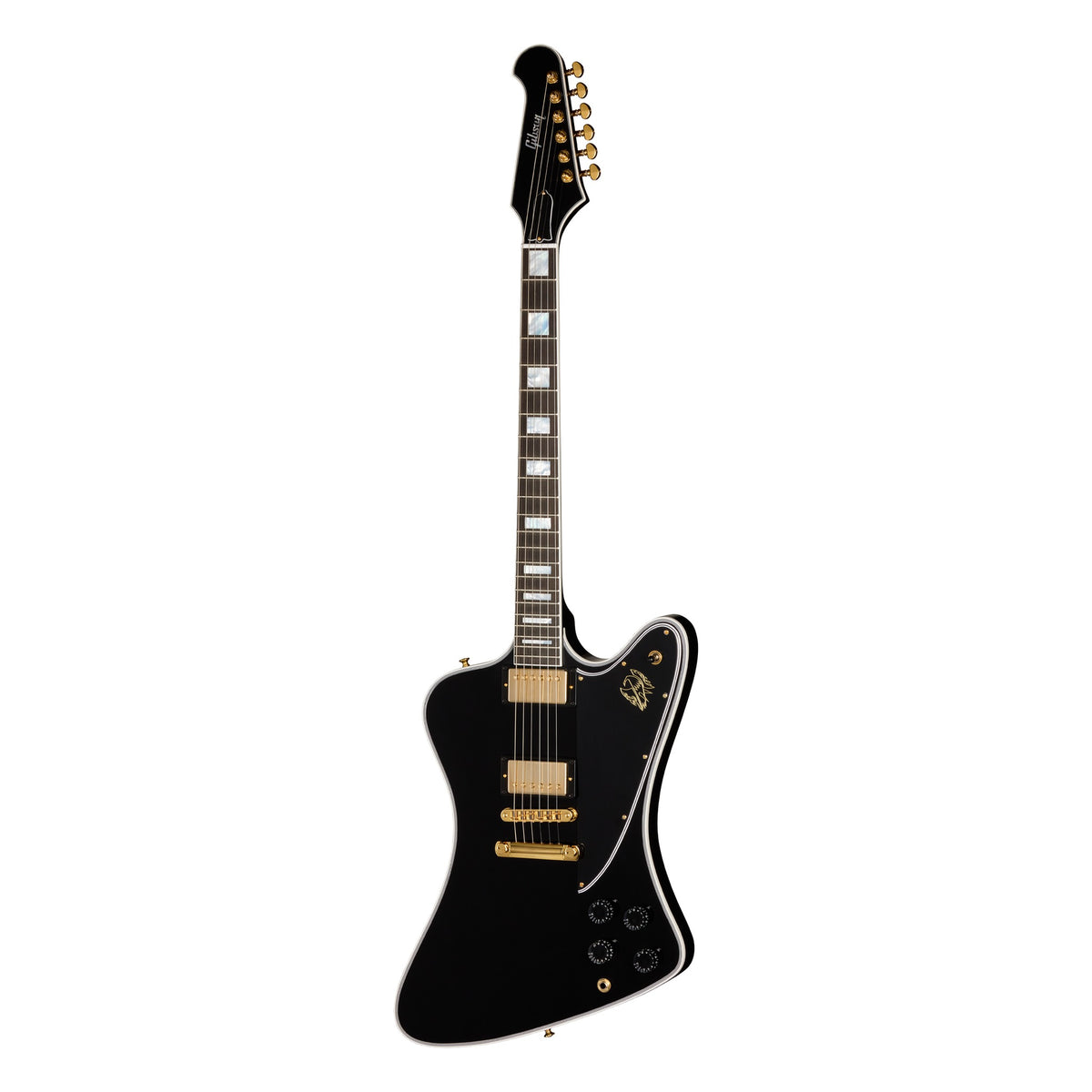

The Firebird Custom in ebony with a three-ply bound headstock. Ray Dietrich's 1963 shape on a mahogany body with multi-ply binding, a medium C mahogany neck on an ebony board with mother-of-pearl blocks, and gold hardware.
A 490R and 498T humbucker pair with 500K CTS pots, a Tune-O-Matic, stop bar and Grover kidney-button tuners. Gloss nitro.
SPECIFICATIONS
BODY
Country of Origin: USA
Binding: Multi-ply
Body Finish: Gloss Nitrocellulose Lacquer
Body Material: Solid Mahogany
Body Shape: Firebird
Weight Relief: None
NECK
End Of Board Width: 56.89mm / 2.24in
Fingerboard Material: Ebony
Fingerboard Radius: 12 in. | 304.8 mm
Fret Count: 22
Frets: Medium-Jumbo
Inlays: Mother of Pearl Block
Joint: Long Tenon
Neck Material: Solid Mahogany
Nut Material: Corian
Nut Width: 42.85mm / 1.69in
Profile: Medium C
Scale Length: 628.65mm / 24.75in
ELECTRONICS
Bridge Pickup: 498T
Controls: 2 500K CTS Volume Pots, 2 500K CTS Tone Pots
Neck Pickup: 490R
Output Jack: Switchcraft
Pickup Selector: 3-Way Switchcraft
HARDWARE
Bridge: Tune-O-Matic
Control Knobs: Black Speed Knobs
Hardware Finish: Gold
Mounting Rings: Black M69
Pickguard: Black Multi-Ply
Pickup Covers: Gold
Strap Buttons: Brass
Switch Tip: Black
Tailpiece: Stop Bar
Truss Rod: 2-way Adjustable
Truss Rod Cover: 2-Ply Black/White
Tuner Plating: Gold
Tuning Machines: Grover Kidney
Accessories: Certificate of Authenticity Booklet
Strings Gauge: .010, .013, .017, .026, .036, .046
CASE
Case: Custom Shop Hardshell
