The ES-330 looks like an ES-335 but is fully hollow, with no centre block, and its neck is deep-set into the body. Gibson credits the hollow body, the trapeze tailpiece and that neck joint for its warm, resonant sound, and it is lighter than a 335. It is a close cousin of the Epiphone Casino.

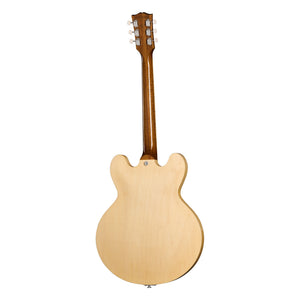

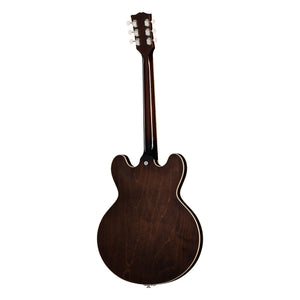

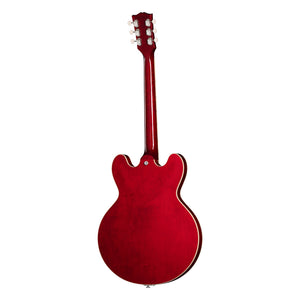

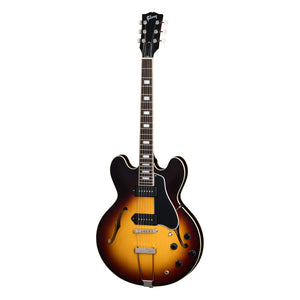

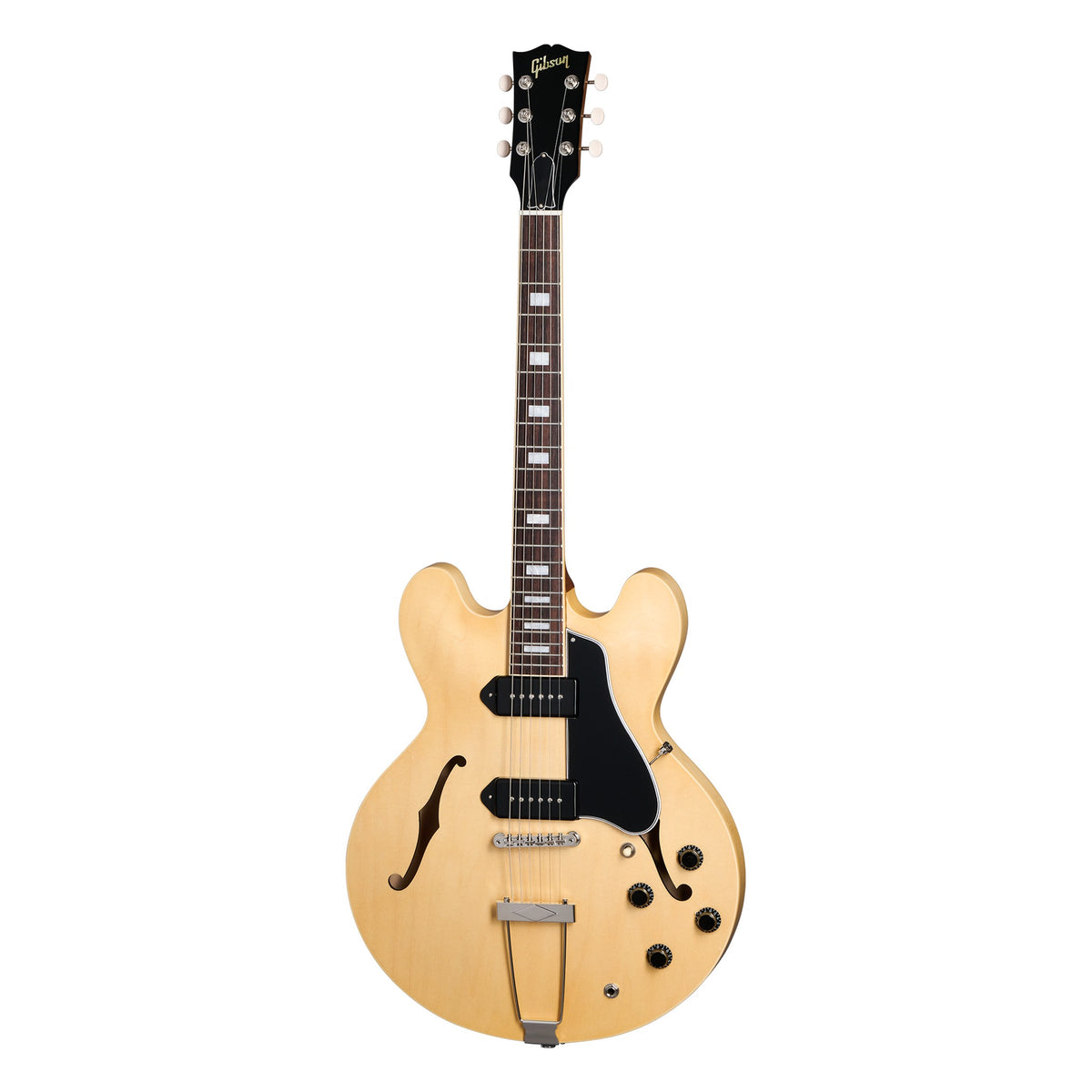

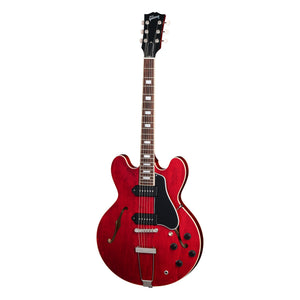

Two dogear P-90s, two volumes and two tones hand-wired with 500K pots and Orange Drop capacitors, an ABR-1 bridge and a trapeze tailpiece. Rounded C mahogany neck on a rosewood board with small block inlays. Antique Natural, Sixties Cherry and Tobacco Sunburst.
SPECIFICATIONS
BODY
Country of Origin: USA
Back: 3-ply Maple/Poplar/Maple
Binding: Single-ply Cream, Top, Back, and Fretboard
Body Finish: Gloss Nitrocellulose Lacquer
Body Material: 3-ply Maple/Poplar/Maple
Body Shape: ES-335
Body Styles: ES
Bracing: Spruce
Centerblock: None
Side: 3-ply Maple/Poplar/Maple
Top: 3-ply Maple/Poplar/Maple
NECK
End Of Board Width: 57.4mm / 2.26in
Fingerboard Material: Indian Rosewood
Fingerboard Radius: 12 in. | 304.8 mm
Fret Count: 22
Frets: Medium Jumbo
Inlays: Acrylic Small Block
Joint: Glued In, Set Neck
Neck Material: Mahogany
Nut Material: Graph Tech
Nut Width: 43.05mm / 1.7in
Profile: Rounded C
Scale Length: 628.65mm / 24.75in
ELECTRONICS
Bridge Pickup: Dogear P-90
Controls: 2 Volume, 2 Tone; Hand-wired with 500k Potentiometers and Orange Drop Capacitors
Neck Pickup: Dogear P-90
Output Jack: 1/4"
Pickup Selector: 3-way Toggle
HARDWARE
Bridge: ABR-1 Tune-O-Matic
Control Knobs: Black Top Hat
Hardware Finish: Nickel
Pickguard: Black 5-ply
Strap Buttons: 2
Switch Tip: Cream
Tailpiece: Trapeze
Truss Rod: Adjustable
Tuning Machines: Vintage Deluxe with White Button
Accessories: Includes Gibson Accessory Kit
Strings Gauge: .010, .013, .017, .026, .036, .046
CASE
Case: Hardshell
