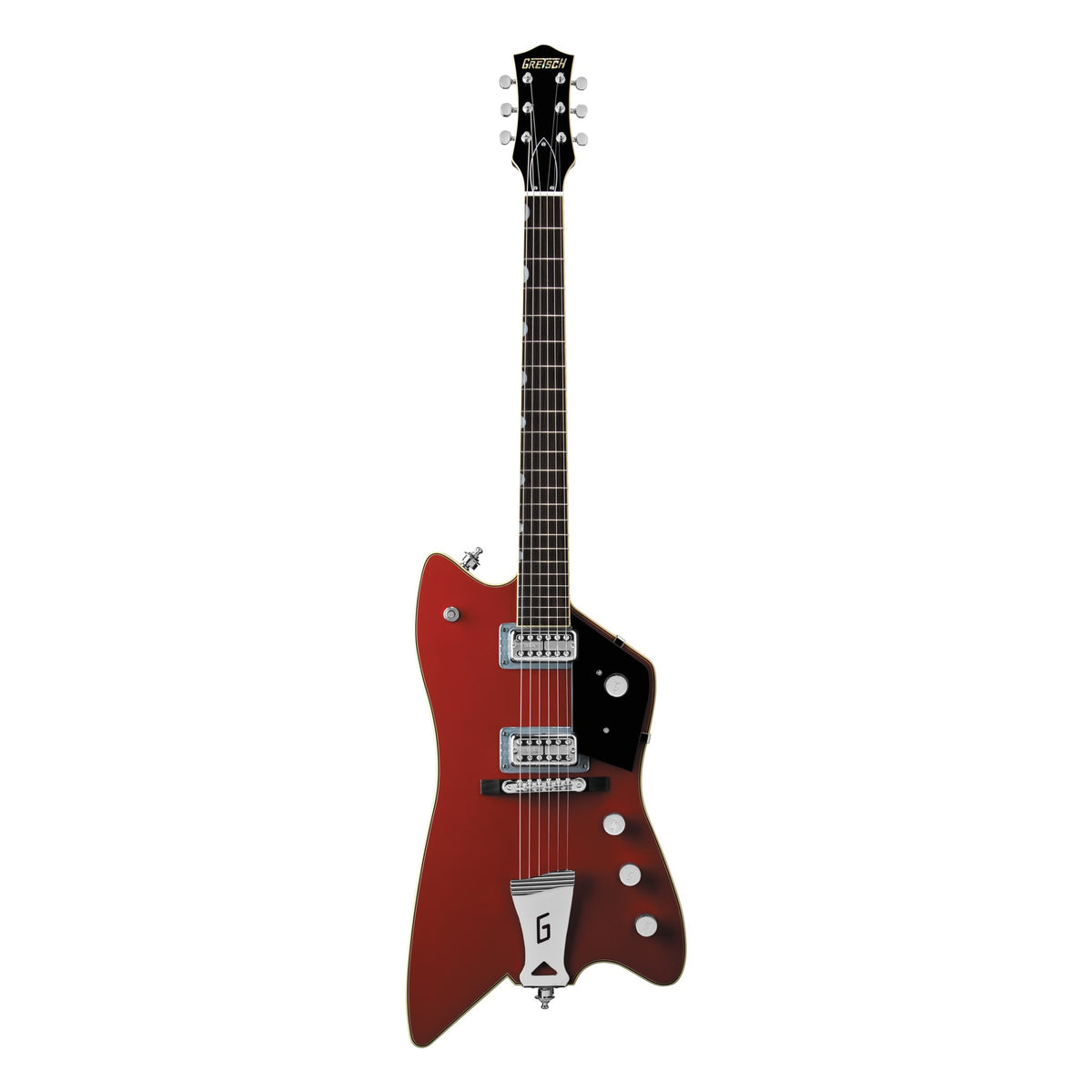

The Billy-Bo is a collaboration between Billy F Gibbons and Bo Diddley, based on a body shape Bo Diddley designed in 1959. The body is laminated maple in Firebird Red with chrome hardware and a black pickguard, and the electronics are TV Jones: a Power'Tron Plus at the bridge and a Power'Tron at the neck, with a volume for each and a master tone.
The mahogany neck carries a 12" rosewood board with 22 vintage small frets and pearloid thumbnail inlays on a 24.6" scale. The bridge is an Adjusto-Matic on a pinned ebony base.

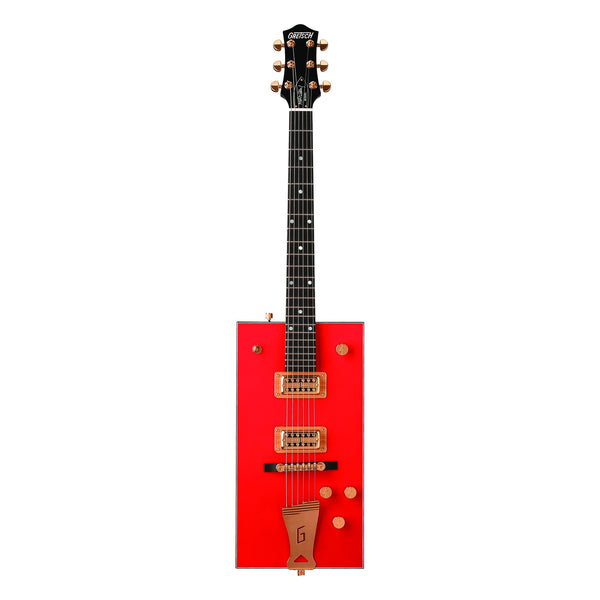

For the other Bo Diddley shape in this catalogue, the G6138 Bo Diddley has High Sensitive Filter'Tron pickups, an ebony board and a 25.5" scale, also in Firebird Red.
SPECIFICATIONS
BODY
Country of Origin: Japan
Body Material: Laminated Maple
Body Finish: Gloss Urethane
Body Shape: Billy-Bo
Pickguard: 1-Ply Black
NECK
Neck Material: Mahogany
Neck Finish: Gloss Urethane
Fingerboard Radius: 12" (305 mm)
Fingerboard Material: Rosewood
Position Inlays: Pearloid Neo-Classic Thumbnail
Number of Frets: 22
Fret Size: Vintage Small
Nut Material: Synthetic Bone
Nut Width: 1.6875" (42.86 mm)
Scale Length: 24.6" (625 mm)
ELECTRONICS
Bridge Pickup: TV Jones Power'Tron Plus
Neck Pickup: TV Jones Power'Tron
Controls: Volume 1. (Neck Pickup), Volume 2. (Bridge Pickup), Tone
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
HARDWARE
Bridge: Adjusto-Matic with Pinned Ebony Base
Hardware Finish: Chrome
Tuning Machines: Grover Sta-Tite Die-Cast
Control Knobs: G-Arrow
Strap Buttons: Gretsch Knurled Strap Retainer Knobs
Strings: Nickel Plated Steel (.011-.049 Gauges)
CASE
Case: Included G6281 Gretsch Billy Bo Jupiter/Thunderbird Hardshell (p/n 099-6464-000)
