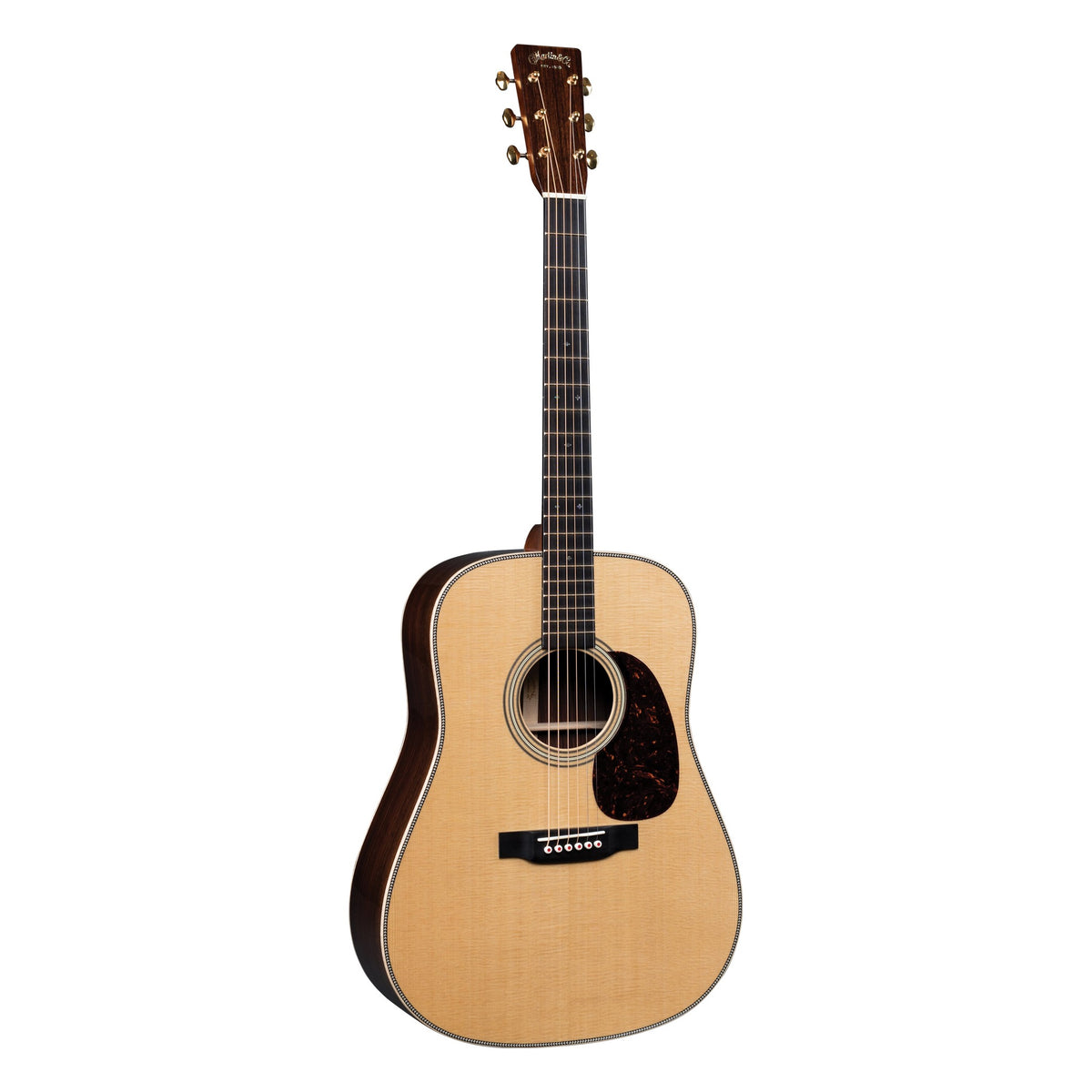

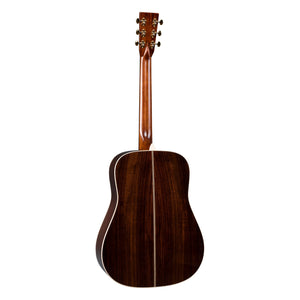

This is the D-28 Modern Deluxe with a Fishman Aura VT Blend installed. The top is European Red Spruce w/ VTS over East Indian rosewood back and sides, braced with GE-scalloped Adirondack spruce with VTS in the Forward-Shifted X-Brace pattern.
The neck is the asymmetrical Vintage Deluxe with the High-Performance Taper and a 1 3/4" nut, on ebony with Diamonds and Squares Long abalone inlays. Liquidmetal bridge pins with red acrylic dots, a compensated White TUSQ saddle, Waverly Gold Open Gear tuners, European flamed maple binding and heelcap and a 1933 CFM Script Inlay logo finish the build.
It suits a player who wants this guitar on stage. For the acoustic version with a compensated bone saddle, see the D-28 Modern Deluxe without electronics. For genuine mahogany with the same pickup, the electric D-18 Modern Deluxe.
SPECIFICATIONS
BODY
Country of Origin: USA (Nazareth, Pennsylvania)
Body Size: D-14 Fret
Construction: Dovetail Neck Joint
Back Material: East Indian Rosewood
Side Material: East Indian Rosewood
Back and Sides Finish: Gloss
Back Purfling/Strip: Zig-Zag Authentic
Back Inlay Material: Multi-Stripe
Bracing Pattern: Forward-Shifted X-Brace
Brace Shape: GE-Scalloped
Brace Material: Adirondack Spruce with VTS
Brace Size: 5/16"
Top Material: European Red Spruce w/ VTS
Finish Top: Gloss
Top Color: Clear
Top Inlay Material: Bold Herringbone
Binding: European Flamed Maple
Pickguard: Tortoise Pattern
Rosette: Style 28 Multi-Stripe
NECK
Neck Shape: Vintage Deluxe
Neck Taper: High-Performance Taper
Neck Material: Select Mahogany
Neck Color: Dark Mahogany
Finish Neck: Satin
Scale Length: 25.4"
Number of Frets Total: 20
Neck Joins Body At: 14th Fret
Heelcap: European Flamed Maple
Fingerboard Material: Ebony
Fingerboard Width at 12th Fret: 2 1/8''
Fingerboard Width at Nut: 1 3/4''
Fingerboard Inlay Style: Diamonds and Squares Long Pattern
Fingerboard Inlay Material: Abalone
Side Dots: Abalone
Headstock Shape: Solid with Square Taper and Diamond
Headplate Material: East Indian Rosewood
Headplate Logo Style: 1933 CFM Script Inlay
Pleked: Yes
ELECTRONICS
Electronics: Fishman Aura VT Blend
HARDWARE
Bridge Material: Ebony
Bridge Style: Modern Belly - Drop in Saddle
Bridge String Spacing: 2 5/32"
Bridge Pin Material: Liquidmetal®
Bridge Pin Dots: Red Acrylic
Saddle: Compensated White TUSQ®
Saddle Radius: 16"
Tuning Machines: Waverly® Gold Open Gear
Knob: Butterbean
Nut Material: Bone
CASE
Case: Ply Hardshell
