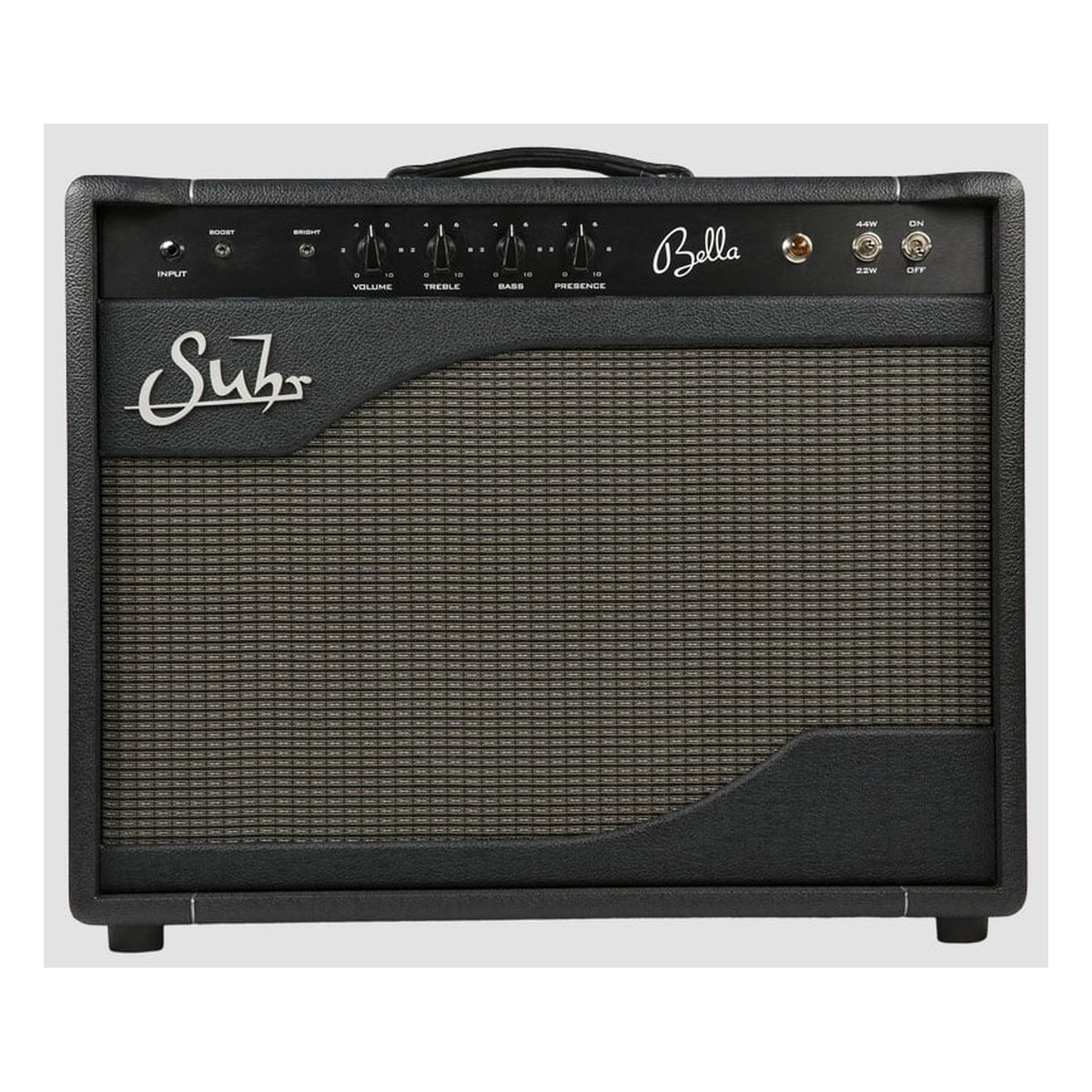

Bella is Suhr's American-voiced, hand-wired all-tube amp, laid out to sit behind a pedalboard, and this is the 1x12 combo with a Celestion V-Type. Two 6L6GC power tubes run Class A/B at 44 or 22 watts from the front panel: 44 gives the most clean headroom, 22 breaks up sooner and at lower volume.
A two-position Boost adds +6dB at the first gain stage, from the panel or a footswitch (sold separately). The three-position Bright switch runs from out of circuit, to a modest lift, to a fully open top end. The all-tube series loop has its own send and return levels for pedals or line level rack gear. Each one is hand wired and tested in Lake Elsinore, California.
The Bella Head is the same amp at 35lbs against the combo's 51lbs, with the speaker left to you, and the Bella 1x12 Cabinet is its match. The combo is the one we would point to as a single amp for everything, complete in one box. The head suits a player who already owns a cabinet.
SPECIFICATIONS
AMPLIFIER
Country of Origin: United States
Configuration: 1x12 Combo
Construction: 100% Handwired
Output: Switchable 44/22 Watts RMS
Power Section: Class A/B
Reverb: No
Effects Loop: Tube driven, buffered, with independent send and return levels.
TUBES
Preamp Tubes: 3x 12AX7
Power Tubes: 2x 6L6GC
CONTROLS
Front Panel: Input, Boost Switch (2-Position), Bright Switch (3-Position), Volume, Treble, Bass, and Presence, Standby/Wattage Selector Switch, and On/Off Power Switch
CONNECTIONS
Back Panel: Mains Input Inlet, Mains Fuse, H.T. Fuse, Speaker Impedance Selector: (2Ω, 4Ω, & 8Ω), 2-External Speaker Outputs, Effects Loop Return Level, Return and Send Jacks, Send Level, In/Out Switch and Boost Footswitch Jack
Footswitch: Sold separately
SPEAKERS
Speaker: Celestion V-Type (60 Watts)
DIMENSIONS
Dimensions: 24" (W) x 9.90" (D) x 19.50" (H)
Weight: 51lbs
