Pre-order

Suhr Discovery Analog Delay

Name: Suhr Discovery Analog Delay
Brand: Suhr
Price: 829.0 CAD
Availability: BackOrder

Pre-orderSuhr part 03-DAD-0002

4.8★ average Google rating

$829 CAD

Finish: Standard

Power Supply: Universal power supply included

By placing a pre-order you agree to our Pre-order Terms.

Time of arrival for special orders varies by product.
It can be anywhere from two weeks up to several months. After you order, we check with the supplier and email you an ETA. Want an estimate before you order?

Ordered in for you
Set up free
Shipped insured from Ottawa
Free shipping over $200

In the shop right now Suhr Discovery Analog Delay. $779, ready to ship. See this one

Got a question about this one?

We love talking guitars.

Email usshop@lauzonmusic.com Call the shop613-725-1116

Our take

Who this one is for

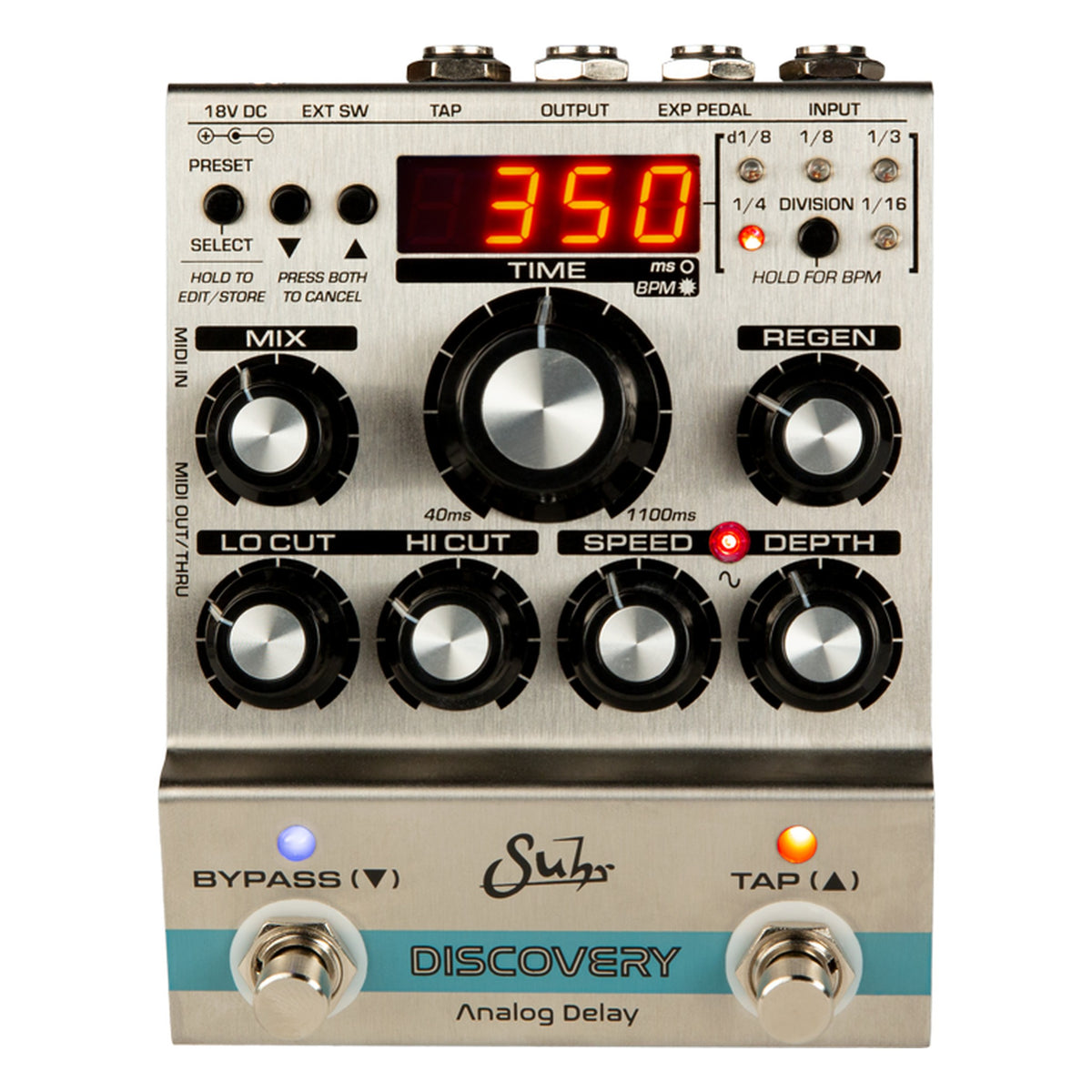

The Discovery is an all-analog delay designed by Kevin Suhr, built on four reissued MN3005 bucket-brigade chips, with digital control laid over the top. The repeats stay analog, while every setting can be stored in one of 127 presets and recalled from the footswitches.

Delay time runs from 40ms to 1100ms and stretches to 17ms-2000ms and beyond with the up/down and division buttons. Tap tempo averages your last four taps, with quarter, dotted-eighth, eighth-note triplet, eighth and sixteenth subdivisions. Lo-Cut and Hi-Cut knobs set where the repeats sit, from thick and full to a thin, dub-style echo, and the modulation section adds speed, depth and a choice of triangle, sine or square waves. Every knob maps to an expression pedal with its own sweep, saved per preset, and 5-pin MIDI In and Out/Thru lets it send program changes to the rest of the board.

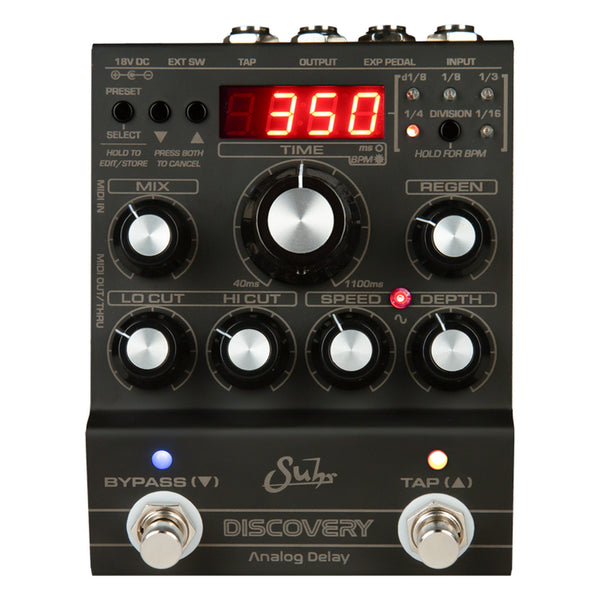

It comes two ways, with the universal power supply or as the pedal alone. The Dark Discovery is the same circuit in a black Cerakote finish.

SPECIFICATIONS

FEATURES
Country of Origin: United States
Assembly: Assembled in the USA
Circuit: Four re-issued MN3005 bucket-brigade analog-delay chips
Presets: 127 programmable presets
Delay Time: 40ms-1100ms, expandable to 17ms-2000ms & beyond with up/down & division buttons
Subdivisions: Quarter, dotted-eighth, eighth note triplet, eighth note, sixteenth note
Display: 7-segment display for BPM, milliseconds or preset number
Tap Tempo: Smart Tap-Tempo, averages your last four taps
Bypass: Switchable true-bypass or buffered-bypass
Limiter: Soft clipping limiter for infinite feedback and oscillations
Kill Dry: Kill dry mode for parallel effects loops
Control: Fully programmable digital-control

CONTROLS
Filter: High & Lo Cut controls
Modulation: Speed & depth controls
Modulation Waveforms: Triangle, Sine, Square
Expression: Every knob mappable to an expression pedal, custom mapping savable to each preset

CONNECTIONS
MIDI: 5-pin MIDI In & Out/Thru
MIDI Control: Every parameter can be controlled by MIDI; sends patch changes to other MIDI devices
Preset Backup: Save all presets to a SysEx file
Expression Pedal: Yes

POWER
Power Supply: 18V DC
Included: Universal power supply, or no power supply (pedal only), depending on version

Bench inspected

Every instrument crosses our bench before it ships, and on an online order that setup is free. It can cover the frets, hardware, truss rod, action, nut slots, intonation, pickup heights and electronics, whatever the guitar needs.

Shipped insured

Free insured shipping in Canada on orders over $200.

Financing

Pay in full and you can spread the cost with PayPlan by RBC or Shop Pay Installments, with the exact terms shown at checkout. Financing never changes the price of the guitar. How financing works

Authorized dealer

Full manufacturer warranty on every new instrument.

Three generations

In the family since 1945, with a player answering your questions before and after you order.

Pre-orders

Questions we get

How much do I pay today?

Your choice: the full price, or a 25% deposit. On a deposit, the balance is due when the guitar reaches the shop, before it ships to you. A deposit is paid by card or PayPal. Shop Pay, Apple Pay and Google Pay can't take one.

When will it arrive?

It varies by product, anywhere from two weeks up to several months. If you'd like a date for this model first, ask us in the chat and we'll check with the supplier before you order. If you're ready now, go ahead: we confirm the ETA by email once your order is in, and if it changes, we let you know and you can cancel.

Can I cancel?

Yes, any time before the supplier invoices it and ships it to us. We refund what you paid less 3% to cover the card processing fee.

Once it has shipped to us it is a special order and final sale. If it arrives with something wrong, we put that right.

What if the price goes up before it arrives?

You pay the price you ordered at. Once your order is placed we hold that price, even if the supplier raises it before the guitar arrives.

Is the free setup included?

Yes. A pre-order is an online order, so it gets the same free setup: it crosses our bench before it ships, set up the way you choose. The setup menu above shows what that covers.

Do I pay duty or brokerage on a US order?

No. Duty, taxes, brokerage and customs on a US order are handled at our end before the instrument leaves Ottawa. It arrives at your door with nothing to pay.

Orders going anywhere outside Canada and the United States work differently. The shipping and returns policy sets out which is which.

Can I finance it?

Yes, if you are in Canada and paying in full. Pick PayPlan by RBC or Shop Pay Installments as your payment method at checkout. The plan, the rate and the approval sit with the provider, and you see the terms before you agree to anything. You pay a deposit by card or PayPal.
