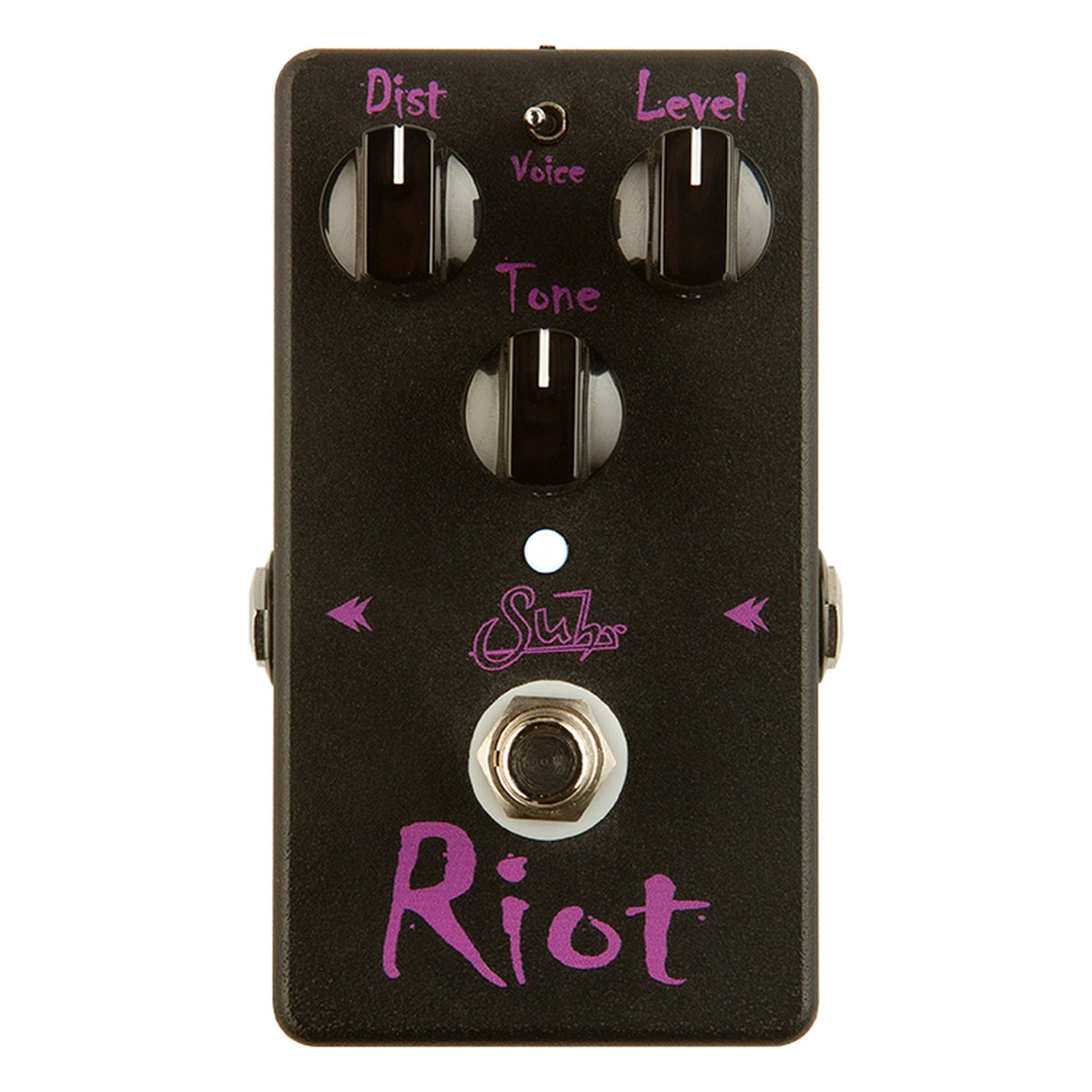

The Riot is Suhr's high-gain distortion, voiced and made to respond like a good 100-watt tube amp, and built to turn a clean amp into a rock rhythm sound. Suhr states the circuit and tone are identical to the original Riot.
Dist, Level and Tone are joined by a three-way voicing switch. Left keeps it natural and responsive to the guitar's volume knob, middle moves into high gain with a solid midrange and tight low end, and right gives a vintage high-gain response with clear definition. There is enough Level on tap to drive a tube amp's front end as well. True bypass runs through a relay, which Suhr notes pops less when switching, and the FX Link jack lets a loop switcher turn it on and off.

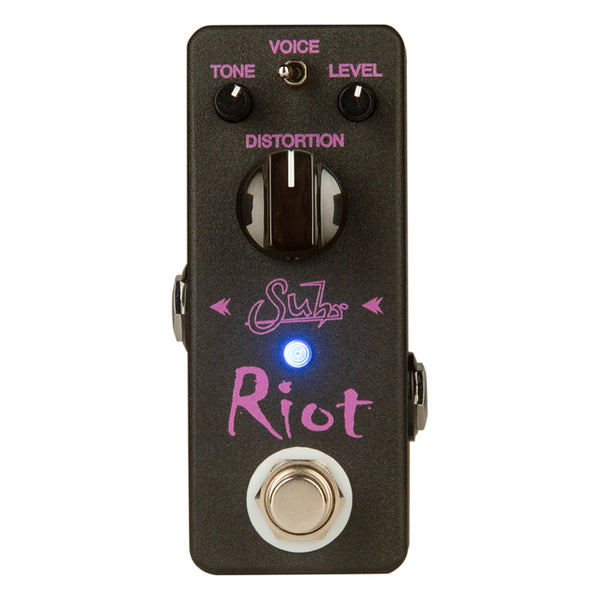

For the Riot sound on a smaller footprint with a two-way voicing switch, look at the Riot Mini Black Edition. For two independent drive channels, the Eclipse Black Edition.
SPECIFICATIONS
FEATURES
Country of Origin: United States
Type: Distortion
Bypass: True Bypass via a relay
Low Battery Monitor: Yes, switches the pedal to True Bypass when battery voltage is too low
CONTROLS
DIST: Amount of gain
LEVEL: Output of the pedal
TONE: Overall tonal response
Voicing Switch: Left (natural, responds to guitar volume), Middle (high gain, solid midrange, tight bottom end), Right (vintage high gain)
CONNECTIONS
Input Impedance: 1M ohm
Output Impedance: 600 ohm
FX Link Connector: 1/8" Mono
FX Link Max Voltage: 3.3Vdc
Shield → Tip: Activate Pedal
POWER
Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
Operating Voltage: 4V to 18V (nominal 9V)
Maximum Voltage: 20Vdc
Current Consumption: 8mA
Reverse Battery Protection: Yes
Over Voltage Protection: Yes
Estimated Battery Life: 75 - 100 hours of continuous use
ROHS Compliant: Yes
DIMENSIONS
Dimensions: 2.5"(W) x 4.5"(D) x 1.25"(H)
Weight: 0.6lb
