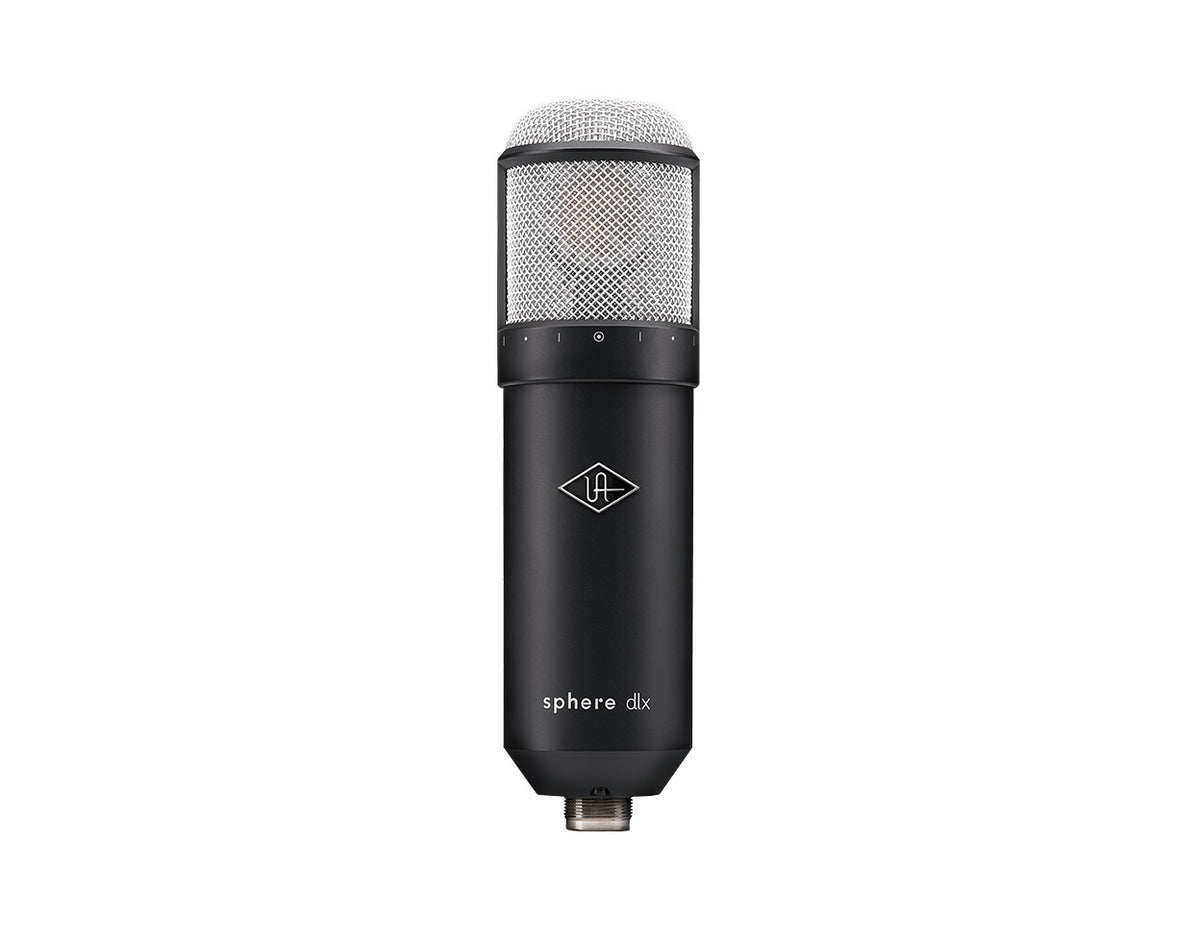

The Sphere DLX is Universal Audio's modelling microphone: a large-diaphragm condenser with dual gold-sputtered diaphragms that records through the included Sphere Mic Collection plug-in, which carries 38 modelled ribbon, condenser and dynamic mics.
Because the mic records both capsules, the model, the polar pattern and the off-axis character can all be changed after the take. Dual Mode blends any two models from the one microphone, and the dual-capsule design will capture a source in stereo. Auditioning works with any interface and DAW; on an Apollo it runs in realtime while you track.
It ships with the shockmount, a mic stand mount, the 25' dual-output cable and a carrying case.
SPECIFICATIONS
SPECS
Microphone Type: Modeling Condenser
Capsule: 1" Diameter Dual Diaphragm
Polar Pattern: Variable Dual Output
Frequency Range: 20 Hz – 20 kHz
Sensitivity: -33 dB (22 mV) ref 1V at 1 Pa, 1 kHz
Output Impedance: 200 Ohms
Recommended Load Impedance: > 1 K Ohms
Maximum SPL: 140 dB SPL, 1% THD (w/ pad)
Dynamic Range: 133 dB
Adjustable Controls: Pad: 20 dB
Phantom Power Requirements: 48 VDC, 5 mA typical
Connector: 5-Pin XLRM
Dimensions: 8.9" (225 mm) length, 2.5" (63 mm) diameter
Weight: 1.7 lbs (770 g)
IN THE BOX
Included Accessories: Shockmount, Mic Stand Mount, 25' Cable, Carrying Case
Included Software: Sphere Mic Collection and Sphere Mic Collection 180
