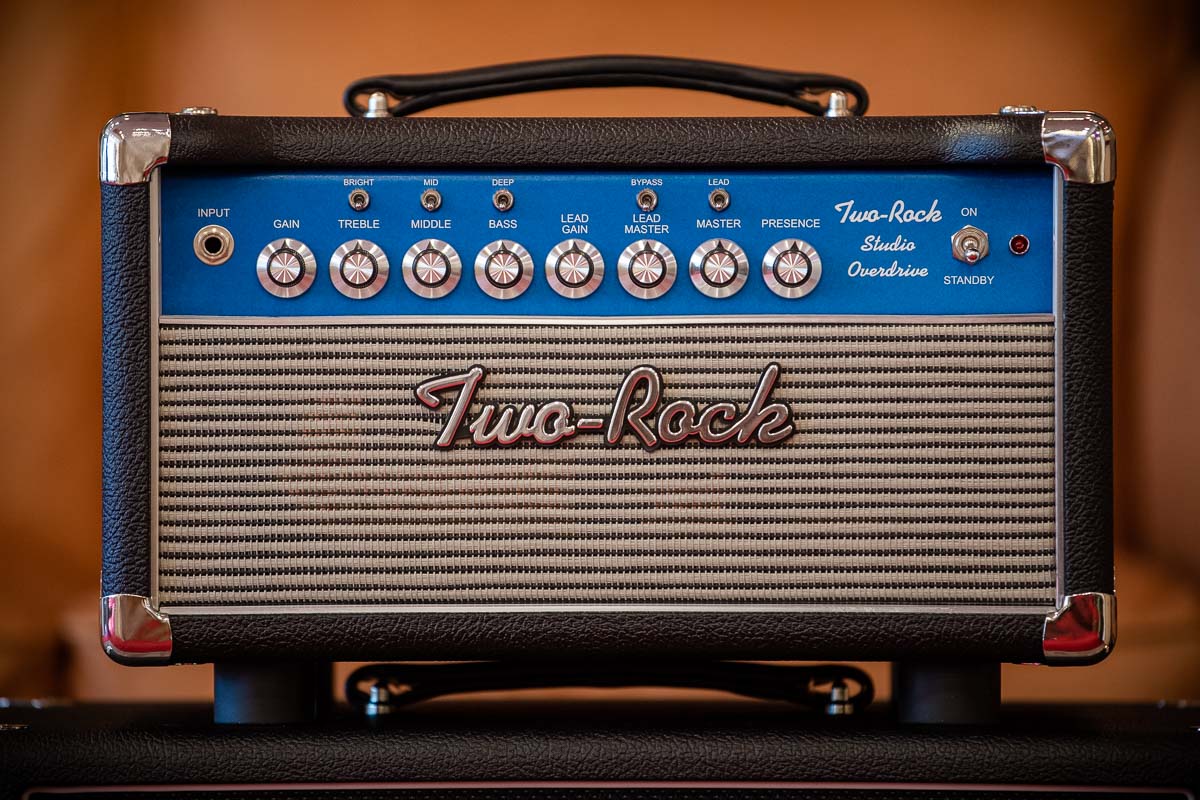

A blue Studio Overdrive head in black bronco, fronted with Bluesbreaker grille cloth and finished with metal corners.
The Studio Overdrive is Two-Rock's compact two-channel platform: 35 watts from a pair of 6L6s, independent master volumes on each channel, and the full tone stack on the front panel. As a head it weighs 26 lbs and sits a little over 15 inches wide, so a two-channel Two-Rock goes to the gig in one trip.
The panel runs Gain, Treble, Middle, Bass, Lead Gain, Lead Master, Master and Presence, with Bright, Mid and Deep mini-toggles over the EQ and Bypass and Lead over the masters. Bypass engages Two-Rock's newly designed Tone Stack Bypass EQ, an alternate voicing they built to tighten the response and bring the midrange forward for lead work. The lead channel and the bypass are both footswitchable from the two-button footswitch that comes with it.
Full tube-buffered effects loop with push-pull defeat, and speaker outputs at 4, 8 and 16 ohms.
SPECIFICATIONS
CHASSIS
Serial: #195
Chassis: Blue
Covering: Black bronco
Grille Cloth: Bluesbreaker
Trim: Metal corners
Head Dimensions: 15.625" W x 9.125" H x 10" D
Weight: 26 lbs
POWER
Amp Configuration: (2) 6L6, 35w power section
Channels: Two-channel overdrive design with independent master volumes
SPEAKERS
Speaker Outputs: 4 ohm, 8 ohm, 16 ohm
CONTROLS
Front Panel: Input, Gain, Treble, Middle, Bass, Lead Gain, Lead Master, Master, Presence, Standby
Switching: Bright, Mid, Deep, Bypass, Lead
EQ: Tone Stack Bypass EQ circuit
Effects Loop: Full tube-buffered effects loop with push-pull defeat
Footswitch: Included 2-button footswitch, lead channel and tone stack bypass
