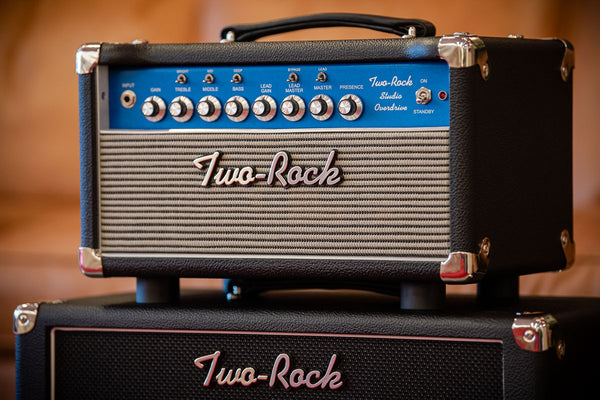

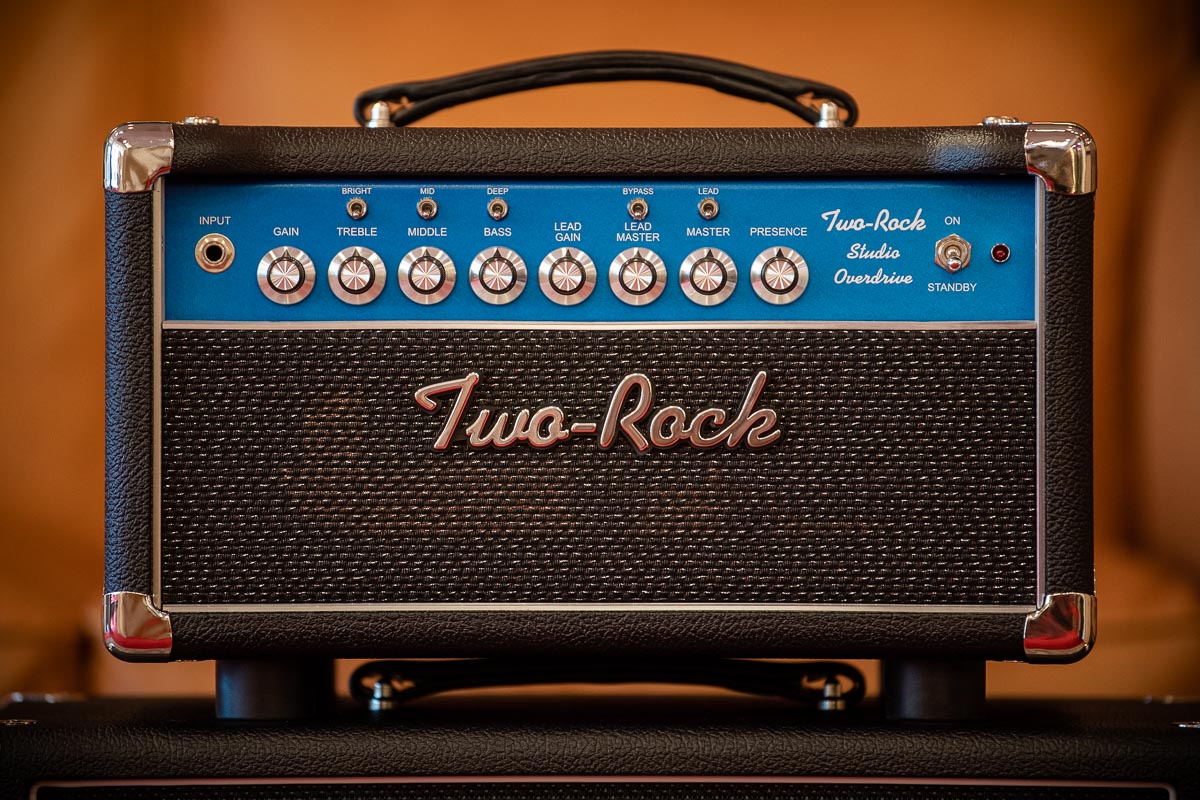

Blue panel over black bronco, with a black sparkle matrix grille and metal trim on the corners.
This is Two-Rock's Studio Overdrive in head form: two channels with their own master volumes, a pair of 6L6s making 35 watts, and the whole tone stack still on the front. It is 26 lbs and just over 15 inches wide, the size that lets a Two-Rock live on a small cab or ride along in the back seat.
Gain, Treble, Middle, Bass, Lead Gain, Lead Master, Master and Presence run across the panel. Bright, Mid and Deep mini-toggles sit over the EQ, and Bypass and Lead over the masters. The Bypass position is Two-Rock's newly designed Tone Stack Bypass EQ, voiced to tighten the response and push the midrange forward for leads. The included two-button footswitch handles the lead channel and the bypass.
There is a full tube-buffered effects loop with push-pull defeat, and speaker outputs at 4, 8 and 16 ohms.
SPECIFICATIONS
CHASSIS
Serial: #197
Chassis: Blue
Covering: Black bronco
Grille Cloth: Sparkle matrix
Trim: Metal corners
Head Dimensions: 15.625" W x 9.125" H x 10" D
Weight: 26 lbs
POWER
Amp Configuration: (2) 6L6, 35w power section
Channels: Two-channel overdrive design with independent master volumes
SPEAKERS
Speaker Outputs: 4 ohm, 8 ohm, 16 ohm
CONTROLS
Front Panel: Input, Gain, Treble, Middle, Bass, Lead Gain, Lead Master, Master, Presence, Standby
Switching: Bright, Mid, Deep, Bypass, Lead
EQ: Tone Stack Bypass EQ circuit
Effects Loop: Full tube-buffered effects loop with push-pull defeat
Footswitch: Included 2-button footswitch, lead channel and tone stack bypass
