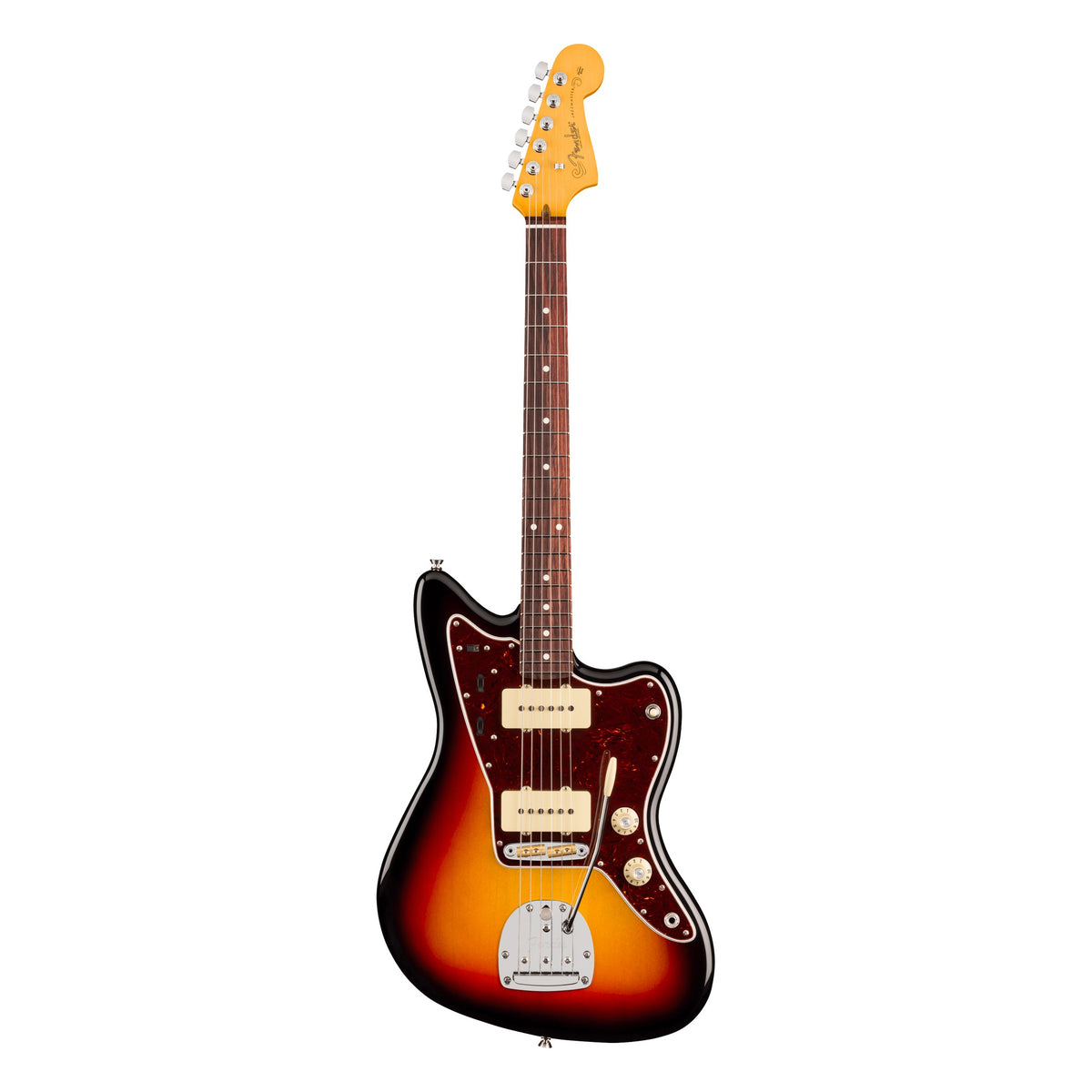

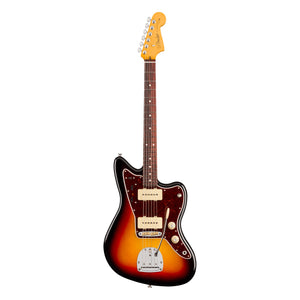

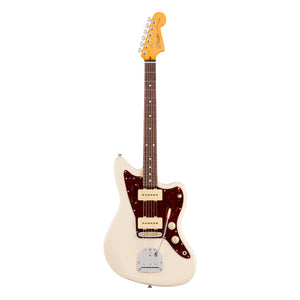

The American Professional Jazzmaster gets new V-Mod III pickups with Alnico 4 magnets, which Fender voices for tight lows, even mids and clear highs. A push-push tone control taps the bridge pickup from a full, throaty sound down to a lower-output vintage one.
The rhythm circuit is where it departs from a vintage Jazzmaster. Flip the slide switch and the two pickups run in series, thicker and louder, with the roller wheels as their own volume and tone. The Panorama tremolo with pop-in arm works with a ClassicGear J-Bridge carrying two-piece brass compensated saddles.

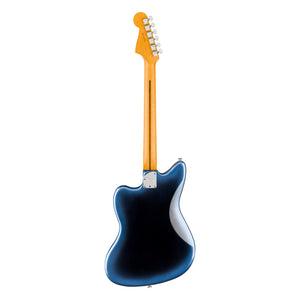

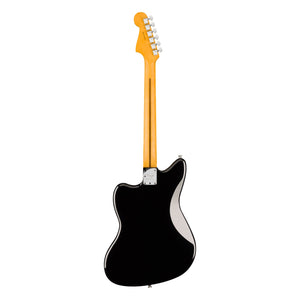

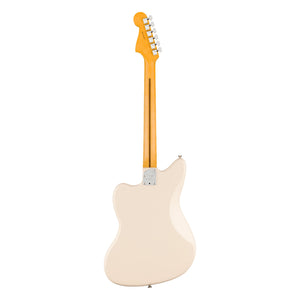

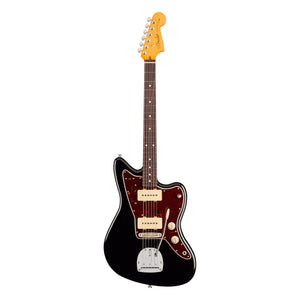

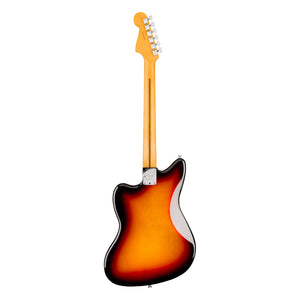

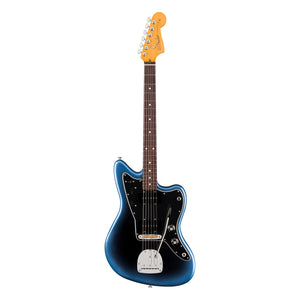

Deep "C" neck with rolled edges, 25.5" scale, 9.5" radius and a rosewood board. Five finishes, all alder; Black and Olympic White are new to the Jazzmaster in this series.
The Jaguar shares these electronics on a 24" scale, if you'd rather have the shorter neck.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Material: Alder
Body Finish: Polyurethane
Body Shape: Jazzmaster
Pickguard: By finish, as shown
NECK
Neck Material: Maple
Neck Finish: "Super-Natural" Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Shape: Deep "C"
Fingerboard Radius: 9.5" (241 mm)
Fingerboard Material: Rosewood
Position Inlays: White Dot
Number of Frets: 22
Fret Size: Narrow Tall
Nut: Bone, 1.685" (42.8 mm)
Scale Length: 25.5" (648 mm)
ELECTRONICS
Bridge Pickup: V-Mod III Single-Coil Jazzmaster
Neck Pickup: V-Mod III Single-Coil Jazzmaster
Pickup Configuration: SS
Controls: Lead Circuit Controls (Slide Switch Down): Master Volume, Master Tone; Rhythm Circuit Controls (Slide Switch Up): Thumbwheel Volume and Tone Controls for Series Rhythm Mode
Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Special Electronics: Push/Push on Tone Control Taps Bridge Pickup for Vintage Tone
Treble Bleed: Yes
Potentiometers: ClassicGear Precision
HARDWARE
Bridge: Panorama Tremolo with Pop-In Arm and ClassicGear J-Bridge with Two-Piece Brass Compensated Saddles
Hardware Finish: Nickel/Chrome
Tuning Machines: Fender Standard Cast/Sealed Staggered
Neck Plate: 4-Bolt Asymmetrical with Micro-Tilt Adjustment
Pickup Covers: Aged White
Control Knobs: Aged White "Witch Hat"
Strings: Fender USA 250L Nickel Plated Steel (.009-.042 Gauges)
CASE
Case: Deluxe Molded Case (included)
