The American Ultra II Telecaster uses two Ultra II Noiseless Vintage Tele pickups, so the Tele sound comes without single-coil hum. The S-1 switch on the volume wires the pickups in series in any position, bypassing the 3-position blade, for a thicker, louder sound than the standard settings.
In place of the three-barrel Tele bridge, there's a 6-saddle strings-through-body hardtail with chromed brass saddles, so each string intonates on its own. The quartersawn maple neck has the flatter Modern "D" profile and a 10" to 14" compound radius, rounder near the nut for chords and flatter up high so bends don't fret out. Rolled edges, Luminlay side dots, a Graph Tech TUSQ nut, Ultra contours with a sculpted heel, and locking short-post tuners.
For a vintage-style Tele with brass barrel saddles and a 9.5" radius, look at the American Professional Classic Telecaster. For period looks with modern playability, the American Ultra Luxe Vintage 50s Telecaster.

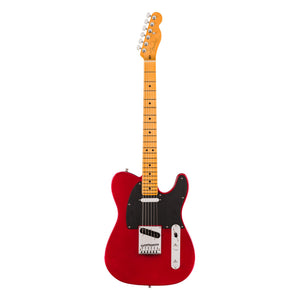

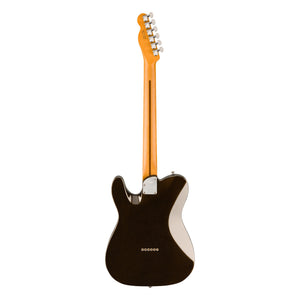

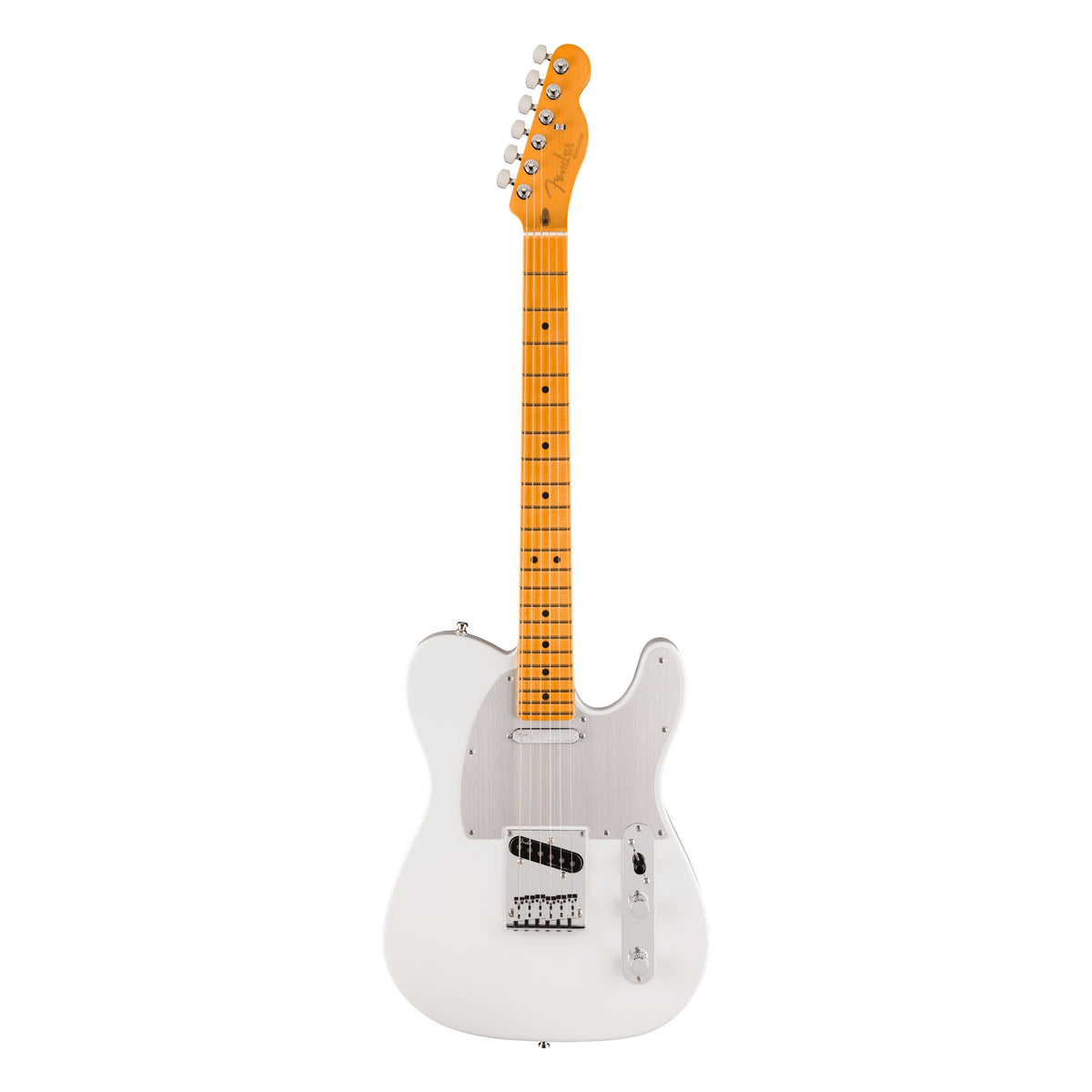

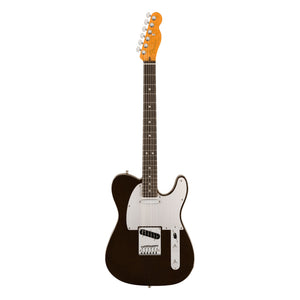

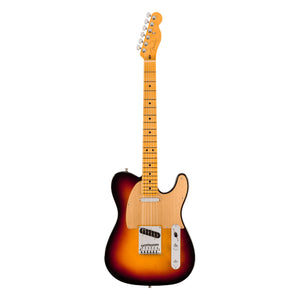

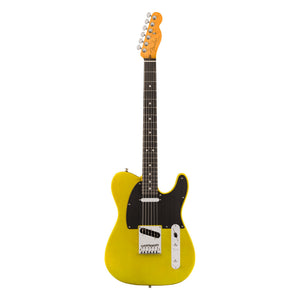

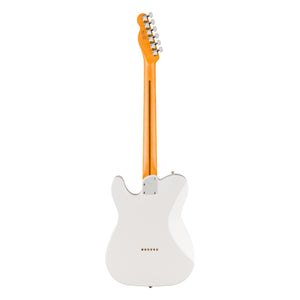

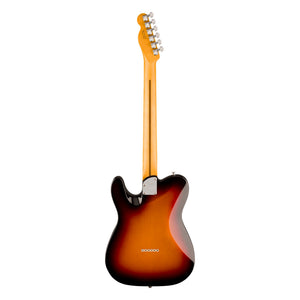

Avalanche, Sinister Red and Ultraburst come with a quartersawn maple board, Solar Flare and Texas Tea with ebony.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Material: Select Alder
Body Finish: Gloss Urethane
Body Shape: Telecaster
Pickguard: 1-Ply Silver Anodized Aluminum, 1-Ply Black Anodized Aluminum or 1-Ply Gold Anodized Aluminum (by finish)
NECK
Neck Material: Quartersawn Maple
Neck Construction: 4-Bolt
Neck Finish: Ultra Satin Urethane
Neck Shape: Modern "D"
Fingerboard Radius: 10" to 14" Compound Radius (254 mm to 355.6 mm)
Fingerboard Material: Quartersawn Maple or Ebony (by finish)
Position Inlays: Black Pearloid Dot - 7 mm or White Pearloid Dot - 7 mm (by finish)
Side Dots: Luminlay
Number of Frets: 22
Fret Size: Medium Jumbo
Truss Rod: Bi-Flex
Nut Material: Graph Tech TUSQ
Nut Width: 1.685" (42.8 mm)
Scale Length: 25.5" (648 mm)
ELECTRONICS
Bridge Pickup: Ultra II Noiseless Vintage Tele
Neck Pickup: Ultra II Noiseless Vintage Tele
Pickup Configuration: SS
Controls: Master Volume (S-1 Switch), Master Tone
Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Special Electronics: S-1 Switch Activates Series Wiring Option in Any Pickup Position (Bypasses Pickup Selector Switch)
HARDWARE
Bridge: 6-Saddle String-Through-Body Hardtail with Chromed Brass Saddles
Hardware Finish: Nickel/Chrome
Tuning Machines: Deluxe Cast/Sealed Locking (all short posts)
Pickup Covers: Neck: Chrome; Bridge: Black
Control Knobs: Heavy Knurled Flat-Top
Strap Buttons: Locking
Strings: Fender USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
CASE
Case: Deluxe Molded Case (Included)
