The Jim Root Jazzmaster keeps the offset body and drops almost everything else. No rhythm circuit, no tone controls, no floating vibrato and no position markers: a single volume, a three-way blade, an EMG 60 at the neck, an EMG 81 at the bridge and a string-through hardtail.
The body is mahogany with a contoured neck heel. The modern "C" maple neck carries an ebony board with a 12" to 16" compound radius, rounder near the nut for chords and flatter up high for low action and clean bends, with 22 jumbo frets and side dots only. Locking staggered tuners and the fixed bridge keep it stable in dropped tunings, and the hardware is black throughout.

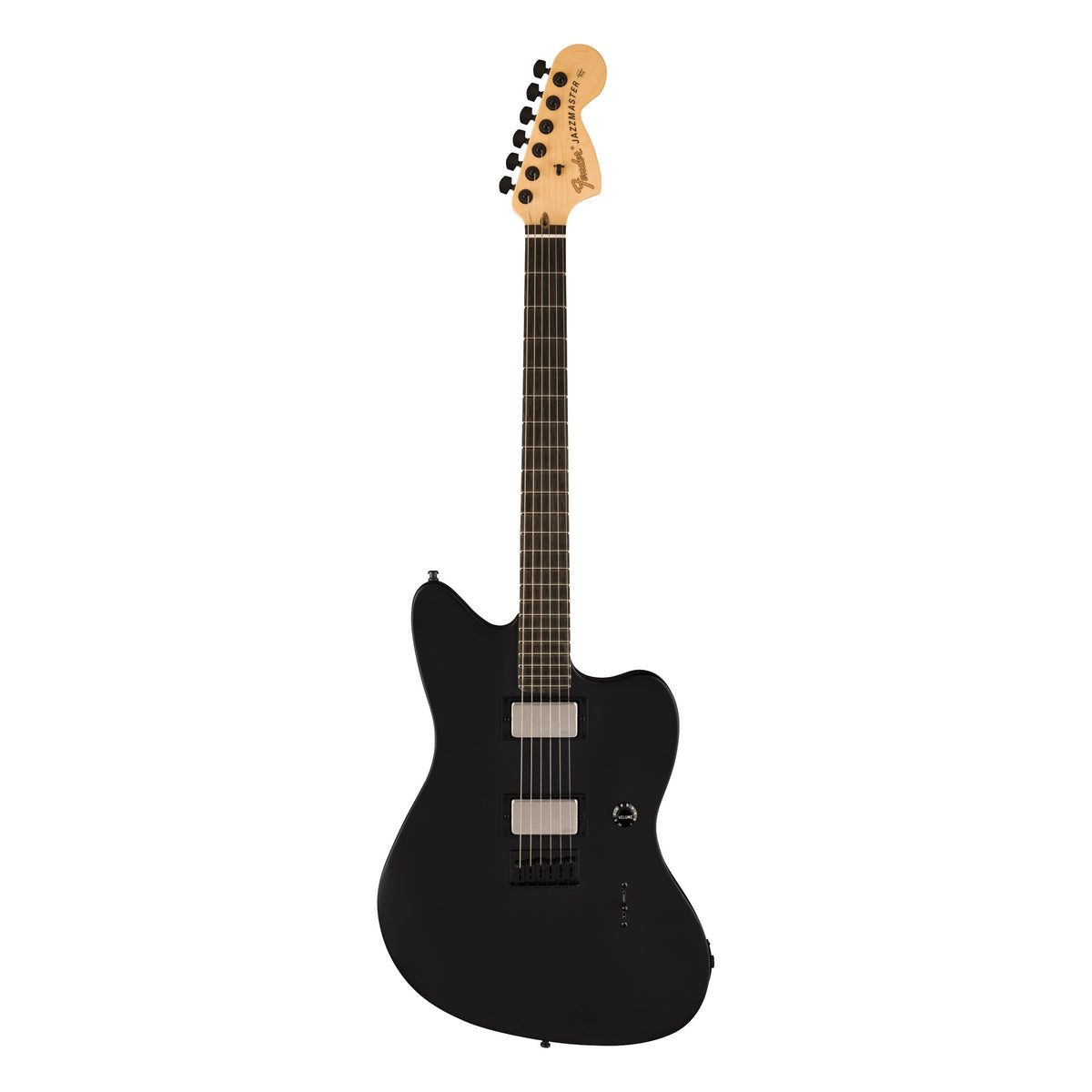

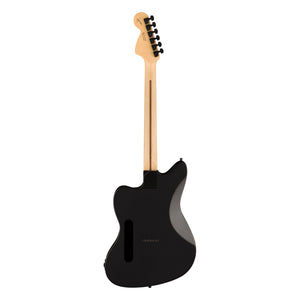

This is the USA-built version in Flat Black. The Jim Root Jazzmaster V4 is the Mexico-built alternative with Daemonum pickups and block inlays, and the Jim Root Stratocaster gives the same electronics and compound board in a Strat body.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Material: Mahogany
Body Finish: Satin Urethane
Body Shape: Jazzmaster
Pickguard: None
NECK
Neck Material: Maple
Neck Finish: Satin Urethane
Neck Shape: Modern "C"
Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material: Ebony
Position Inlays: None
Number of Frets: 22
Fret Size: Jumbo
Truss Rod: Bi-Flex
Nut Material: Synthetic Bone
Nut Width: 1.685" (42.8 mm)
Scale Length: 25.5" (648 mm)
ELECTRONICS
Bridge Pickup: EMG 81
Neck Pickup: EMG 60
Pickup Configuration: HH
Controls: Master Volume
Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
HARDWARE
Bridge: 6-Saddle String-Through-Body Hardtail With Block Saddles
Hardware Finish: Black
Tuning Machines: Deluxe Staggered Cast/Sealed Locking
Control Knobs: Black Plastic
Strap Buttons: American Series
Strings: Fender USA 250R Nickel Plated Steel (.010-.046 Gauges), PN 0730250406
CASE
Case: Deluxe Black Tweed Hardshell
