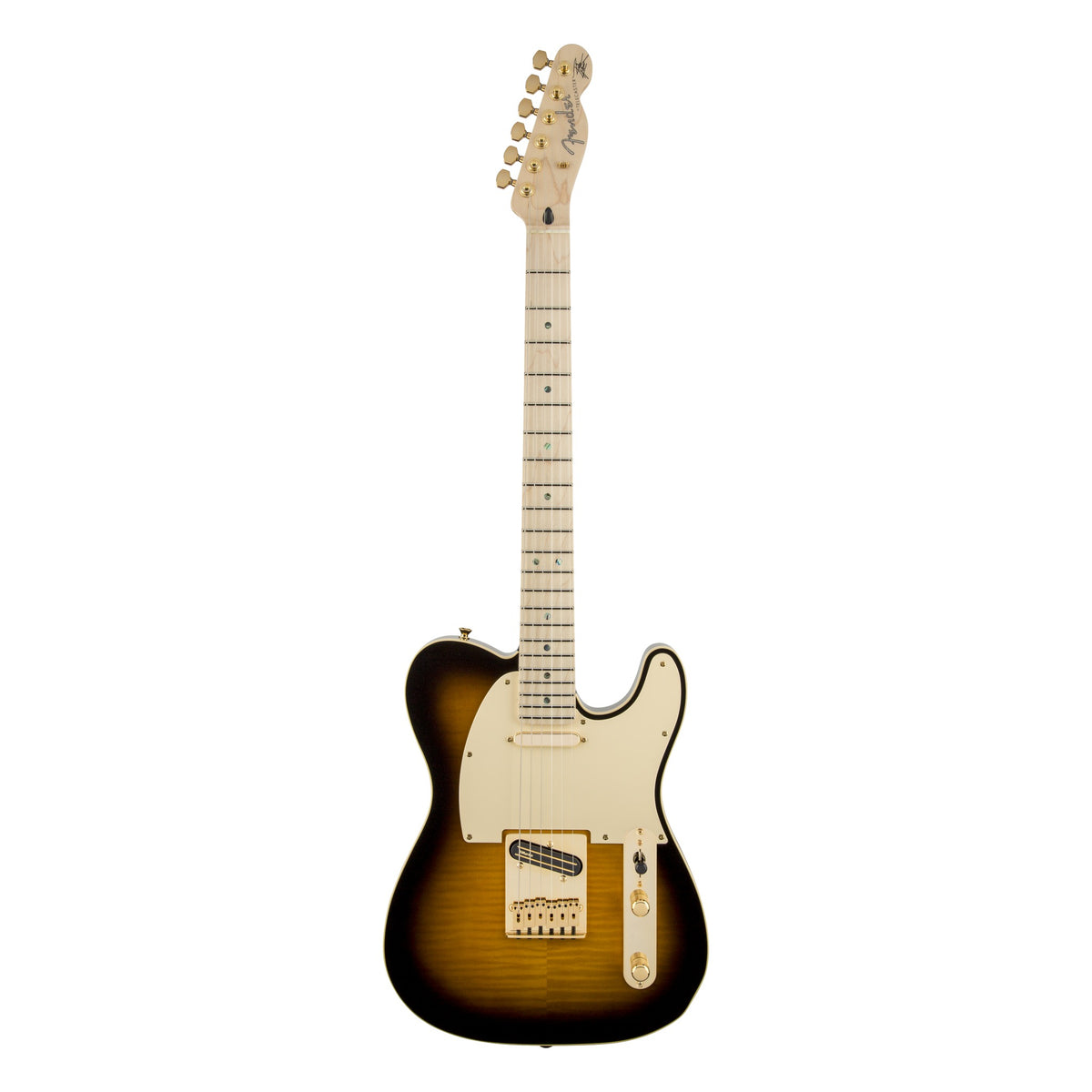

Richie Kotzen's Telecaster was a Japan-only model for years before it went worldwide, and it is still made in Japan. A contoured ash body under a bound flame maple top, gold hardware, and a pair of DiMarzios chosen for him: a Twang King in the neck and a Chopper T in the bridge.
The control layout is his own. There is a master volume, no tone knob, and a rotary switch that flips the pickups between series and parallel, so the middle position gives you either the familiar bright pairing or a thicker, louder series sound. The large "C" neck fills the hand, and the 12" radius with 22 jumbo frets makes for low action and clean bends high up the board.
For the same build ideas in a Stratocaster, look at the Richie Kotzen Stratocaster. This one comes in Brown Sunburst with a maple fingerboard and abalone dots.
SPECIFICATIONS
BODY
Country of Origin: Japan
Body Material: Ash with Flame Maple Laminated Top
Body Finish: Gloss Urethane
Body Shape: Telecaster
Pickguard: 1-Ply Cream
NECK
Neck Material: Maple
Neck Finish: Satin Urethane
Neck Shape: Large "C"
Fingerboard Radius: 12" (305 mm)
Fingerboard Material: Maple
Position Inlays: Abalone Dot
Number of Frets: 22
Fret Size: Jumbo
Truss Rod: Standard
Nut Material: Synthetic Bone
Nut Width: 1.650" (42 mm)
Scale Length: 25.5" (648 mm)
ELECTRONICS
Bridge Pickup: DiMarzio The Chopper T DP384
Neck Pickup: Dimarzio Twang King DP172G
Pickup Configuration: SS
Controls: Master Volume, Series/Parallel Rotary Switch
Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
Special Electronics: Series/Parallel Rotary Switch
HARDWARE
Bridge: 6-Saddle String-Through-Body Tele with Block Steel Saddles
Hardware Finish: Gold
Tuning Machines: Gotoh Cast/Sealed
Control Knobs: Knurled Dome, Gold
Strap Buttons: Vintage-Style
Strings: Fender USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
