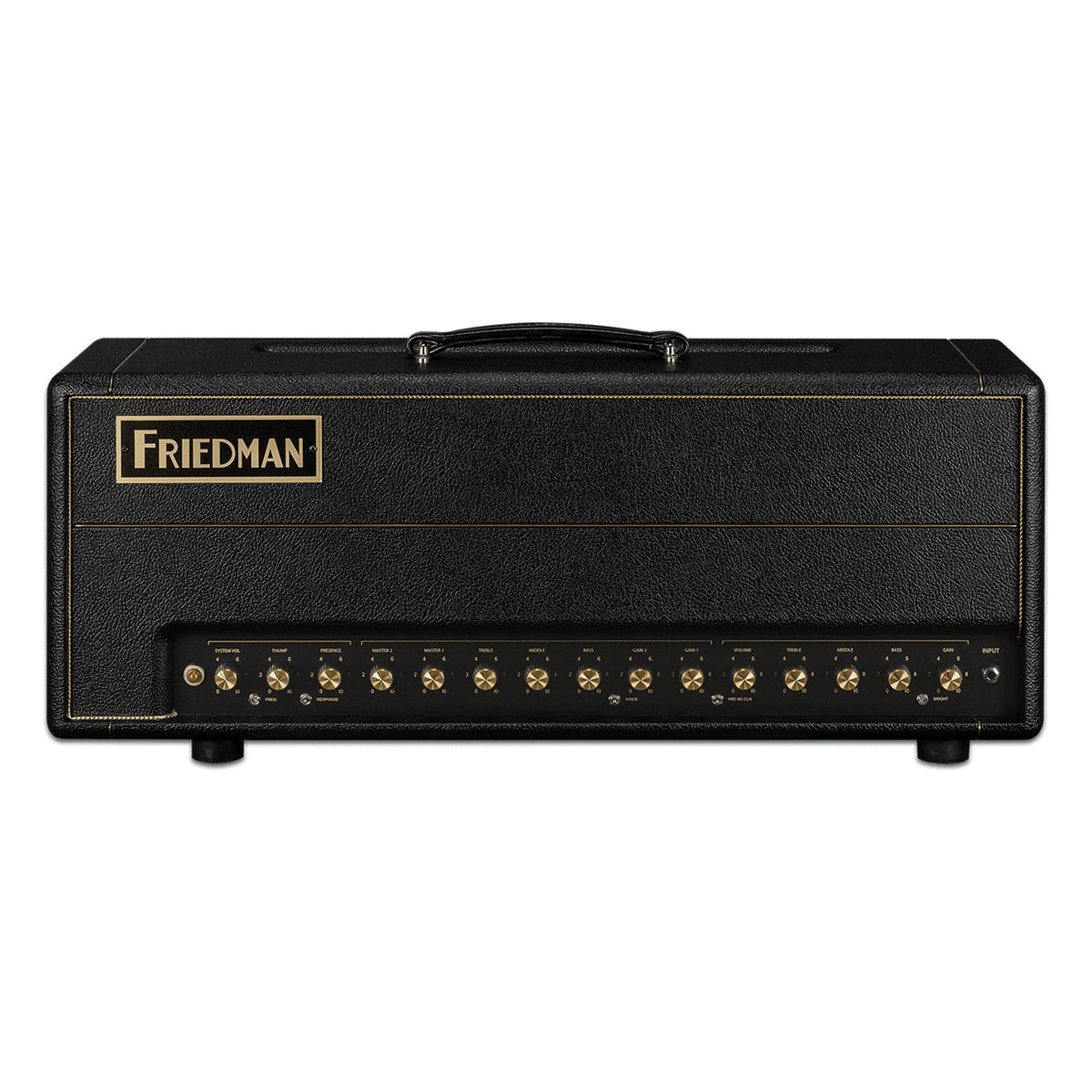

The BE-100 Deluxe is Friedman's 100-watt flagship: four EL34s, five 12AX7s and three channels, hand-wired in the USA. The BE and HBE drive channels each get their own gain and master and share one Bass, Middle and Treble, so the two flavours of Friedman's BE circuit sit a footswitch apart.
The third channel is a clean borrowed from the plexi channel of the Smallbox, with its own gain, volume, three-band EQ and fat switch, and its gain control takes it from clean into plexi grit. Behind that, the power section has its own set of tools: Presence, a Thump knob, a Frequency switch that moves where Thump works, and a Response switch that changes the negative feedback. C45, Saturation, Voice and Gain Structure switches shape the two drive channels.
The BE-50 Deluxe is the same idea at 50 watts with two EL34s, a clean channel modelled on the Buxom Betty instead of the Smallbox, and a switch down to 25 watts in triode. Take the 100 for the extra headroom and the Smallbox-style clean.
SPECIFICATIONS
AMPLIFIER
Country of Origin: United States
Configuration: 100 Watt all-tube head
Channels: Three (Plexi, BE, HBE)
Construction: Hand-wired in the USA
TUBES
Power Tubes: 4 x EL-34
Preamp Tubes: 5 x 12AX7
CONTROLS
BE Channel: Gain, Master, Bass, Middle, Treble (shared with the HBE channel)
HBE Channel: Gain, Master, Bass, Middle, Treble (shared with the BE channel)
Plexi Channel: Gain, Volume, Bass, Middle, Treble and fat switch
C45 Voicing Switch: BE / HBE channel
Saturation Switch: adds saturation
Voice Switch: varies top end response
Gain Structure Switch: lowers gain of BE / HBE channel
Response Switch: varies negative feedback
Frequency Switch: changes frequency of the Thump knob
Thump Knob: varies lowered response of amp
CONNECTIONS
Effects Loop: Ultra-transparent series effects loop
Impedance: 4, 8 and 16 ohm Impedance selector switch
FEATURES
Limited Lifetime Warranty
DIMENSIONS
Dimensions: 8.75″ (D) x 29.25″ (W) x 12.25″
Weight: 43 lbs.
ACCESSORIES
Footswitch: Two button foot switch for channel selections
