The JEL-50 is the 50-watt Jake E. Lee signature head, hand-wired in the USA with two EL34s, three 12AX7s and custom USA made transformers. It follows the JEL-20's plan, a Plexi channel beside a hotter JEL channel tuned to Lee's ear, with more power and a different power section.

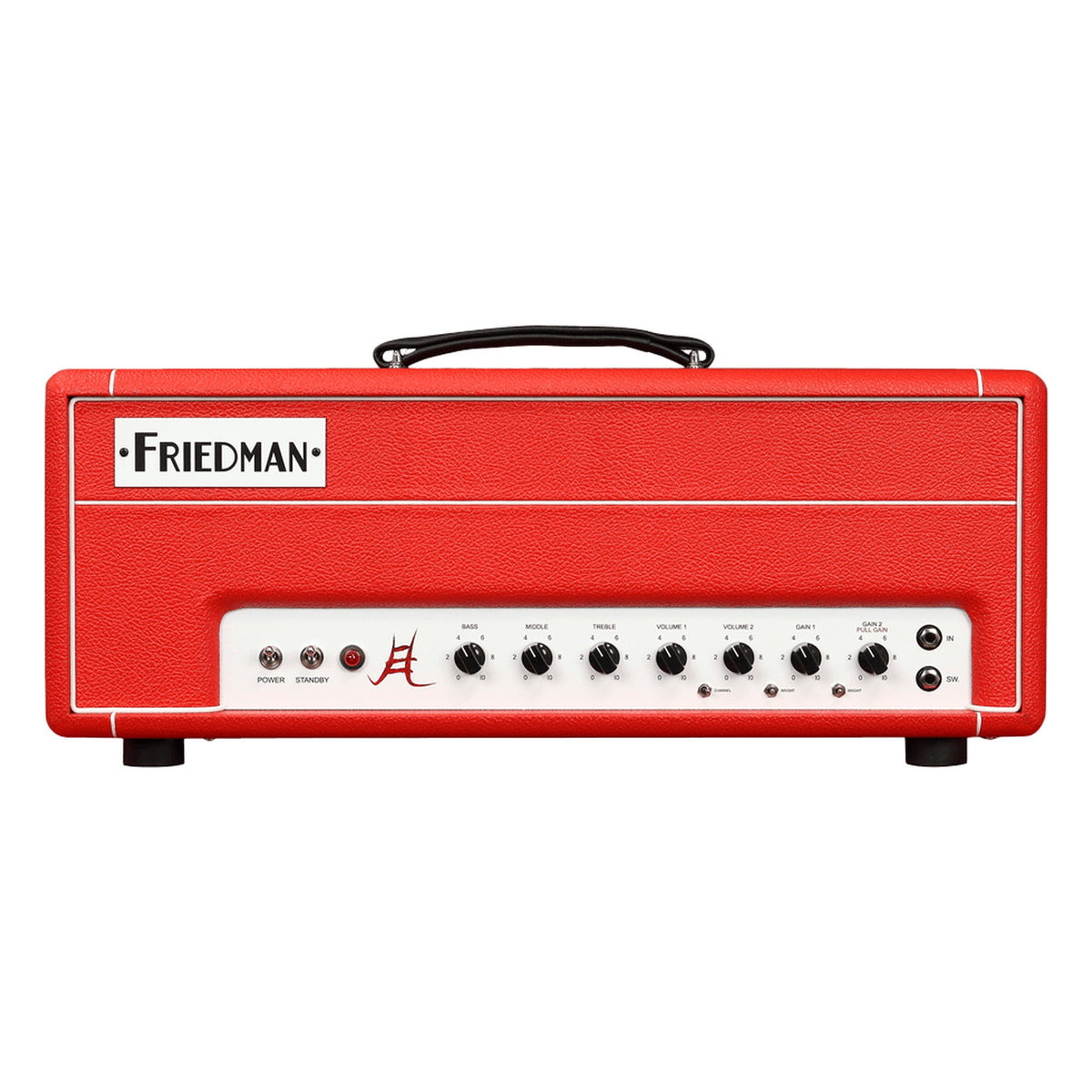

The JEL channel has Gain, Master, a 3-way Bright switch and a push-pull Hi/Lo gain switch. The Plexi channel has Gain, Volume and its own 3-way Bright switch, and Bass, Middle and Treble are shared. Thump and Presence sit on the rear panel and shape the power section. Friedman built it to take pedals in front, boosts, ODs, phasers, flangers, tremolos and wahs, with time-based effects in the ultra-transparent series loop it uses across its amps.
Its match is the JEL-212 Cab, in the same red Tolex and white piping over solid Baltic birch. The JEL-20 Head is the 20-watt EL84 version and adds a cab-simulated XLR output and silent recording. The JEL-50 carries a Limited Lifetime Warranty, against five years on the JEL-20.
SPECIFICATIONS
AMPLIFIER
Country of Origin: United States
Configuration: Head
Wattage: 50-Watt all-tube
Channels: Two (JEL, Plexi)
Construction: Handwired in the USA
Transformers: Custom USA made transformers
Cabinet: Solid Baltic Birch, red tolex, white piping
TUBES
Power Tubes: 2 x EL34
Preamp Tubes: 3 x 12AX7
CONTROLS
JEL Channel: Gain, Master, 3-way Bright switch
JEL Channel Hi/Lo: Push pull gain switch
Plexi Channel: Gain, Volume, 3 way Bright Switch
EQ: Bass, Middle, Treble shared with Ch1 and Ch2

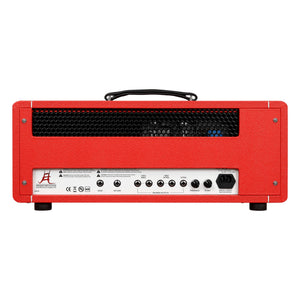

Thump (Rear): Varies lowered response of the amps power section
Presence (Rear): Varies high end content of the amps power section
CONNECTIONS
Effects Loop: Ultra-transparent series effects loop
Impedance: 4, 8 and 16 ohm Impedance jacks
FEATURES
Warranty: Limited Lifetime Warranty
DIMENSIONS
Dimensions: 8.75″ (D) x 24″ (W) x 10″ (H)
Weight: 33.5 lbs
ACCESSORIES
Included: Single button foot switch for channel selections
