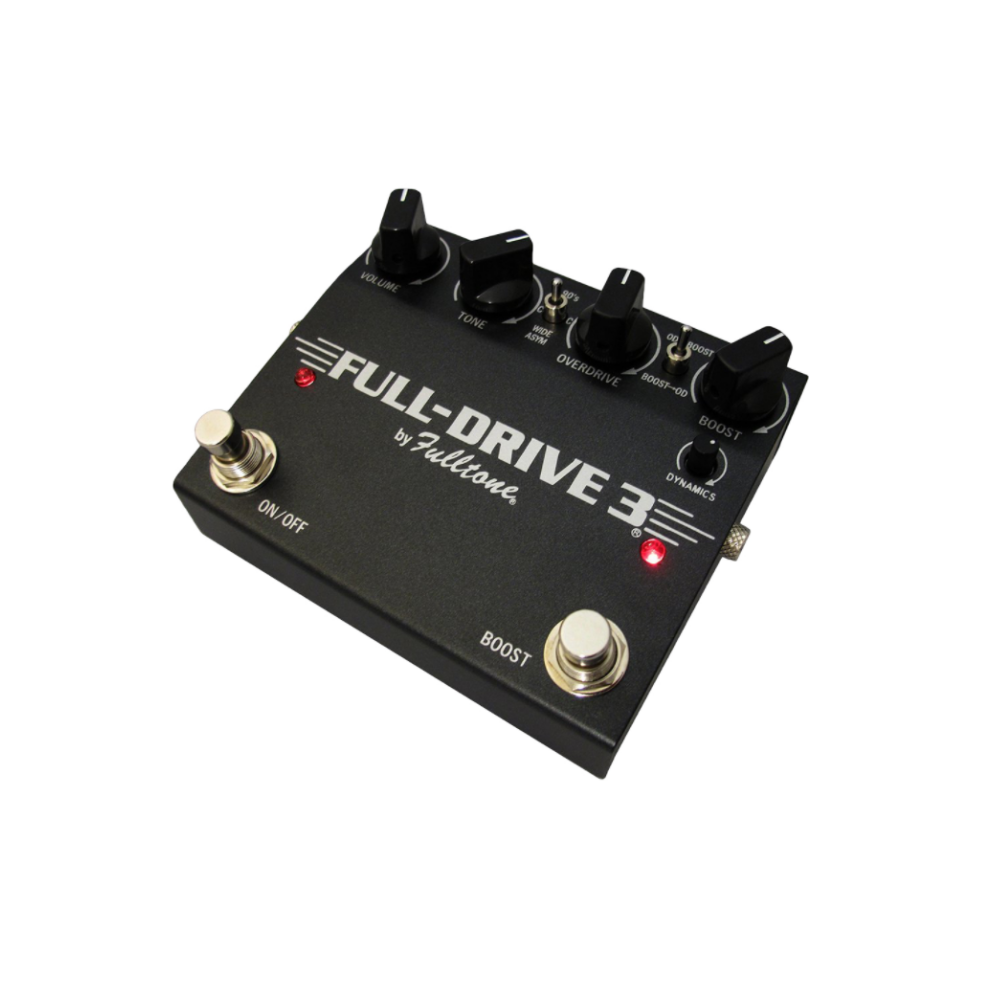

Two fully independent channels, overdrive and boost, with an Order toggle that puts the boost either side of the drive. That is the part people miss about the FD3: it is two pedals in one enclosure rather than a drive with a level lift.
The clipping toggle runs 90s for symmetrical clipping with the midrange that made the earlier Fulldrives, Wide Asym for more top and bottom with even-order harmonics, and Comp-Cut for straight opamp overdrive with no diodes in the way.
The Dynamics knob is a germanium diode limiter, which changes the feel under the pick and holds back transient spikes before they hit the front of the amp.
SPECS
Channels: Independent Overdrive and Boost
Controls: Volume, Tone, Overdrive, Boost, Dynamics
Toggles: 90s / Wide Asym / Comp-Cut clipping, and OD>Boost / Boost>OD order
Limiter: Germanium diode, on the Dynamics control
Input Impedance: 1.1 megohms
Output Impedance: 180 ohms
Power Consumption: 13 mA maximum with both channels on
Dimensions: 5.17" x 4.26" x 2.36"
Weight: 1 lb 7 oz
