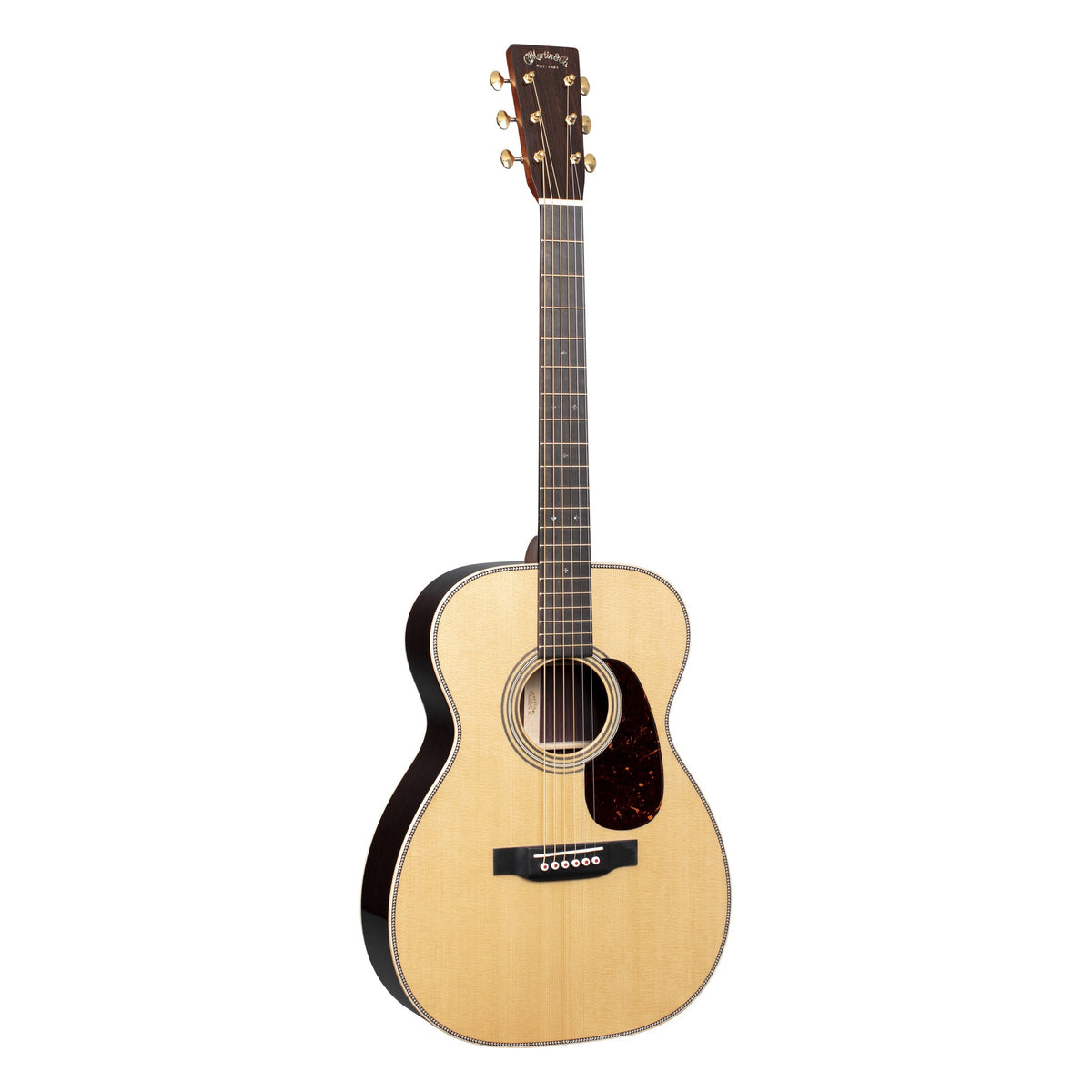

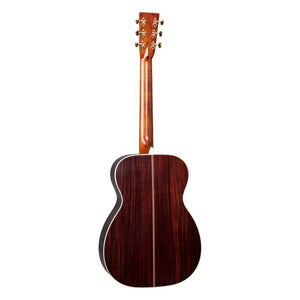

The 00-28 Modern Deluxe builds the 00-14 fret rosewood body with Martin's newer materials. The European Red Spruce top and the Adirondack spruce braces are both VTS-treated, the X-bracing is GE-Scalloped, the bridgeplate is carbon fibre, and the bridge pins are Liquidmetal with red acrylic dots.
The Vintage Deluxe neck in select mahogany has a High-Performance Taper and a 1 3/4'' nut on a 24.9" scale, under an ebony board with abalone diamonds and squares in the long pattern. European flamed maple binding, heelcap and endpiece sit against bold herringbone and a zig-zag back strip, the headplate carries a 1933 CFM script logo inlay, and the tuners are Waverly gold open gear. Martin lists the LR Baggs Anthem as its electronics option.
For a 12-fret neck and slotted headstock in the same series, look at the 0012-28 Modern Deluxe. The 00-28 is the Standard Series version with an Aging Toner spruce top and antique white binding, and the 000-28 Modern Deluxe is this build one size up.
SPECIFICATIONS
BODY
Country of Origin: USA (Nazareth, Pennsylvania)
Body Size: 00-14 Fret
Construction: Dovetail Neck Joint
Back Material: East Indian Rosewood
Side Material: East Indian Rosewood
Back and Sides Finish: Gloss
Back Purfling/Strip: Zig-Zag Authentic
Back Inlay Material: Multi-Stripe
Bracing Pattern: X Brace
Brace Shape: GE-Scalloped
Brace Material: Adirondack Spruce with VTS
Brace Size: 1/4"
Endpiece: European Flamed Maple
Endpiece Inlay: Multi-Stripe
Top Material: European Red Spruce w/ VTS
Finish Top: Gloss
Top Color: Clear
Top Inlay Material: Bold Herringbone
Binding: European Flamed Maple
Pickguard: Tortoise Pattern
Rosette: Style 28 Multi-Stripe
NECK
Neck Shape: Vintage Deluxe
Neck Taper: High-Performance Taper
Neck Material: Select Mahogany
Neck Color: Dark Mahogany
Finish Neck: Satin
Scale Length: 24.9"
Number of Frets Total: 20
Neck Joins Body At: 14th Fret
Heelcap: European Flamed Maple
Fingerboard Material: Ebony
Fingerboard Width at 12th Fret: 2 1/8''
Fingerboard Width at Nut: 1 3/4''
Fingerboard Inlay Style: Diamonds and Squares Long Pattern
Fingerboard Inlay Material: Abalone
Side Dots: Abalone
Headstock Shape: Solid with Square Taper and Diamond
Headplate Material: East Indian Rosewood
Headplate Logo Style: 1933 CFM Script Inlay
Pleked: Yes
HARDWARE
Bridge Material: Ebony
Bridge Style: Modern Belly - Drop in Saddle
Bridge String Spacing: 2 5/32"
Bridge Pin Material: Liquidmetal®
Bridge Pin Dots: Red Acrylic
Saddle: Compensated Bone
Saddle Radius: 16"
Tuning Machines: Waverly® Gold Open Gear
Knob: Butterbean
Nut Material: Bone
CASE
Case: Ply Hardshell
