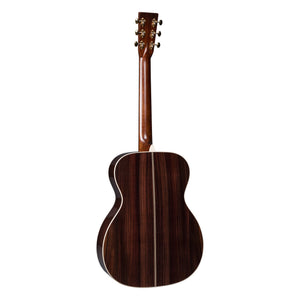

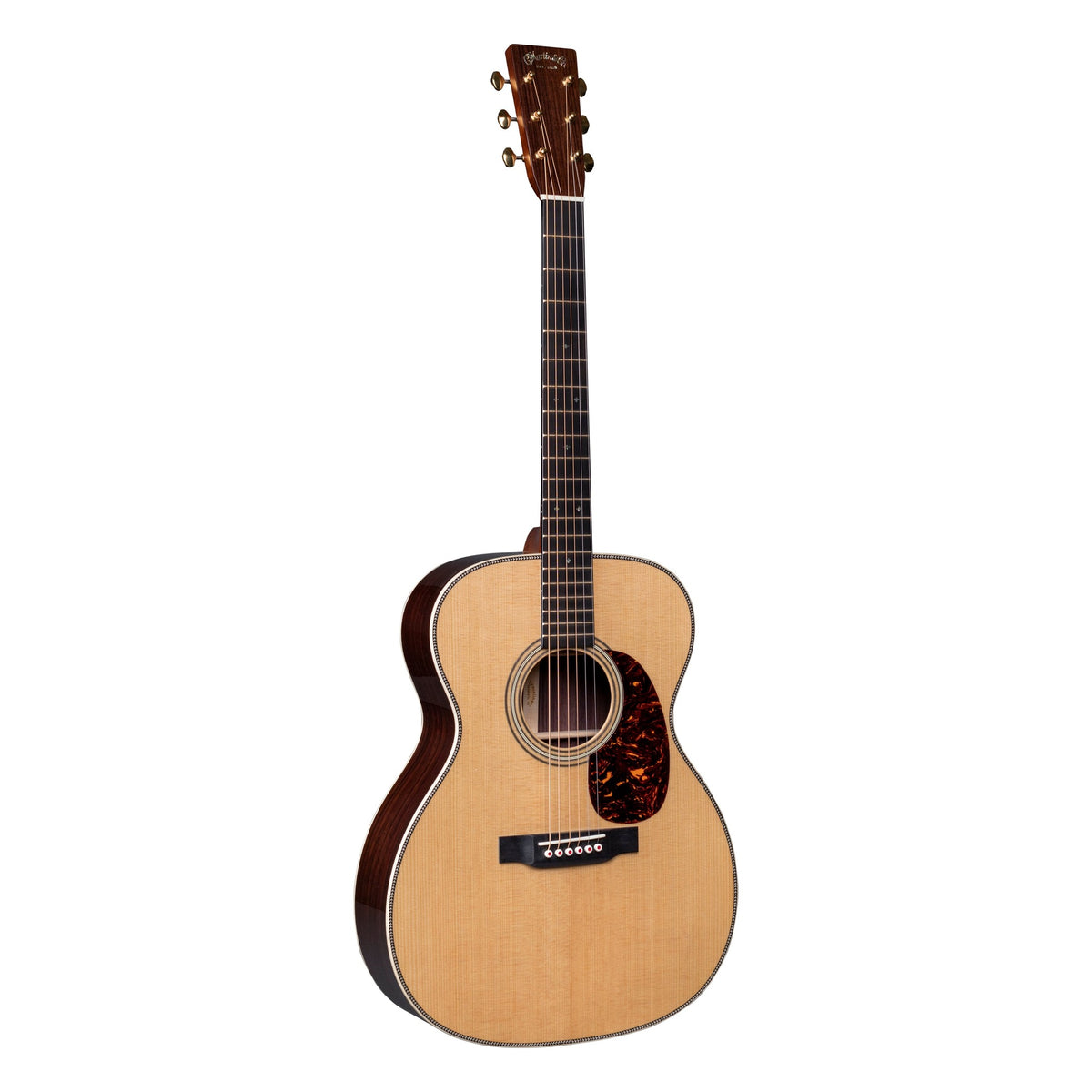

The 000-28 Modern Deluxe is a 000-14 Fret in East Indian rosewood with a European Red Spruce top, and Martin treats both the top and the Adirondack spruce braces with VTS. The X-Brace is GE-Scalloped, and a carbon fibre bridgeplate sits under the bridge.
The neck is select mahogany in the Vintage Deluxe shape with the High-Performance Taper, 1 3/4" at the nut on a 24.9" scale, with an ebony board and Pleked frets. Martin trims it with Bold Herringbone around the top, European flamed maple binding, abalone Diamonds and Squares Long Pattern inlays and a 1933 CFM Script Inlay logo, then fits Liquidmetal bridge pins and Waverly gold open-gear tuners.
This is the acoustic version. The same guitar is also listed with Fishman Aura VT Blend electronics. For this build on a 25.4" scale, look at the OM-28 Modern Deluxe. The 000-28 is the same body and woods without the VTS treatment and the Modern Deluxe appointments, and the 000-18 Modern Deluxe swaps the rosewood for genuine mahogany.
SPECIFICATIONS
BODY
Country of Origin: USA (Nazareth, Pennsylvania)
Body Size: 000-14 Fret
Construction: Dovetail Neck Joint
Back Material: East Indian Rosewood
Side Material: East Indian Rosewood
Back and Sides Finish: Gloss
Back Purfling/Strip: Zig-Zag Authentic
Back Inlay Material: Multi-Stripe
Bracing Pattern: X-Brace
Brace Shape: GE-Scalloped
Brace Material: Adirondack Spruce with VTS
Brace Size: 1/4"
Endpiece: European Flamed Maple
Endpiece Inlay: Multi-Stripe
Top Material: European Red Spruce w/ VTS
Finish Top: Gloss
Top Color: Clear
Top Inlay Material: Bold Herringbone
Binding: European Flamed Maple
Pickguard: Tortoise Pattern
Rosette: Style 28 Multi-Stripe
NECK
Neck Shape: Vintage Deluxe
Neck Taper: High-Performance Taper
Neck Material: Select Mahogany
Neck Color: Dark Mahogany
Finish Neck: Satin
Scale Length: 24.9"
Number of Frets Total: 20
Neck Joins Body At: 14th Fret
Heelcap: European Flamed Maple
Fingerboard Material: Ebony
Fingerboard Width at 12th Fret: 2 1/8''
Fingerboard Width at Nut: 1 3/4''
Fingerboard Inlay Style: Diamonds and Squares Long Pattern
Fingerboard Inlay Material: Abalone
Side Dots: Abalone
Headstock Shape: Solid with Square Taper and Diamond
Headplate Material: East Indian Rosewood
Headplate Logo Style: 1933 CFM Script Inlay
Pleked: Yes
HARDWARE
Bridge Material: Ebony
Bridge Style: Modern Belly - Drop in Saddle
Bridge String Spacing: 2 5/32"
Bridge Pin Material: Liquidmetal®
Bridge Pin Dots: Red Acrylic
Saddle: Compensated Bone
Saddle Radius: 16"
Tuning Machines: Waverly® Gold Open Gear
Knob: Butterbean
Nut Material: Bone
CASE
Case: Ply Hardshell
