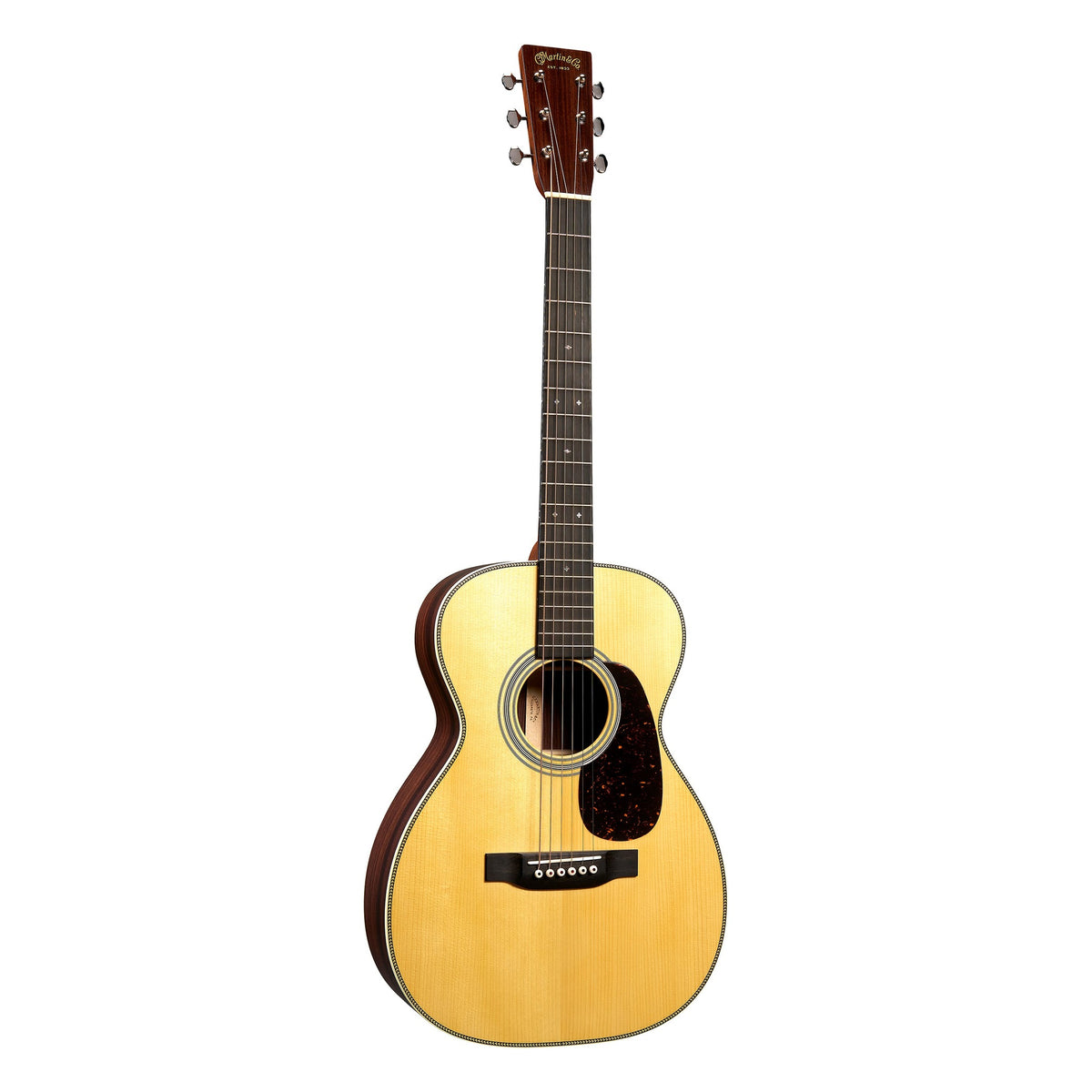

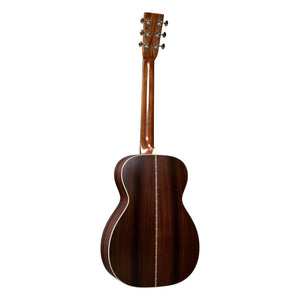

The Custom Shop 0-28 is a 0-14 Fret in East Indian rosewood with an Adirondack spruce top, hand-shaped GE-Scalloped Adirondack X-bracing, and Vintage Gloss on the body, the neck and the Aging Toner top. Martin credits the small body with deep bass and rich overtones.
Bold Herringbone surrounds the top, the binding is grained ivoroid, and the ebony board carries abalone Diamond & Square Long inlays. The neck is genuine mahogany in the GE Modified Low Oval shape with the High-Performance Taper, 1 3/4" at the nut on a 24.9" scale. Nut, saddle and bridge pins are bone.
For the same build in genuine mahogany with Old Style 18 trim, look at the Custom Shop 0-18. The 00-28 is the Standard Series rosewood 00, and the 5-28 Terz takes Style 28 to a 12-fret Size 5 in Terz tuning.
SPECIFICATIONS
BODY
Country of Origin: USA (Nazareth, Pennsylvania)
Body Size: 0-14 Fret
Construction: Dovetail Neck Joint
Back Material: East Indian Rosewood
Side Material: East Indian Rosewood
Back and Sides Finish: Vintage Gloss
Back and Sides Color: Natural
Back Purfling/Strip: Style 28 with Black Stripe
Back Inlay Material: Multi-Stripe
Bracing Pattern: X-Brace
Brace Shape: GE-Scalloped Hand Shaped
Brace Material: Adirondack Spruce
Brace Size: 1/4"
Endpiece: Grained Ivoroid
Endpiece Inlay: Multi-Stripe
Top Material: Adirondack Spruce
Finish Top: Vintage Gloss
Top Color: Aging Toner
Top Inlay Material: Bold Herringbone
Binding: Grained Ivoroid
Pickguard: Faux Tortoise
Rosette: Style 28 Multi-Stripe
NECK
Neck Shape: GE Modified Low Oval
Neck Taper: High-Performance Taper
Neck Material: Genuine Mahogany
Neck Color: Dark Mahogany
Finish Neck: Vintage Gloss
Scale Length: 24.9"
Number of Frets Total: 20
Neck Joins Body At: 14th Fret
Heelcap: Grained Ivoroid
Fingerboard Material: Ebony
Fingerboard Width at 12th Fret: 2 1/8''
Fingerboard Width at Nut: 1 3/4''
Fingerboard Inlay Style: Diamond & Square Long
Fingerboard Inlay Material: Abalone
Side Dots: White
Headstock Shape: Solid with Square Taper and Diamond
Headplate Material: East Indian Rosewood
Headplate Logo Style: Authentic Style Script Overlay
Pleked: Yes
HARDWARE
Bridge Material: Ebony
Bridge Style: GE Modern Belly - Drop in Saddle
Bridge String Spacing: 2 5/32"
Bridge Pin Material: Bone
Bridge Pin Dots: Faux Tortoise
Saddle: Bone
Saddle Radius: 16"
Tuning Machines: Nickel Open Gear
Knob: Butterbean
Nut Material: Bone
CASE
Case: Hardshell
