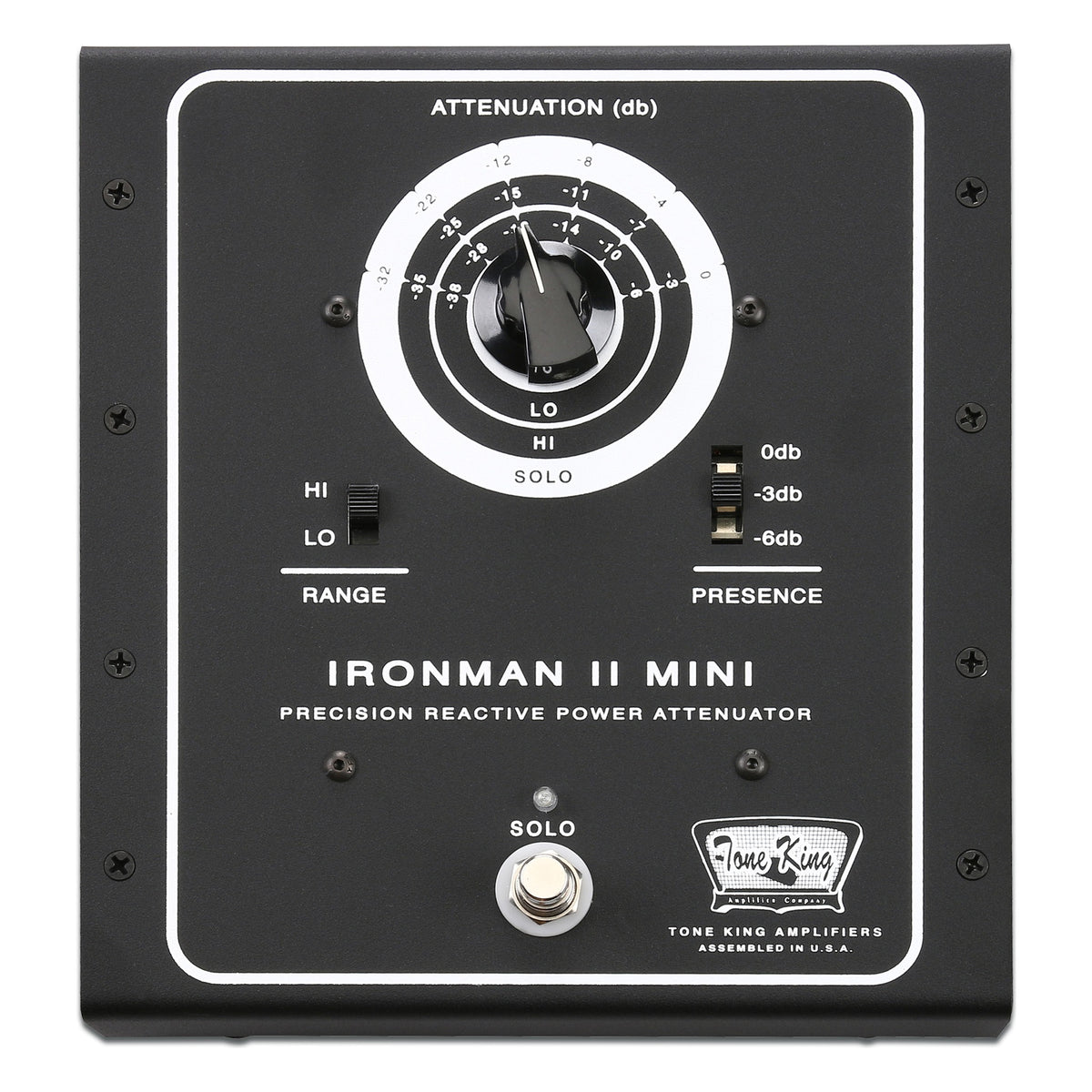

The Ironman II Mini is a 30-watt reactive power attenuator in a pedal you can put on your board. It uses the same reactive load and transformer-coupled design as the 100-watt Ironman II, so the amp runs at full output and only part of that reaches the speaker.
Six attenuation steps and a Hi/Lo range switch give 18 levels. The Solo footswitch on the face drops the attenuation by 3dB or 6dB for a louder solo level, and a three-position Presence switch takes some brightness off. A line out at -10dBu feeds an interface or an IR loader for direct recording.
It's rated for amps up to 30 watts RMS at 8 ohms, in and out. For a bigger amp, a 4 or 16 ohm load, a cab-simulated XLR out or silent dummy-load use, look at the Ironman II.
SPECIFICATIONS
SPECS
Country of Origin: USA
Weight: 3 lbs.
Dimensions: 7.5"(L) x 8"(W) x 3"(H)
Power Handling: 30W R.M.S. Maximum
Input Impedance: Fixed Impedance; 8 Ohms only
Speaker Impedance: Fixed Impedance; 8 Ohms only
Power Source: Used for LED indicator only. Power supplied by either internal batteries (2 x AA cells) or external 9V source.
CONTROLS
Attenuation Levels: A total of 18 distinct attenuation levels are available
Attenuation Dials: Selects between 6 different attenuation steps
SOLO Function: Selectable 3db/6db reduction in attenuation for solo volume boost
Range Switch: Selects between the HI and LO attenuation ranges, to control the attenuation level when the SOLO feature is inactive
Presence: 0db, -3db, -6db
LED Indicator: Indicates status of SOLO function

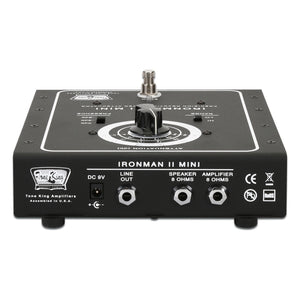

CONNECTIONS
Line Out: Recording / D.I. output, impedance = 10K Ohms; level = -10dbu
