The 02H is the 14-fret 0 in East Indian rosewood under a Sitka spruce top, one of the smallest bodies Collings builds at 13 7/16" wide and 4" deep. Collings pitches it two ways, as a guitar to travel with and as a compact take on an OM, and says it gives up some of the bigger bodies' low end for a round, punchy voice with good volume and headroom.
The 2H trim is ivoroid binding with herringbone purfling, abalone diamonds and squares on an ebony board, and a zipper backstrip. The neck is a modified V with a 1 11/16" bone nut and a 24 7/8" scale, and the top is braced with a pre-war scalloped X.
The 02H T is the Traditional Series version, the 02H 12-Fret moves the neck joint to the 12th fret on a longer body, and the 03 adds a bound board and peghead with an abalone rosette. Collings' options for tops, finishes, trim and inlays follow below.

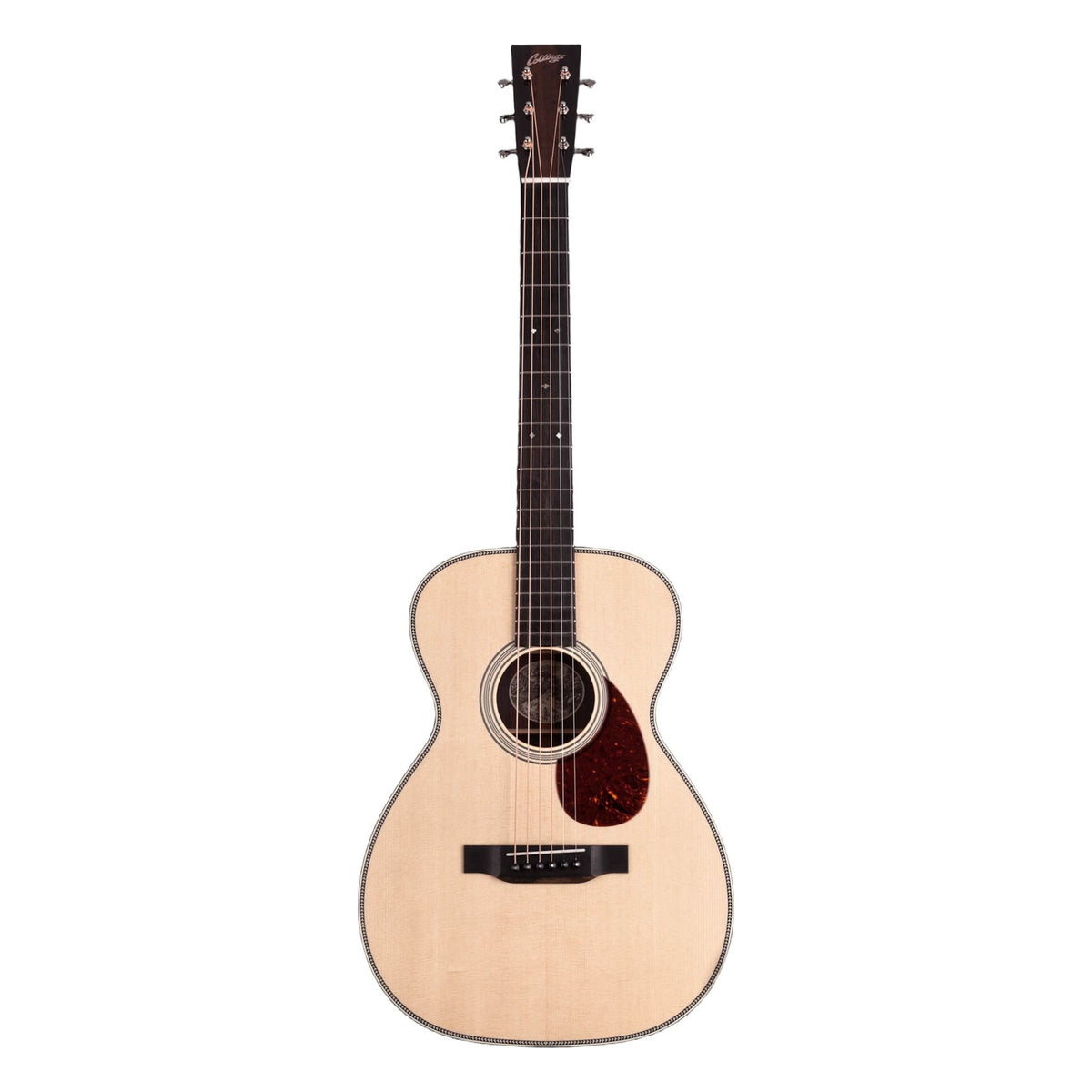

The photo shows one example build.
Options for this model include:
- Adirondack, old-growth Sitka, European, Engelmann or torrefied spruce top
- Figured mahogany, cocobolo or figured maple back and sides
- Sunburst or Western shaded top, full-body sunburst, Doghair or Jet Black finish
- Adirondack bracing
- Abalone rosette or abalone top border
- Wood binding
- Peghead inlays (Torch, Flowerpot, Vine, Flourish, Rose)
- Fingerboard inlays (snowflakes, Tree of Life and others)
- Nut width and neck options
- Left-handed build
Price subject to change based on options chosen.
SPECIFICATIONS
BODY
Country of Origin: USA (built in Austin, Texas)
Top: Sitka spruce
Back & Sides: E. Indian rosewood
Brace Material: Sitka spruce
Brace Pattern: Pre-war scalloped X-brace
Body Binding: Ivoroid with herringbone purfling
Rosette: iv/tort/iv & b/w purflings
Backstrip: 2-style (Zipper)
Pickguard: Tortoise
Body Finish: High gloss nitrocellulose lacquer
NECK
Neck: Honduran mahogany
Neck Profile: Modified V
Neck Joint: Mortise & tenon hybrid
Scale Length: 24 7/8"
Fingerboard: Ebony with abalone short diamond & squares
Fingerboard Radius: 14" - 26" compound
Fingerboard Binding: None
Frets: Medium 18% nickel-silver
Nut: Bone, 1 11/16"
Truss Rod: Fully adjustable
Peghead Profile: Square with volute
Peghead Veneer: Stained Exotic Ebony with MOP Collings logo
Peghead Binding: None
Neck Finish: High gloss polyester resin
HARDWARE
Bridge: Ebony belly-style with 2 3/16" spacing
Saddle: Bone, drop-in
Bridge Pins/End Pin: Ebony with MOP dot
Tuners: Nickel Waverly
Strings: D'Addario EJ-16 (.012"- .053")
DIMENSIONS
Body Width: 13 7/16"
Body Length: 18 3/16"
Body Depth: 4"
Total Length: 38"
CASE
Case: Deluxe hardshell case
