The 02H 12-Fret is the 0 body with its neck meeting the body at the 12th fret, in East Indian rosewood with a Sitka spruce top. The body runs longer, with softer curves than the 14-fret 0, and the bridge sits nearer the centre of the lower bout. Collings credits it with a fuller, more balanced voice than the 14-fret version, with a little more bass and volume.
The modified V neck carries a wider 1 13/16" bone nut, and the ebony pyramid bridge spaces the strings at 2 5/16", which Collings says suits fingerstyle and strumming alike. The 2H trim is ivoroid binding with herringbone purfling and abalone diamonds and squares, topped with a slotted peghead.
For the 14-fret body in the same trim, look at the 02H, and for the Traditional Series build, the 02H 12-Fret T. The 03 12-Fret dresses this body with an abalone rosette and a bound board and peghead. Collings' tops, finishes, trim and inlay options are listed below.

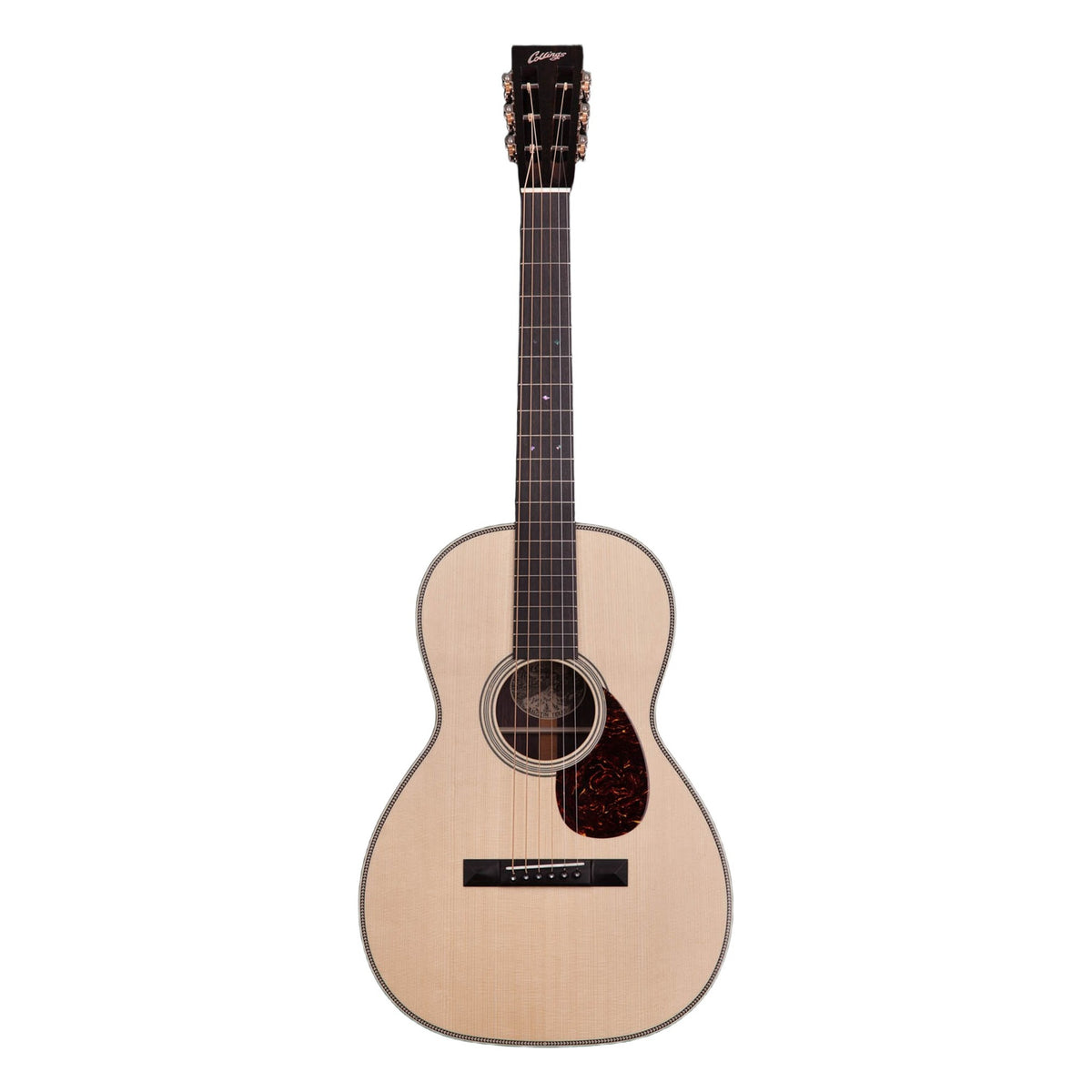

The photo shows one example build.
Options for this model include:
- Adirondack, old-growth Sitka, European, Engelmann or torrefied spruce top
- Figured mahogany, cocobolo or figured maple back and sides
- Sunburst or Western shaded top, full-body sunburst, Doghair or Jet Black finish
- Adirondack bracing
- Abalone rosette or abalone top border
- Wood binding
- Peghead inlays (Torch, Flowerpot, Vine, Flourish, Rose)
- Fingerboard inlays (snowflakes, Tree of Life and others)
- Nut width and neck options
- Left-handed build
Price subject to change based on options chosen.
SPECIFICATIONS
BODY
Country of Origin: USA (built in Austin, Texas)
Top: Sitka spruce
Back & Sides: E. Indian rosewood
Brace Material: Sitka spruce
Brace Pattern: Pre-war scalloped X-brace
Body Binding: Ivoroid with herringbone purfling
Rosette: iv/tort/iv & b/w purflings
Backstrip: 2-style (Zipper)
Pickguard: Tortoise
Body Finish: High gloss nitrocellulose lacquer
NECK
Neck: Honduran mahogany
Neck Profile: Modified V
Neck Joint: Mortise & tenon hybrid
Scale Length: 24 7/8"
Fingerboard: Ebony with abalone short diamond & squares
Fingerboard Radius: 14" - 26" compound
Fingerboard Binding: None
Frets: Medium 18% nickel-silver
Nut: Bone, 1 13/16"
Truss Rod: Fully adjustable
Peghead Profile: Tapered slotted square with volute
Peghead Veneer: Stained Exotic Ebony with MOP Collings logo
Peghead Binding: None
Neck Finish: High gloss polyester resin
HARDWARE
Bridge: Ebony pyramid-style with 2 5/16" spacing
Saddle: Bone, drop-in
Bridge Pins/End Pin: Ebony with MOP dot
Tuners: Nickel Waverly
Strings: D'Addario EJ-16 (.012"- .053")
DIMENSIONS
Body Width: 13 3/4"
Body Length: 19"
Body Depth: 4"
Total Length: 37 3/4"
CASE
Case: Deluxe hardshell case
