The 470 JL is Collings' signature electric with Julian Lage, their second model together after the OM1 JL acoustic. Collings describes years of design, prototyping and listening with Lage before the guitar was settled. It is fully hollow with a trestle block, built from solid Honduran mahogany with a maple laminate top, 1 13/16" deep.
The pickups are Ron Ellis Ellisonics with custom adjustable height, run through the 470 wiring of one master volume and two tones. The bridge is a pinned ebony base with a tune-o-matic top and nylon saddles, ahead of a Bigsby B3 vibrato. The neck is Honduran mahogany on a 24 7/8" scale, with an ebony-bound ebony board, graduated pearl dots and a Delrin nut, and relic nickel Waverly tuners with oval buttons on the 470 JL Haircut peghead. The finish is antiqued nitrocellulose lacquer.
For a trestle-braced hollow body with a maple laminate body and neck, look at the 620 SM LC. Collings' options for the 470 JL are listed below.

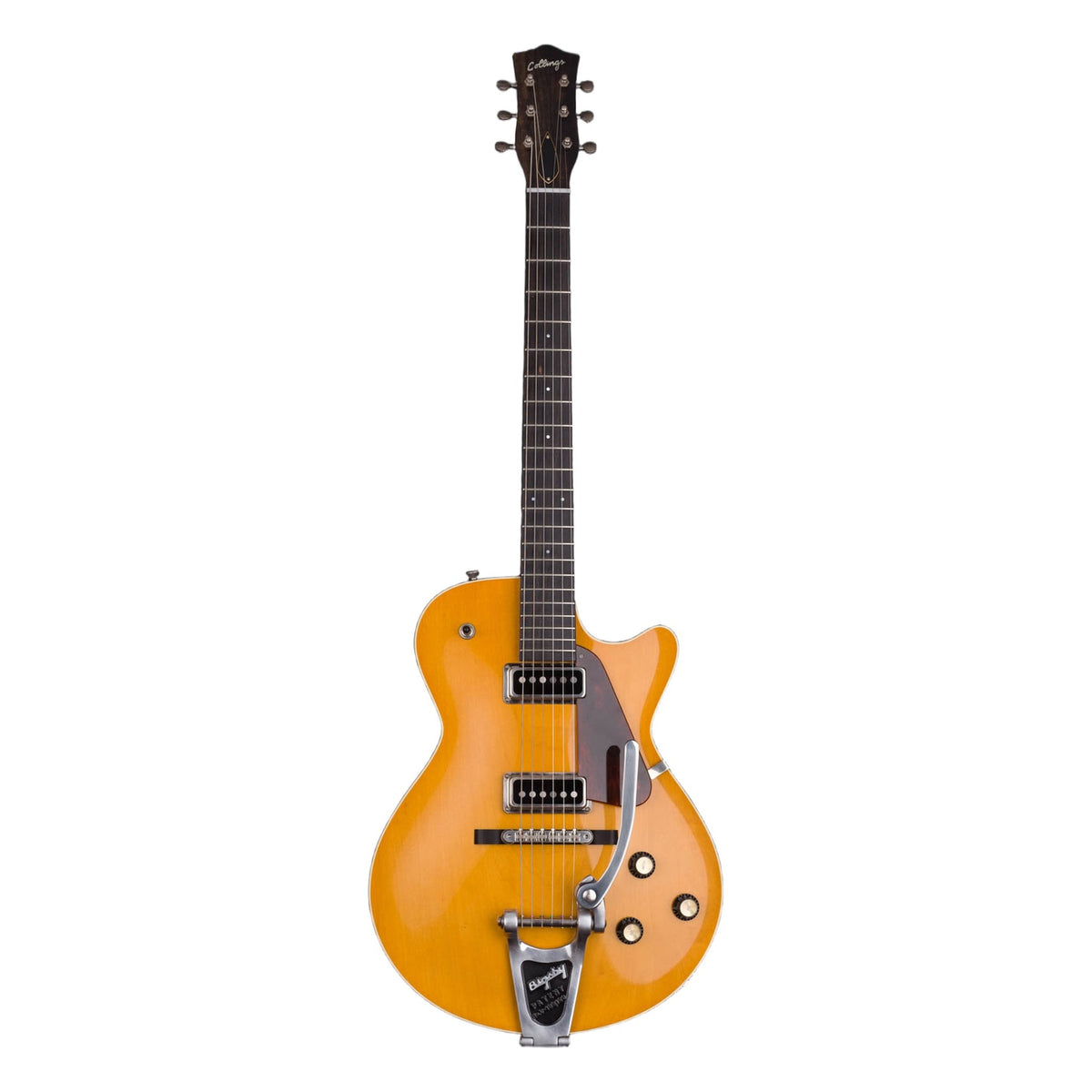

The photo shows one example build.
Options for this model include:
- Nonstandard, premium and metallic finishes
- Aged finish and hardware
- ThroBak humbuckers
- Bigsby vibrato
- Parallelogram or broken glass inlays
- Gold hardware
- 60s neck profile
- Left-handed build
Price subject to change based on options chosen.
SPECIFICATIONS
BODY
Country of Origin: USA (built in Austin, Texas)
Construction: Fully hollow w/ trestle block
Body: Solid Honduran mahogany
Top: Maple laminate
Body Binding: Non-grained ivoroid
Pickguard: Acrylic Tortoise (1-ply) or Parchment (3-Ply)
Guitar Finish: Antiqued nitrocellulose lacquer
NECK
Neck: Honduran mahogany
Neck Joint: Extra long mortise & tenon
Scale Length: 24 7/8"
Fingerboard: Ebony w/ graduated pearl dots
Fingerboard Radius: 12"
Fingerboard Binding: Ebony
Frets: Medium 18% nickel-silver
Nut: 1 11/16" Delrin
Truss Rod Cover: Black/Cream/Black
Peghead Profile: 470 JL Haircut
Peghead Veneer: Ebony w/ MOP Collings Script logo
Peghead Binding: None
ELECTRONICS
Pickups: Ron Ellis Ellisonics (custom adjustable height)
Pickup Rings: Black Phenolic
Pots/Caps: CTS 500K / Jupiter Vintage Yellow
Wiring: 470 Wiring (master volume, two tones)
Knobs: Black/Silver or Black/Gold Reflector Top
HARDWARE
Bridge: Pinned ebony base w/ tune-o-matic saddle top (nylon saddles)
Tailpiece: Bigsby vibrato B3
Tuners: Relic nickel Waverly with vintage oval buttons (16:1 ratio)
Strings: D'Addario NYXL1149 (.011" - .049")
DIMENSIONS
Body Width: 13 1/2"
Body Length: 17 3/8"
Body Depth: 1 13/16"
Total Length: 38 3/4"
CASE
Case: Deluxe hardshell case
