The SoCo LC Deluxe is Collings' laminate SoCo in its dressier trim: grained ivoroid binding on the body, fingerboard and peghead, with custom grained ivoroid knobs, pickup rings and truss rod cover, and no pickguard. Underneath it is a single-cutaway semi-hollow in laminate maple with a solid maple centre block that helps it resist feedback.
The 15" lower bout is the same as the SoCo LC, which Collings builds for comfort and balance, with the single-cut shape adding wood and contact at the neck joint. Lollar Low Wind Imperial humbuckers with 50s-style wiring sit over a Kluson ABR-1 and stop tailpiece, and the Honduran mahogany neck joins on an extra-long mortise and tenon with a 24 7/8" scale and a 1 11/16" nut.
The SoCo LC is the same guitar in its standard trim, and the SoCo Deluxe brings a hand-carved flamed maple top over mahogany. It can be built up with Collings' options for finishes, trim, inlays and more, listed below.

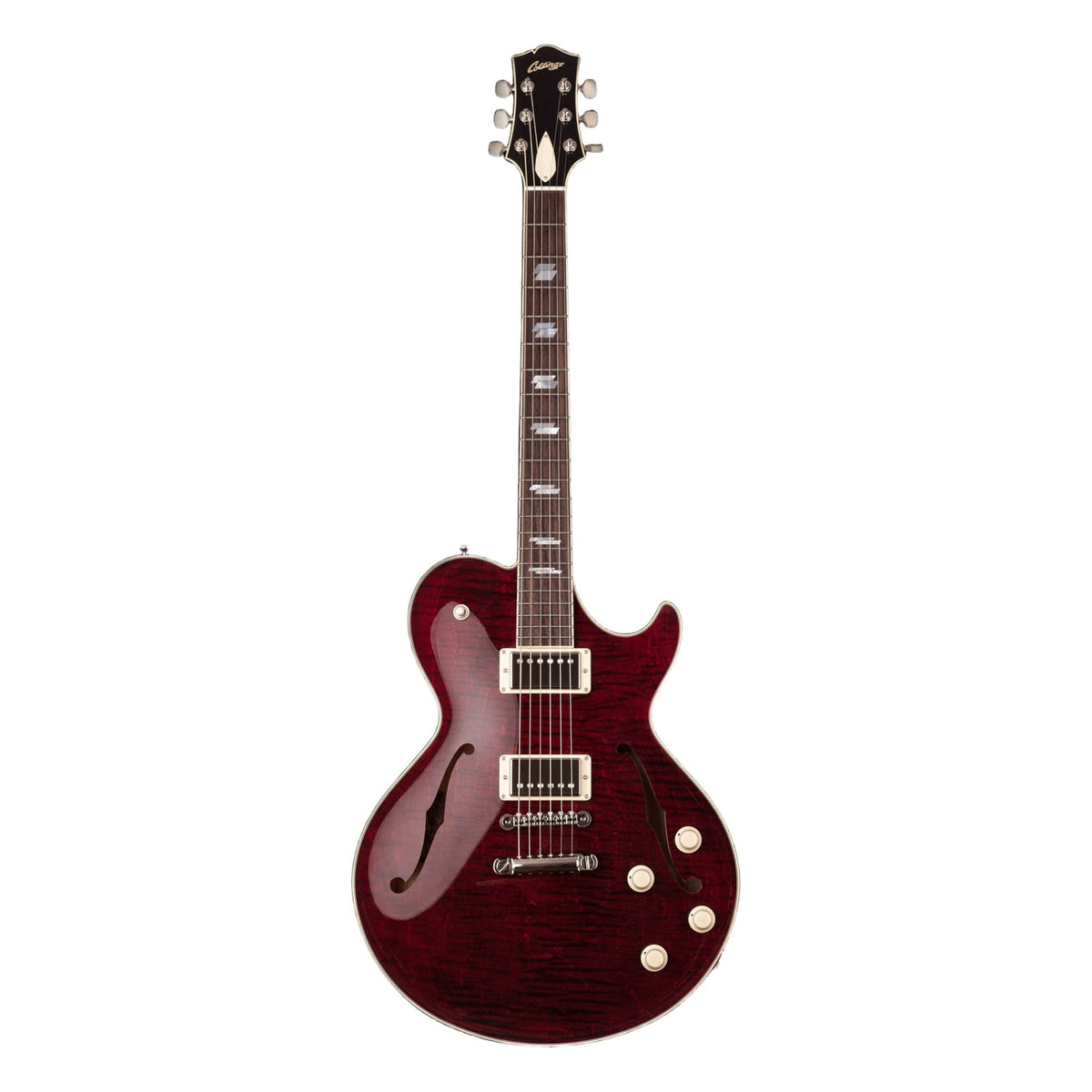

The photo shows one example build.
Options for this model include:
- Nonstandard, premium and metallic finishes
- Aged finish and hardware
- ThroBak humbuckers
- Bigsby vibrato
- Parallelogram or broken glass inlays
- Gold hardware
- 60s neck profile
- Left-handed build
Price subject to change based on options chosen.
SPECIFICATIONS
BODY
Country of Origin: USA (built in Austin, Texas)
Construction: Semi hollow w/ maple center block
Body: Maple laminate
Top: Maple laminate
Soundhole: F-holes (unbound)
Body Binding: Grained ivoroid
Pickguard: None
Guitar Finish: High gloss nitrocellulose lacquer
NECK
Neck: Honduran mahogany
Neck Joint: Extra long mortise & tenon
Scale Length: 24 7/8"
Fingerboard: Rosewood w/ MOP long dots
Fingerboard Radius: 12"
Fingerboard Binding: Grained ivoroid
Frets: Medium 18% nickel-silver
Nut: 1 11/16"
Truss Rod Cover: Grained ivoroid
Peghead Profile: Haircut
Peghead Veneer: Ebony w/ MOP Collings logo
Peghead Binding: Grained ivoroid
ELECTRONICS
Pickups: Lollar Low Wind Imperial Humbuckers
Pickup Rings: Custom grained ivoroid
Pots/Caps: CTS 500K / Jupiter Vintage Yellow
Wiring: 50s style
Knobs: Custom grained ivoroid top hat
HARDWARE
Bridge: Kluson ABR-1(nickel-plated zinc w/ retaining wire)
Tailpiece: Kluson Stop Tailpiece (nickel-plated zinc, steel studs)
Tuners: Nickel Gotoh w/ Collings logo
Strings: D'Addario NYXL1149 (.011" - .049")
DIMENSIONS
Body Width: 15"
Body Length: 19"
Body Depth: 1 5/8"
Total Length: 40 1/4"
CASE
Case: Deluxe hardshell case
