The SoCo 16 LC is the larger SoCo: a single-cutaway semi-hollow with a 16" lower bout, an inch wider than the SoCo LC, which Collings gives it for more low end. The top, back and sides are maple laminates Collings makes in its Austin shop, built around a solid maple centre block that helps the guitar resist feedback at volume.
The electronics are a pair of Lollar Low Wind Imperial humbuckers with CTS pots, Jupiter Vintage Yellow caps and 50s-style wiring, over a Kluson ABR-1 bridge and stop tailpiece. The mahogany neck joins on an extra-long mortise and tenon, with a 24 7/8" scale, a 1 11/16" nut and a 12" radius on rosewood with long mother-of-pearl dots. Collings has it covering warm jazz through to bright, open leads.
For the 15" body with the same electronics, look at the SoCo LC, and the SoCo Deluxe is the carved solid-wood version. It can be built up with Collings' options for finishes, trim, inlays and more, listed below.

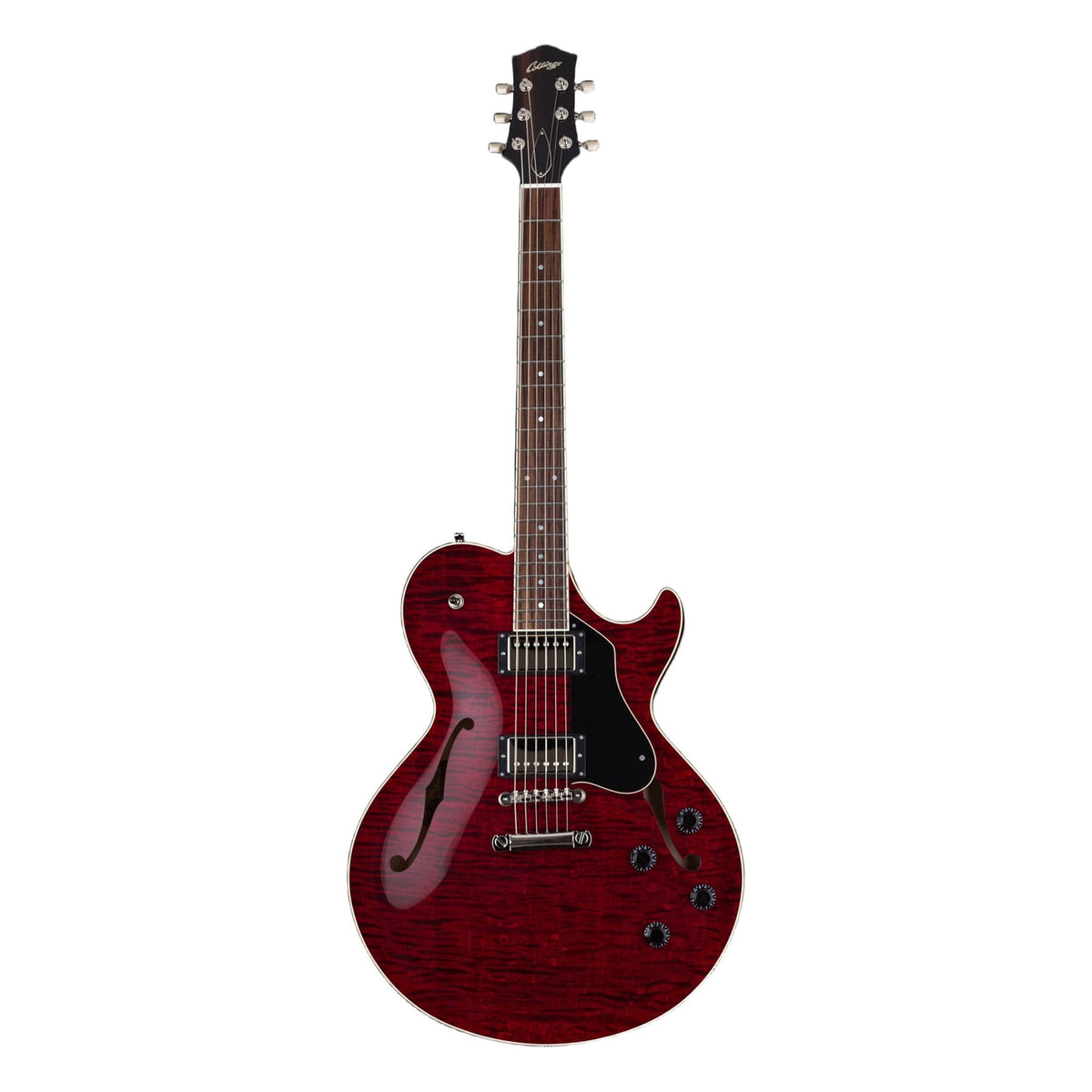

The photo shows one example build.
Options for this model include:
- Nonstandard, premium and metallic finishes
- Aged finish and hardware
- ThroBak humbuckers
- Bigsby vibrato
- Parallelogram or broken glass inlays
- Gold hardware
- 60s neck profile
- Left-handed build
Price subject to change based on options chosen.
SPECIFICATIONS
BODY
Country of Origin: USA (built in Austin, Texas)
Construction: Semi hollow w/ maple center block
Body: Maple laminate
Top: Maple laminate
Soundhole: F-holes (unbound)
Body Binding: Non-grained ivoroid
Pickguard: Black/Cream/Black
Guitar Finish: High gloss nitrocellulose lacquer
NECK
Neck: Honduran mahogany
Neck Joint: Extra long mortise & tenon
Scale Length: 24 7/8"
Fingerboard: Rosewood w/ MOP long dots (5mm non-tapered)
Fingerboard Radius: 12"
Fingerboard Binding: Non-grained ivoroid
Frets: Medium 18% nickel-silver
Nut: 1 11/16"
Truss Rod Cover: Black/Cream/Black
Peghead Profile: Haircut
Peghead Veneer: Ebony w/ MOP Collings logo
Peghead Binding: None
ELECTRONICS
Pickups: Lollar Low Wind Imperial Humbuckers
Pickup Rings: Cream or black
Pots/Caps: CTS 500K / Jupiter Vintage Yellow
Wiring: 50s style
Knobs: Amber or black top hat
HARDWARE
Bridge: Kluson ABR-1(nickel-plated zinc w/ retaining wire)
Tailpiece: Kluson Stop Tailpiece (nickel-plated zinc, steel studs)
Tuners: Nickel Gotoh w/ Collings logo
Strings: D'Addario NYXL1149 (.011" - .049")
DIMENSIONS
Body Width: 16"
Body Length: 20 1/4"
Body Depth: 1 5/8"
Total Length: 42 5/8"
CASE
Case: Deluxe hardshell case
