The CW Mh A is the Collings Winfield in Honduran mahogany, named for the Walnut Valley Festival in Winfield, Kansas. It starts from Collings' standard dreadnought and adds the things flatpickers ask for: an Adirondack spruce top braced in Adirondack, an enlarged soundhole, and a pre-war scalloped X-brace without a tongue brace, modelled on the earliest 14-fret dreadnoughts. Collings voices it for headroom and projection when the playing gets aggressive.
The Dalmatian pickguard and the uninlaid ebony fingerboard mark it as a Winfield. On the mahogany model the body and board are bound in tortoise, the rosette is black and white purfling and the backstrip is walnut. The Modified V neck has a 1 23/32" bone nut, and the belly bridge spaces the strings at 2 1/4".
For the rosewood Winfield, look at the CW Indian A, and for Collings' standard mahogany dreadnought, the D1. Collings' options for finishes, trim and more are listed below.

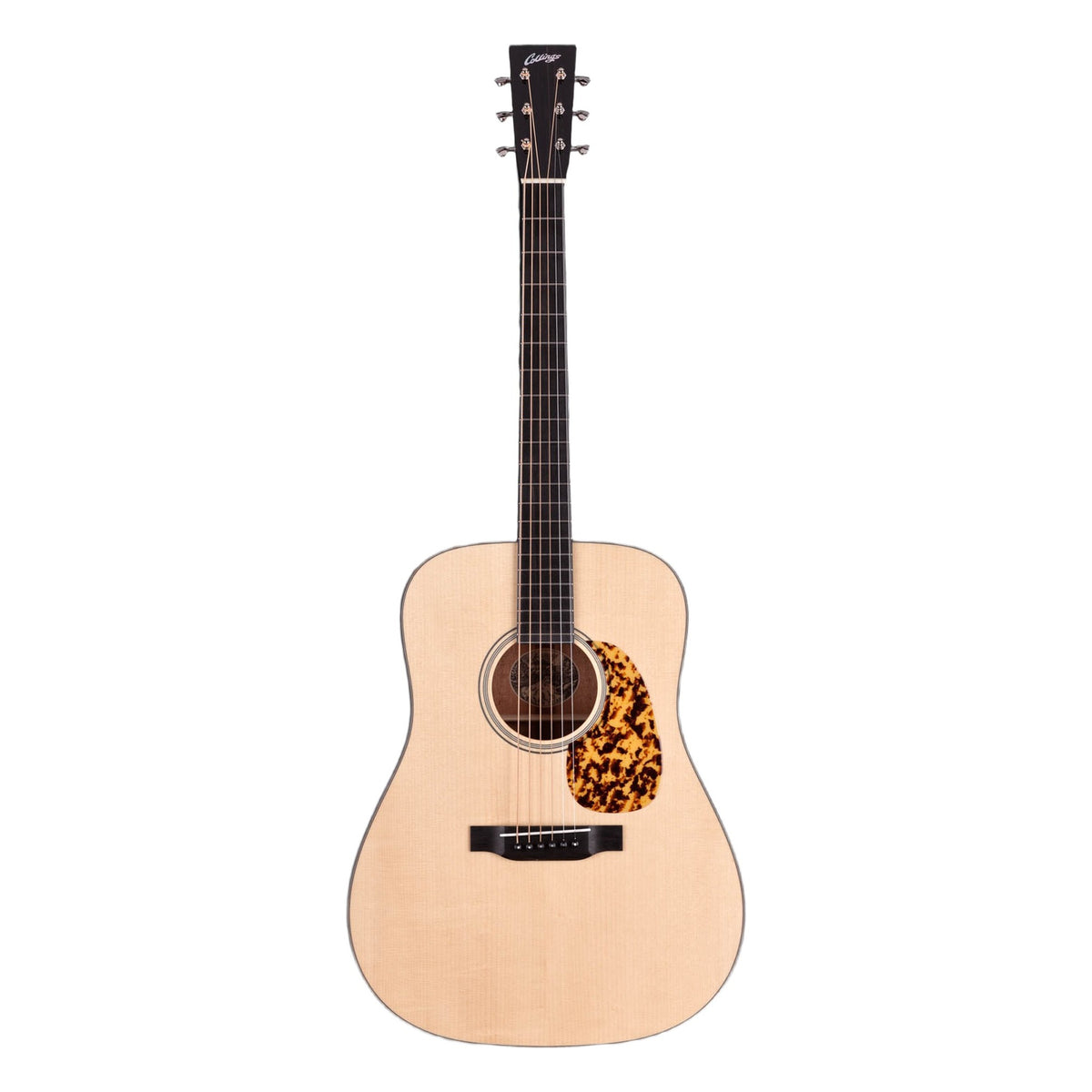

The photo shows one example build.
Options for this model include:
- Adirondack, old-growth Sitka, European, Engelmann or torrefied spruce top
- Figured mahogany, cocobolo or figured maple back and sides
- Sunburst or Western shaded top, full-body sunburst, Doghair or Jet Black finish
- Adirondack bracing
- Abalone rosette or abalone top border
- Wood binding
- Peghead inlays (Torch, Flowerpot, Vine, Flourish, Rose)
- Fingerboard inlays (snowflakes, Tree of Life and others)
- Nut width and neck options
- Left-handed build
Price subject to change based on options chosen.
SPECIFICATIONS
BODY
Country of Origin: USA (built in Austin, Texas)
Top: Adirondack spruce
Back & Sides: Honduran mahogany
Brace Material: Adirondack spruce
Brace Pattern: Pre-war scalloped X-brace (no soundboard graft (tongue brace))
Soundhole: Enlarged
Body Binding: Tortoise with b/w/b/w top purfling
Rosette: b/w Purfling
Backstrip: 1-style (Walnut)
Pickguard: Dalmatian
Body Finish: High gloss nitrocellulose lacquer
NECK
Neck: Honduran mahogany
Neck Profile: Modified V
Neck Joint: Mortise & tenon hybrid
Scale Length: 25 1/2"
Fingerboard: Ebony with no inlay
Fingerboard Radius: 14" - 26" compound
Fingerboard Binding: .100" Tortoise with b/w purfling
Frets: Medium 18% nickel-silver
Nut: Bone, 1 23/32"
Truss Rod: Fully adjustable
Peghead Profile: Square
Peghead Veneer: Ebony with MOP Collings logo
Peghead Binding: None
Neck Finish: High gloss polyester resin
HARDWARE
Bridge: Ebony belly-style with 2 1/4" spacing
Saddle: Bone, cutthrough
Bridge Pins/End Pin: Ebony with MOP dot
Tuners: Nickel Waverly
Strings: D'Addario EJ-17 (.013"- .056")
DIMENSIONS
Body Width: 15 5/8"
Body Length: 20"
Body Depth: 4 7/8"
Total Length: 40 1/4"
CASE
Case: Deluxe hardshell case
