The Eastside LC Deluxe takes Collings' full-depth jazz archtop and binds it throughout. Non-grained ivoroid runs around the body, the fingerboard, the peghead, the S-holes and the ebony pickguard, and the peghead takes the Deluxe Flared Haircut outline with custom ebony top hat knobs below. Underneath it is the Eastside LC: fully hollow and parallel-braced in maple laminate, 16" across the lower bout and 2 1/2" deep.
A single Lollar Charlie Christian pickup sits at the neck, with an adjustable ebony bridge and ebony tailpiece. Collings designed the Eastside for the professional jazz player and voices it full and warm. The Honduran mahogany neck has a 1 11/16" nut and a 24 7/8" scale, and the guitar comes strung with D'Addario 12s with a wound third.
The Eastside LC is the same body and electronics with unbound board, peghead and S-holes. For a thinner 15" body, look at the Eastside Jazz LC. Collings' options for tops, finishes, trim and inlays follow below.

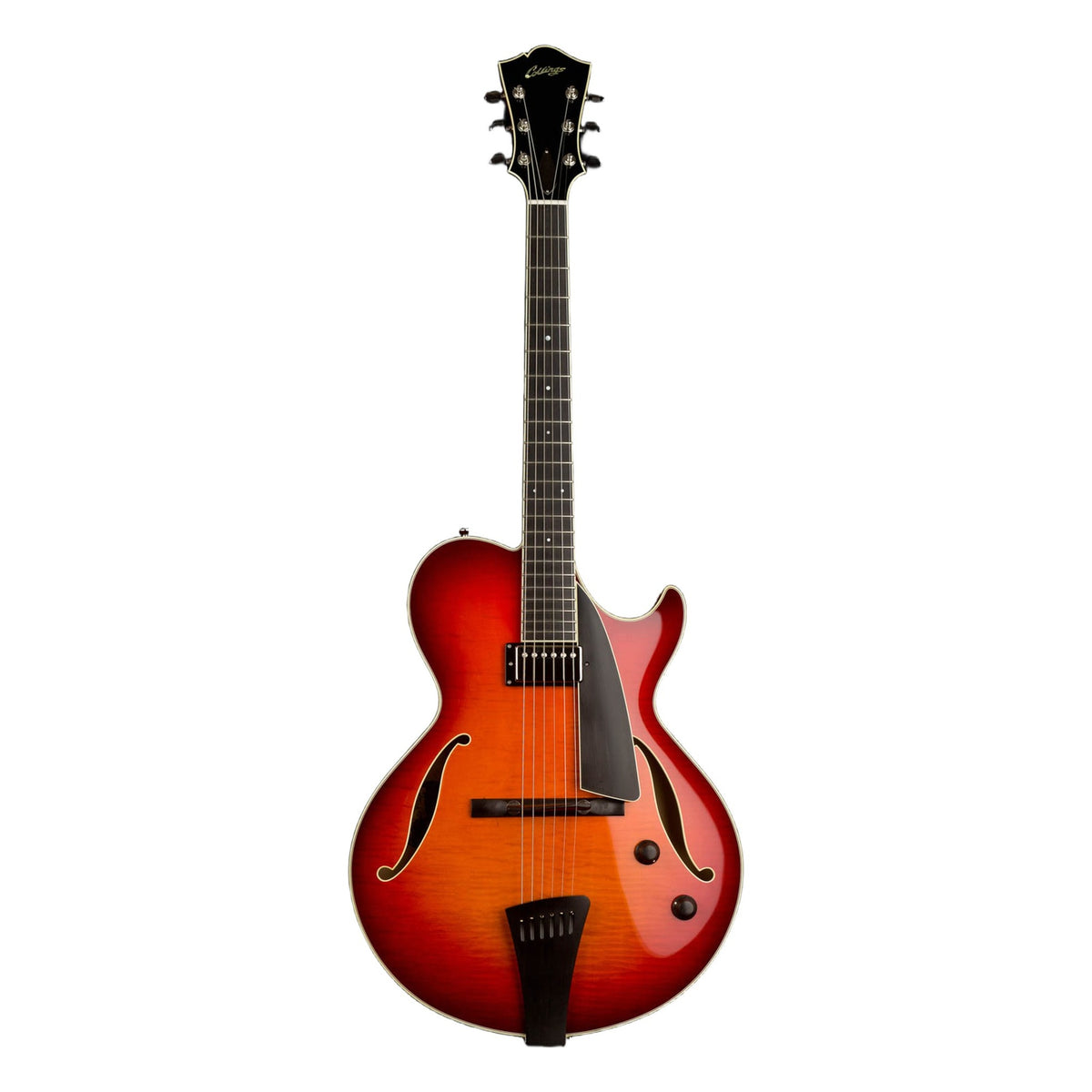

The photo shows one example build.
Options for this model include:
- Nonstandard, premium and metallic finishes
- Aged finish and hardware
- ThroBak humbuckers
- Bigsby vibrato
- Parallelogram or broken glass inlays
- Gold hardware
- 60s neck profile
- Left-handed build
Price subject to change based on options chosen.
SPECIFICATIONS
BODY
Country of Origin: USA (built in Austin, Texas)
Construction: Fully hollow parallel-braced
Body: Maple laminate
Top: Maple laminate
Soundhole: S-holes (bound)
Body Binding: Non-grained ivoroid
Pickguard: Ebony w/ non-grained ivoroid binding
Guitar Finish: High gloss nitrocellulose lacquer
NECK
Neck: Honduran mahogany
Neck Joint: Extra long mortise & tenon
Scale Length: 24 7/8"
Fingerboard: Rosewood w/ MOP long dots
Fingerboard Radius: 12"
Fingerboard Binding: Non-grained ivoroid
Frets: Medium 18% nickel-silver
Nut: 1 11/16"
Truss Rod Cover: Ebony
Peghead Profile: Deluxe Flared Haircut
Peghead Veneer: Ebony w/ MOP Collings logo
Peghead Binding: Non-grained ivoroid
ELECTRONICS
Pickups: Single Lollar Charlie Christian (neck)
Pickup Rings: Black
Pots/Caps: CTS 500K / Jupiter Vintage Yellow
Wiring: Modern
Knobs: Custom ebony top hat
HARDWARE
Bridge: Adjustable ebony
Tailpiece: Ebony
Tuners: Nickel Gotoh w/ Collings logo
Strings: D'Addario NYXL1252W (.012" - .052", Wound 3rd)
DIMENSIONS
Body Width: 16"
Body Length: 20 1/4"
Body Depth: 2 1/2"
Total Length: 42 5/8"
CASE
Case: Deluxe hardshell case
