The Nocaster is the early 1951 Telecaster that left the factory with the Broadcaster name clipped off its decal, and this Time Machine model copies it closely: two-piece select ash with the offset seam, Aged Nocaster Blonde nitro, a black phenolic pickguard and a three-saddle bridge with brass saddles.
The 1951 "U" neck is one-piece rift sawn maple and fills the hand, on a 7.25" to 9.5" vintage compound radius with Jescar Vintage frets and a 1.625" nut. Two Custom Shop Hand-Wound '51 Nocaster pickups use the original wiring idea: position one is the bridge pickup with a blend knob to bring in the neck, position two is the neck alone with no tone control, and position three is the neck with a preset deep rhythm tone. There is no conventional tone knob.

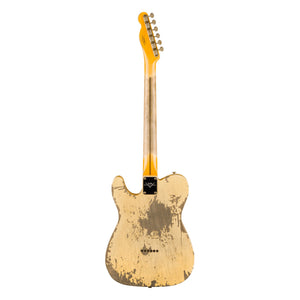

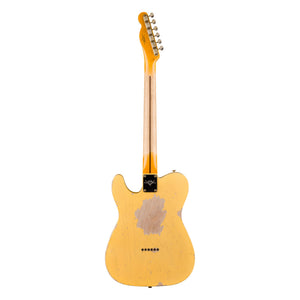

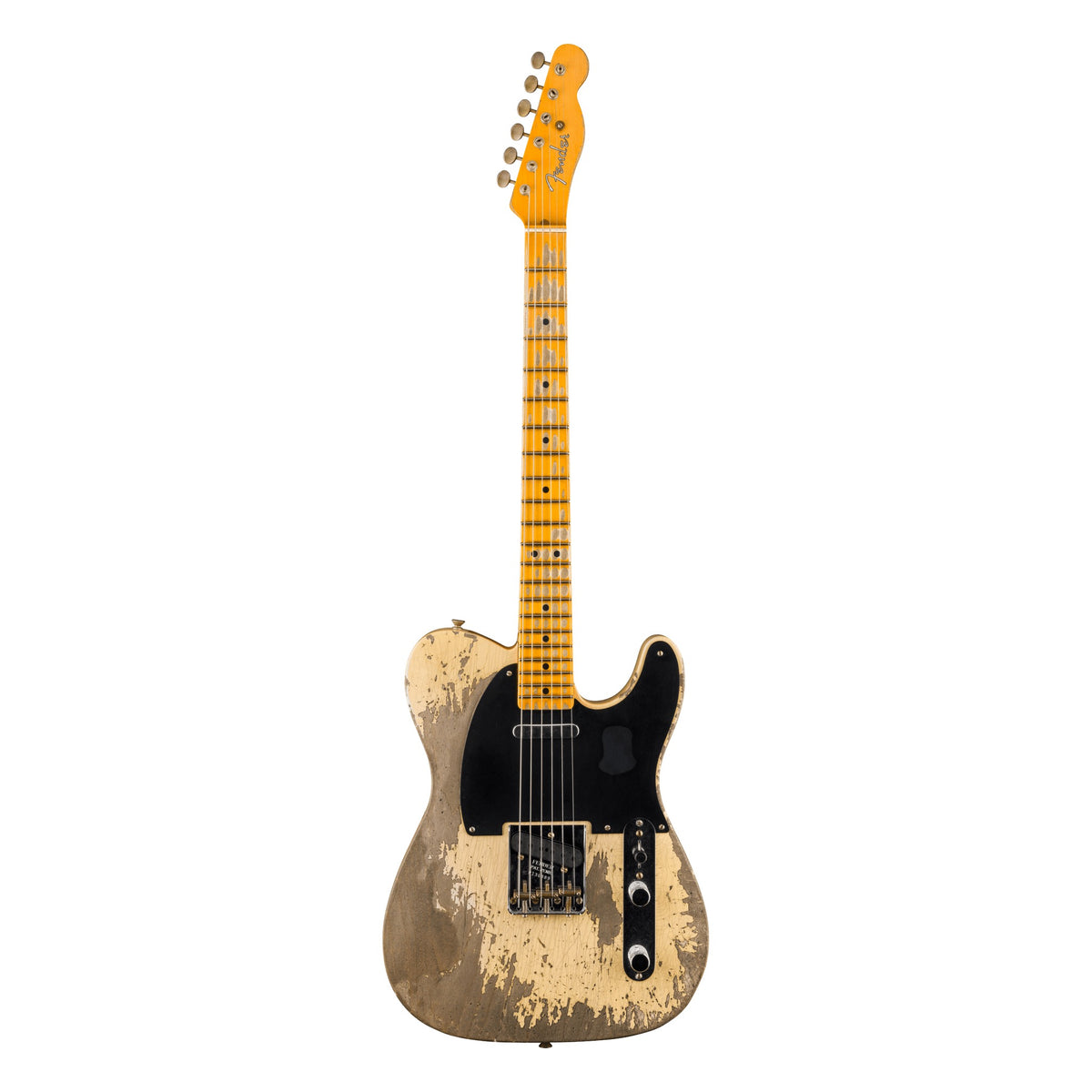

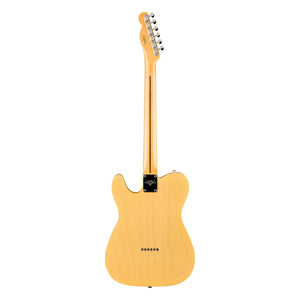

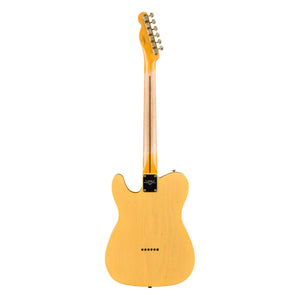

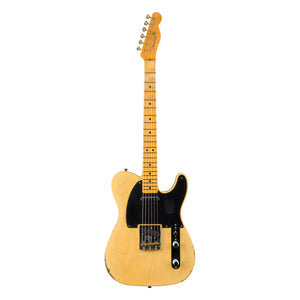

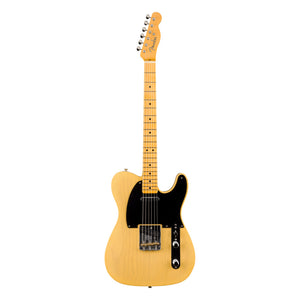

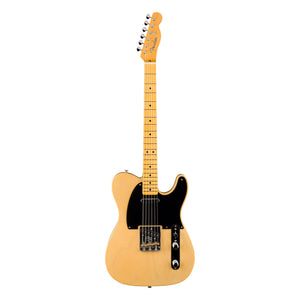

Six aging levels are on offer: NOS, DLX Closet Classic, Journeyman Relic, Relic, Heavy Relic and Super Heavy Relic. For conventional three-way wiring and a little more output, look at the 1954 Telecaster.

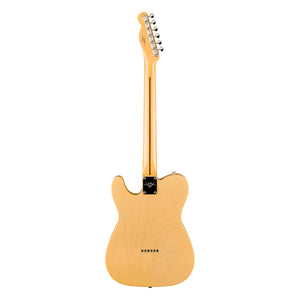

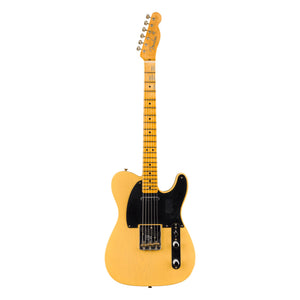

The photos show one example. Wood grain and aging vary from guitar to guitar, so the one built for you will differ in the details.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Material: 2-Piece Select Ash with Offset Seam
Body Finish: Nitrocellulose Lacquer
Body Shape: Nocaster
Pickguard: 1-Ply Black Phenolic
Aging: By finish, as shown
NECK
Neck Material: 1-Piece Rift Sawn Maple
Neck Finish: Nitrocellulose Lacquer
Neck Shape: 1951 "U"
Fingerboard Radius: 7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)
Fingerboard Material: 1-Piece Rift Sawn Maple Neck
Position Inlays: Black Micarta Dot - 0.25"
Number of Frets: 21
Fret Size: Jescar Vintage (45085)
Truss Rod: Vintage-Style Heel Adjust
Nut Material: Bone
Nut Width: 1.625" (41.3 mm)
Scale Length: 25.5" (648 mm)
ELECTRONICS
Bridge Pickup: Custom Shop Hand-Wound '51 Nocaster
Neck Pickup: Custom Shop Hand-Wound '51 Nocaster
Pickup Configuration: SS
Controls: Master Volume, Bridge/Neck Blend (Position 1 Only)
Switching: 3-Position Blade: Position 1. Bridge Pickup (Neck Pickup with Blend control), Position 2. Neck Pickup with No Tone control, Position 3. Neck Pickup with Preset Deep Rhythm Tone
HARDWARE
Bridge: 3-Saddle '51 Nocaster with Brass Saddles
Hardware Finish: Nickel/Chrome
Tuning Machines: Vintage-Style with Fender Logo
Control Knobs: Nocaster Chrome Relic or Knurled Chrome (by finish)
Strings: Nickel Plated Steel (.010-.046 Gauges)
CASE
Case: Deluxe Hardshell
