The Esquire is the one-pickup Telecaster, and this 1956 version keeps it that simple: a 2-piece select ash body, a 1-piece quartersawn maple neck, and a single Custom Shop Hand-Wound '55-'56 Single-Coil Tele in the bridge. The body wears a Relic finish while the hardware gets the lighter Closet Classic treatment, so the metal parts look less worn than the body.
The three-way switch is the Esquire's party trick. Position 1 sends the pickup straight to the jack with no volume or tone in the circuit, position 2 adds the volume control, and position 3 brings in the tone control as well. The neck is an 11/56 Off Center "V", and the 7.25" to 9.5" compound radius feels round near the nut and flattens out higher up for bends. Brass saddles sit on a strings-through-body bridge.
For two pickups on the same early recipe, look at the 1954 Telecaster or the 1955 Telecaster Journeyman Relic with Closet Classic Hardware. The Vintage Custom '59 Esquire is the same idea a few years on, with no aging.

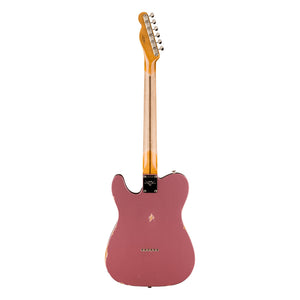

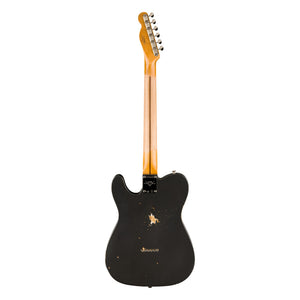

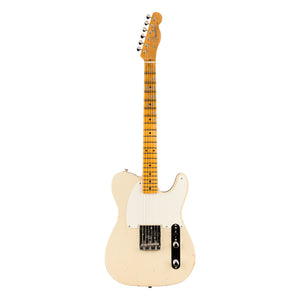

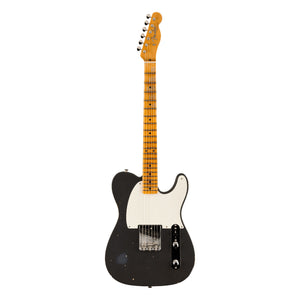

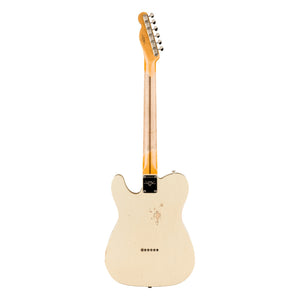

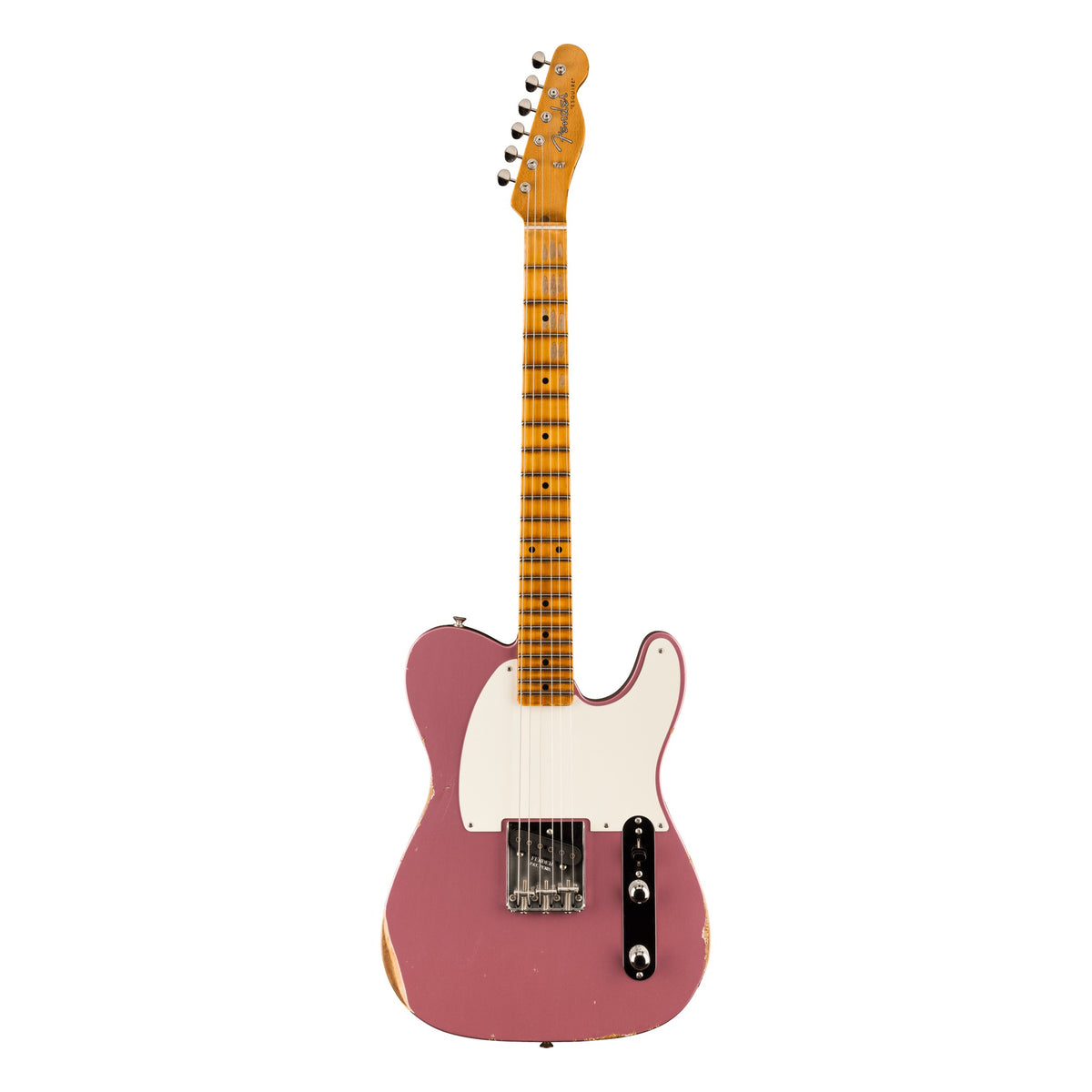

Three finishes: Super Faded Burgundy Mist Metallic, Super Aged Charcoal Frost Metallic and Aged '55 Desert Tan, all with a maple neck.
The photos show one example. Wood grain and aging vary from guitar to guitar, so the one built for you will differ in the details.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Material: 2-Piece Select Ash
Body Finish: Nitrocellulose Lacquer
Body Shape: Telecaster
Pickguard: 1-Ply Parchment or 1-Ply Parchment Vinyl (by finish)
Aging: Relic with Closet Classic Hardware
NECK
Neck Material: 1-Piece Quartersawn Maple
Neck Finish: Nitrocellulose Lacquer
Neck Shape: 11/56 Off Center "V"
Fingerboard Radius: 7.25" to 9.5" Vintage Compound Radius (184 mm to 241 mm)
Fingerboard Material: 1-Piece Quartersawn Maple Neck
Position Inlays: Black Micarta Dot - 0.25"
Number of Frets: 21
Fret Size: Narrow Tall (6105)
Truss Rod: Vintage-Style Heel Adjust
Nut Material: Bone
Nut Width: 1.650" (42 mm)
Scale Length: 25.5" (648 mm)
ELECTRONICS
Bridge Pickup: Custom Shop Hand-Wound '55-'56 Single-Coil Tele
Pickup Configuration: Single Coil
Controls: Master Volume, Master Tone
Switching: 3-Position Blade: Position 1. Pickup Straight to Output Jack, Position 2. Pickup with Volume Control, Position 3. Pickup with Volume and Tone Control
HARDWARE
Bridge: 3-Saddle American Vintage Strings-Through-Body Tele with Brass Saddles
Hardware Finish: Nickel/Chrome
Tuning Machines: Vintage-Style with Fender Logo
Control Knobs: Knurled Chrome
Strings: Nickel Plated Steel (.010-.046 Gauges)
CASE
Case: Deluxe Hardshell
