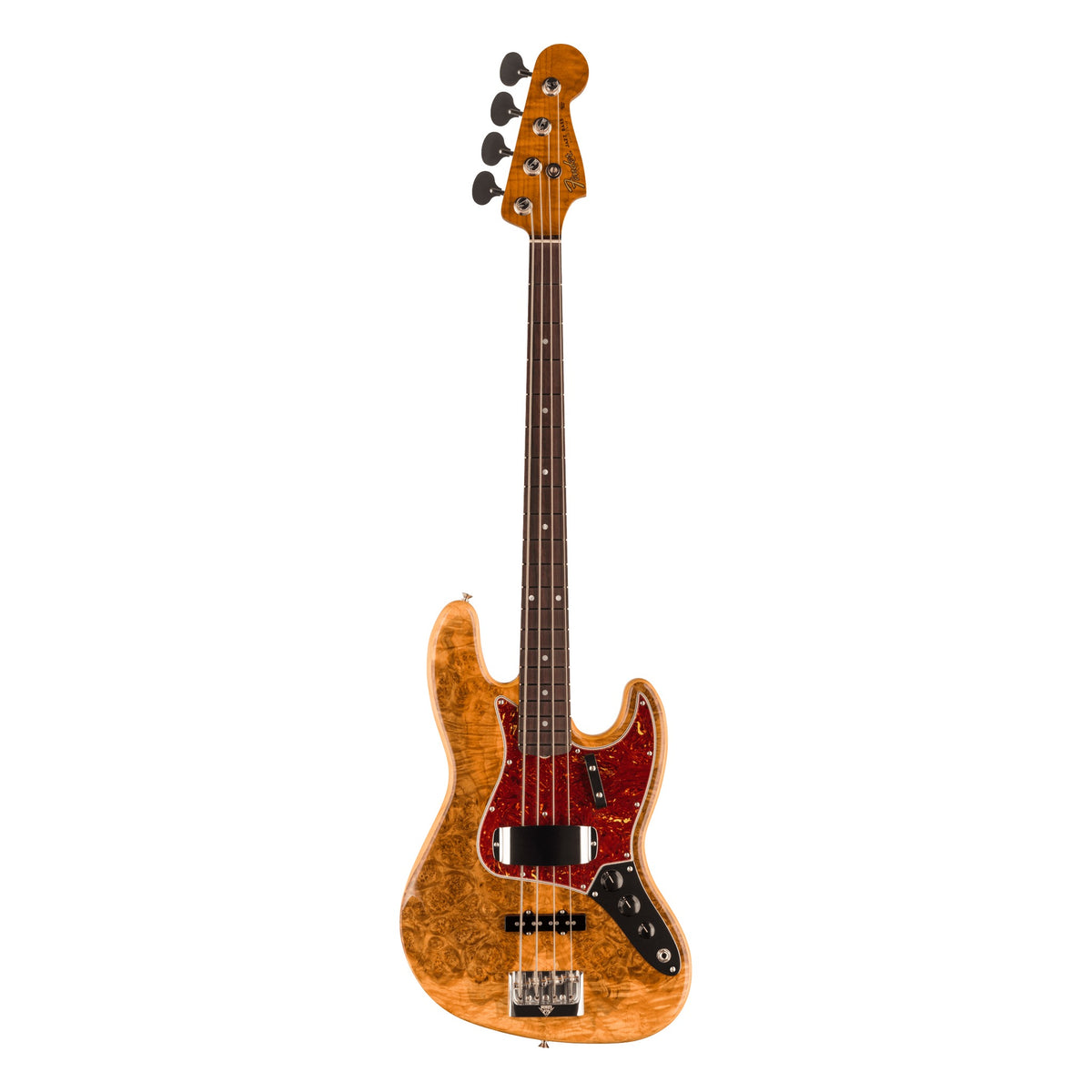

The Artisan Maple Burl Jazz Bass puts a maple burl top on a two-piece select ash body with an offset seam, finished in Aged Natural in NOS condition with a 4-ply brown shell pickguard. The neck is 3A roasted flame maple with a 3A Rosewood fingerboard.
Two Custom Shop Hand-Wound '60s Jazz Bass Heavy Beveled Alnico V pickups run with a volume for each and a master tone, the classic Jazz Bass layout. The 1960 Jazz Bass "U" is a full, rounded carve, paired with the narrow 1.5" bone nut, a 9.5" radius and 20 Medium Jumbo (6150) frets. An RSD Designed HiMass bridge and vintage oval paddle tuners finish it.
The Artisan Maple Burl Jazz Bass Relic is the aged version. For the same neck carve on an ash body without the burl top, see the American Custom Jazz Bass NOS.

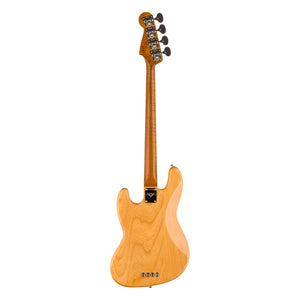

The photos show one example. Wood grain and aging vary from bass to bass, so the one built for you will differ in the details.
SPECIFICATIONS
BODY
Country of Origin: USA
Body Material: 2-Piece Select Ash with Offset Seam
Body Finish: WLS Undercoat
Body Shape: Jazz Bass
Pickguard: 4-Ply Brown Shell
Aging: NOS
NECK
Neck Material: 3A Roasted Flame Maple
Neck Finish: Nitrocellulose Lacquer
Neck Shape: 1960 Jazz Bass "U"
Fingerboard Radius: 9.5" (241 mm)
Fingerboard Material: 3A Rosewood
Position Inlays: Mother of Pearl Dot - 0.25"
Number of Frets: 20
Fret Size: Medium Jumbo (6150)
Truss Rod: Vintage-Style Heel Adjust
Nut Material: Bone
Nut Width: 1.5" (38.1 mm)
Scale Length: 34" (864 mm)
ELECTRONICS
Bridge Pickup: Custom Shop Hand-Wound '60s Jazz Bass Heavy Beveled Alnico V
Neck Pickup: Custom Shop Hand-Wound '60s Jazz Bass Heavy Beveled Alnico V
Pickup Configuration: SS
Controls: Volume 1. (Middle Pickup), Volume 2. (Bridge Pickup), Master Tone
Switching: None
HARDWARE
Bridge: RSD Designed HiMass
Hardware Finish: Nickel/Chrome
Tuning Machines: Vintage Oval Paddle
Control Knobs: Black Plastic with White Indicator
Strings: Nickel Plated Steel (.045-.105 Gauges)
CASE
Case: Deluxe Hardshell
