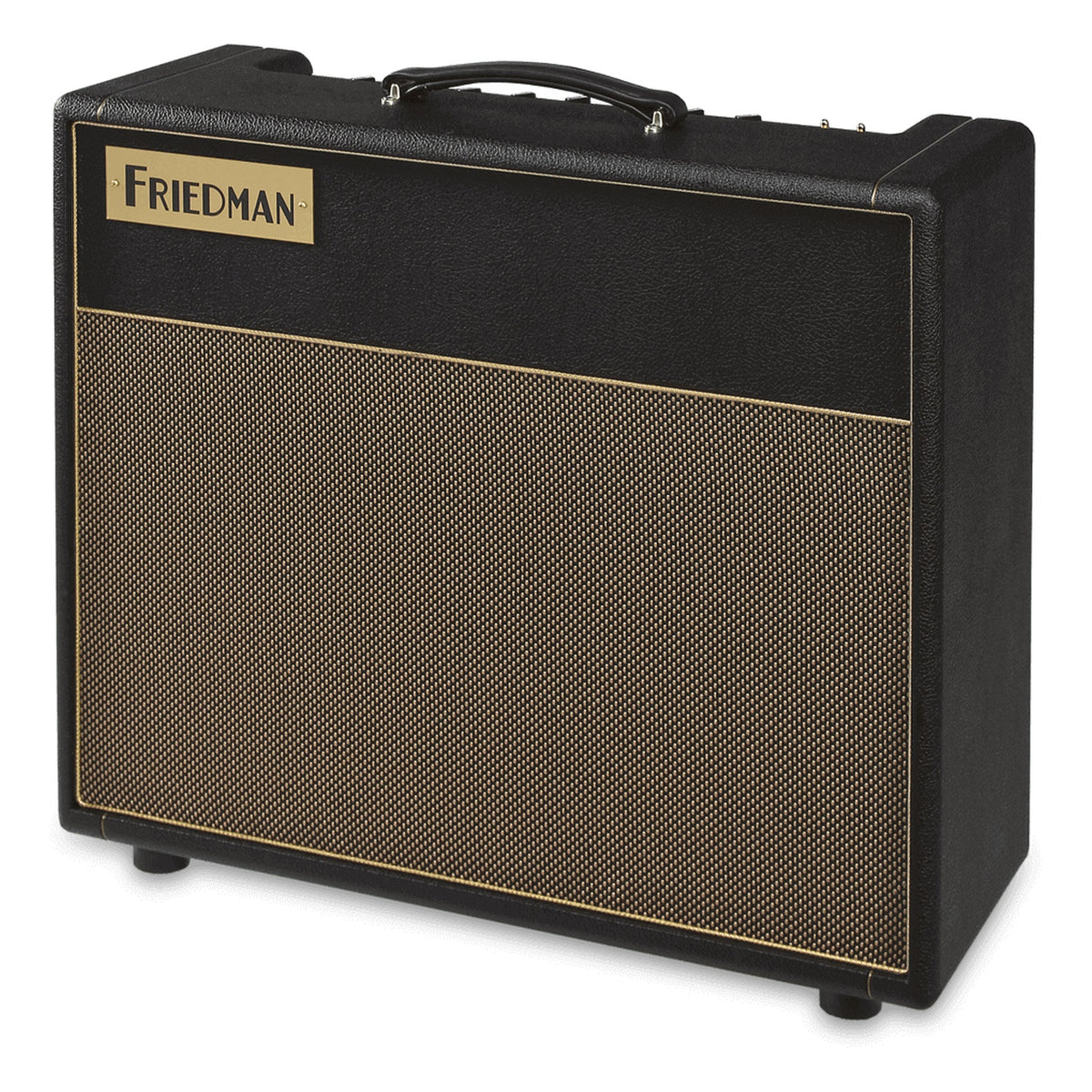

The Smallbox 1x12 Combo is the 50-watt Smallbox in a tongue and groove Baltic Birch cabinet with a 16 ohm Celestion G12H Redback. Two EL34s and three 12AX7s drive two channels: a plexi channel that runs from clean to a full roar and cleans up off the guitar's volume knob, and Friedman's modern high-gain channel.
Each channel gets its own gain and master over a shared Bass, Middle, Treble and Presence. The clean channel has a 3-position Bright switch, the footswitch is a single button with an LED, and there is a line out with level control and a series effects loop for delays and rack gear.
The Smallbox Head is the same amp at 33.5 lbs. for players who already own a cabinet. The combo comes in at 52.5 lbs. with its speaker, the same footprint as the Dirty Shirley and Twin Sister combos, and it is the one of the three that pairs a plexi channel with a dedicated high-gain channel.
SPECIFICATIONS
AMPLIFIER
Country of Origin: United States
Configuration: 50-Watt all tube 1x12" combo
Channels: Two channels
Transformers: Custom USA made transformers
TUBES
Power Tubes: 2 x EL-34
Preamp Tubes: 3 x 12AX7
CONTROLS
Gain and Volume: Two master volumes and two gain controls
EQ: Shared channel EQ consisting of bass, middle, treble and presence
Bright: Clean channel (think Plexi) has a 3 position bright switch
SPEAKERS
Speaker: Celestion 16 Ohm G12H 12" Redback speaker (150w)
CABINET
Construction: Tolex over tongue and groove Baltic Birch
CONNECTIONS
Line Out: Line out with level control
Effects Loop: Ultra transparent series FX loop
Impedance: 4, 8 and 16 ohm Impedance selector switch
FEATURES
Limited Lifetime Warranty
DIMENSIONS
Dimensions: 9.5″ (D) x 24.25″ (W) x 22 (H)
Weight: 52.5 lbs.
ACCESSORIES
Footswitch: Single button footswitch with LED
