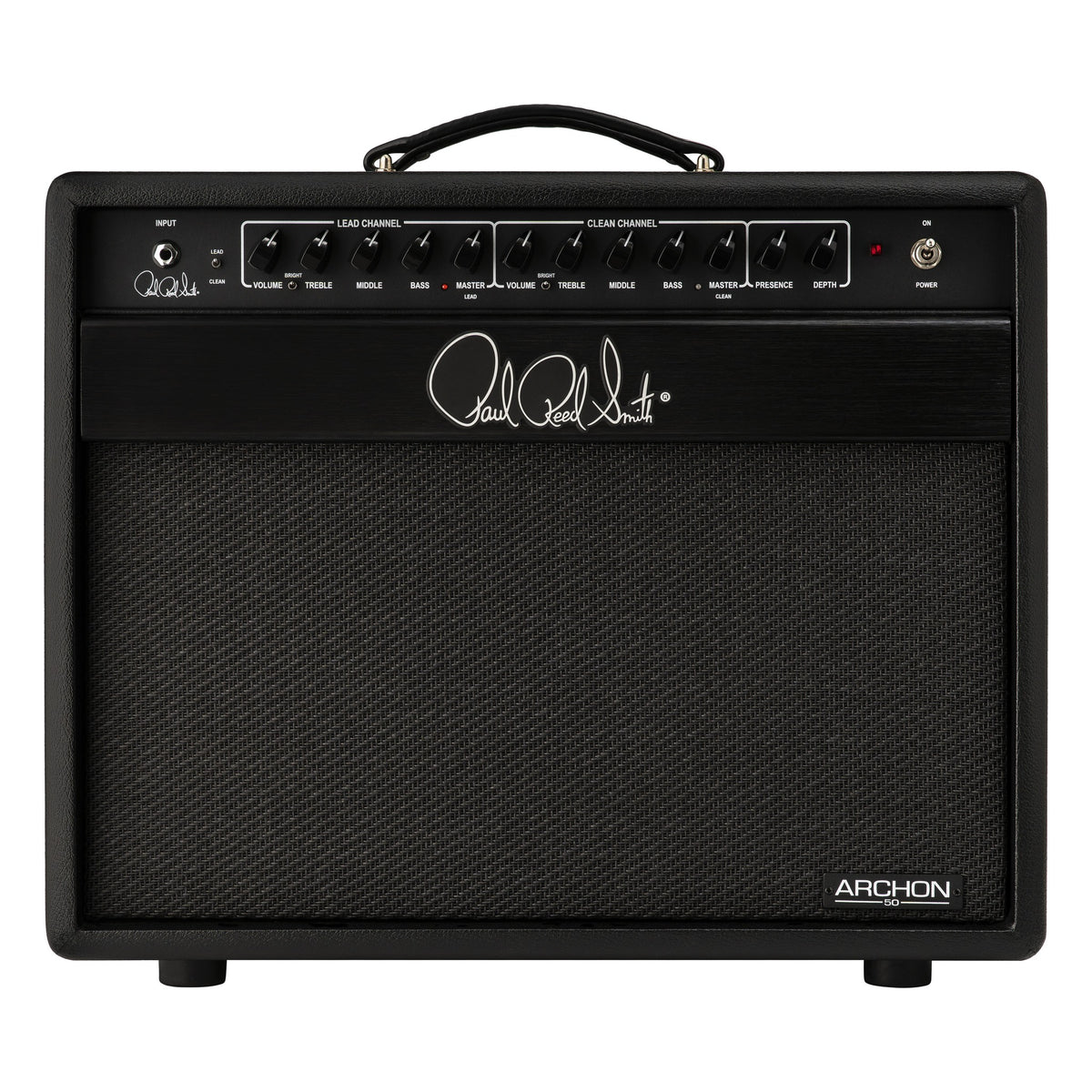

The Archon 50 1x12 Combo carries the Archon 50 circuit, two channels and 50 watts, into a cabinet with one Celestion V-Type 70W speaker. It weighs 42.8 lbs and is covered in black textured vinyl with a black British-style knitted grill.

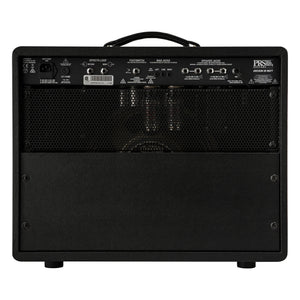

The Lead channel's five gain stages and the Clean channel's headroom are as on the head, and each side has its own volume, master, bright switch and 3-band EQ. PRS describes the bright switch as close to a treble boost, minus the harshness. Presence and Depth are global, and the tube-driven loop and five extension speaker jacks are on the back.
Take the combo if the amp travels with you every week and you'd rather not carry a cab. The Archon 50 Head is the route to a 2x12 or 4x12, and the Archon Classic 50 1x12 Combo is its rock-voiced sibling in the same format.
SPECIFICATIONS
AMPLIFIER
Country of Origin: Indonesia
Available Configurations: 1x12 Combo, Head
Channels: Lead & Clean
Wattage: 50
TUBES
Power Tubes: 2x 6CA7 or 6L6GC
Preamp Tubes: 6x 12AX7 / ECC83
V1: Common Input
V2: Clean Channel
V3 & V4: Lead Channel
V5: Effects Loop
V6: Phase Inverter
CONTROLS
Lead Channel: Volume, Bright Switch, Treble, Middle, Bass, Master Volume
Clean Channel: Volume, Bright Switch, Treble, Middle, Bass, Master Volume
Global Controls: Presence, Depth
CONNECTIONS
Inlet: Fused Power Inlet (IEC)
Effects Loop: Series - tube driven
Extension Speaker Jacks: 5
Ohm Switching: (2) 4 ohm & (2) 8 ohm parallel, (1) 16 ohm
Bias: Adjustable with Monitoring Jacks
HARDWARE
Covering: Black Textured Vinyl
Grill Cloth: Black British-Style Knitted Weave
Piping: Black Embossed Welt
Panel: Brushed Black Metal
Speakers: Celestion V-Type 70W
Handle: Stitched Black Faux Leather
DIMENSIONS
Amp Width: 21.5” (54.61 cm)
Amp Depth: 10” (25.4 cm)
Amp Height: 18” (45.72 cm)
Amp Weight: 42.8 lbs (19.41 kg)
ACCESSORIES
Included Accessories: 1-Button Footswitch, for Channel Switching
