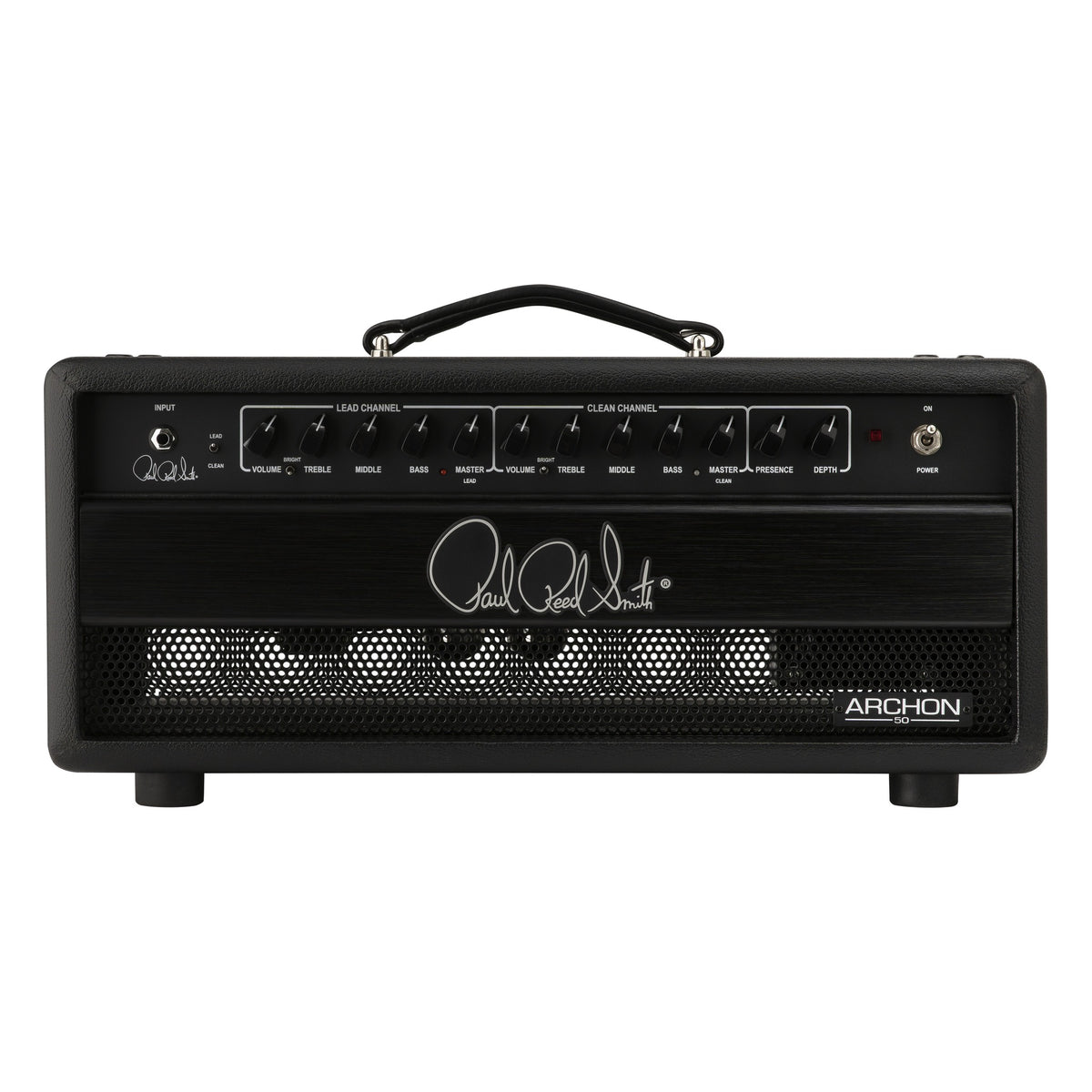

The Archon 50 is a two-channel, 50-watt head with six 12AX7s and a pair of power tubes PRS lists as 6CA7 or 6L6GC. The Lead channel stacks five gain stages before the master volume, and PRS voices it to run from classic rock to metal. The Clean channel is built for headroom, which makes it a good base for pedals.
Each channel has its own volume, bright switch, 3-band EQ and master, so the two can be set independently and balanced against each other. Two global controls act on the power amp's feedback network: Presence brings the high mids and treble forward, and Depth adds low end with a resonance to it. The effects loop is tube driven.
Pair it with the Archon 2x12 or 4x12 Cabinet, both loaded with Celestion V-Types. The Archon Classic 50 Head is the one to compare if you lean toward 70s and 80s rock and want a hotter clean channel.
SPECIFICATIONS
AMPLIFIER
Country of Origin: Indonesia
Available Configurations: 1x12 Combo, Head
Channels: Lead & Clean
Wattage: 50
TUBES
Power Tubes: 2x 6CA7 or 6L6GC
Preamp Tubes: 6x 12AX7 / ECC83
CONTROLS
Lead Channel: Volume, Bright Switch, Treble, Middle, Bass, Master Volume
Clean Channel: Volume, Bright Switch, Treble, Middle, Bass, Master Volume
Global Controls: Presence, Depth

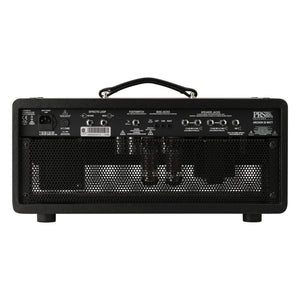

CONNECTIONS
Inlet: Fused Power Inlet (IEC)
Effects Loop: Series - tube driven
Extension Speaker Jacks: 5
Ohm Switching: (2) 4 ohm & (2) 8 ohm parallel, (1) 16 ohm
Bias: Adjustable with Monitoring Jacks
HARDWARE
Covering: Black Textured Vinyl
Piping: Black Embossed Welt
Panel: Brushed Black Metal
Handle: Stitched Black Faux Leather
DIMENSIONS
Amp Width: 21.5” (54.61 cm)
Amp Depth: 10” (25.4 cm)
Amp Height: 10” (25.4 cm)
Amp Weight: 32.4 lbs (14.7 kg)
ACCESSORIES
Included Accessories: 1-Button Footswitch, for Channel Switching
