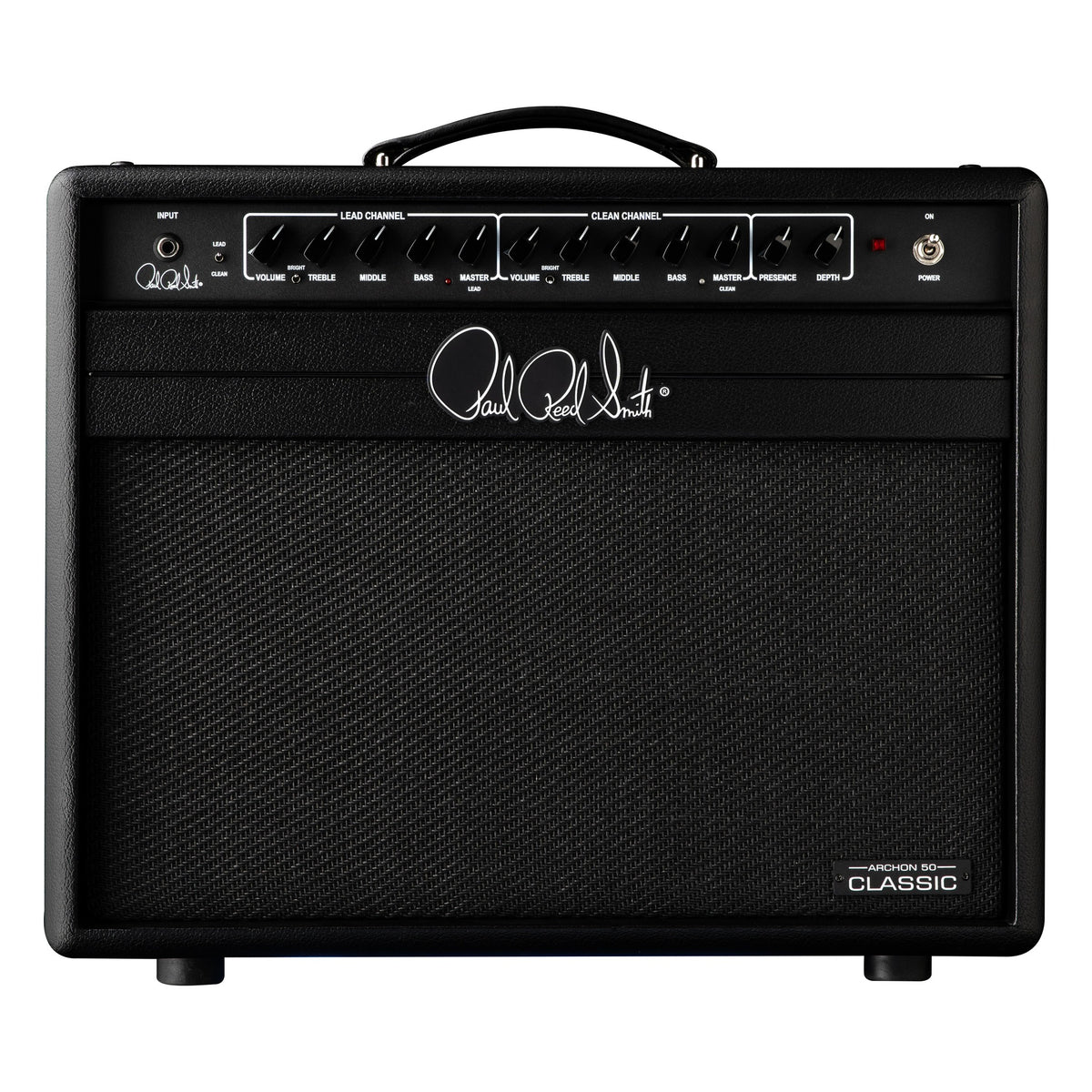

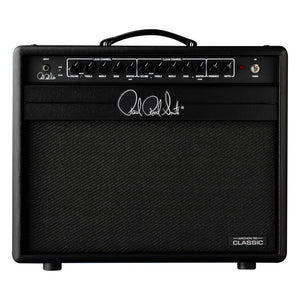

The Archon Classic 50 1x12 Combo builds the Archon Classic head's voice, power and two channels into one cabinet with a 12-inch Celestion V-Type rated at 70 watts. It runs a pair of JJ 6CA7s with six JJ ECC83S preamp tubes and weighs 42.8 lbs.
The Clean channel is where this amp differs most from the Archon 50. It runs hot enough to move from pristine to edge of breakup on its own, while the Lead channel covers classic gain with extra range in the mids. Volume and master on each channel set the balance of loudness and drive, and Depth picks between a tight low end and a more resonant one.
It suits a player who wants a self-contained rock amp with room for a pedalboard (the loop is tube driven). The Archon 50 1x12 Combo is the comparison if you want the Lead channel to go heavier.
SPECIFICATIONS
AMPLIFIER
Country of Origin: Indonesia
Available Configurations: Head & Combo
Channels: Lead & Clean
Wattage: 50
TUBES
Power Tubes: (2) JJ 6CA7
Preamp Tubes: (6) JJ ECC83S
V1: Input
V2: Clean
V3: Lead
V4: Lead
V5: Loop
V6: Phase Inverter
CONTROLS
Lead Channel: Volume, Bright Switch, Treble, Middle, Bass, Master Volume
Clean Channel: Volume, Bright Switch, Treble, Middle, Bass, Master Volume
Global Controls: Presence, Depth

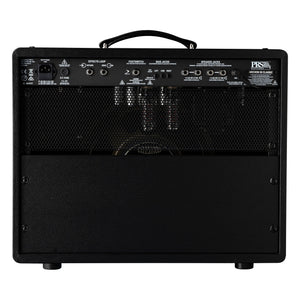

CONNECTIONS
Inlet: Fused Power Inlet (IEC)
Effects Loop: Series, Tube Driven
Extension Speaker Jacks: 5
Ohm Switching: (2) 4 ohm parallel, (2) 8 ohm parallel, (1) 16 ohm
Bias: Adjustable with Monitoring Jacks
Footswitch Jack: 1/4” Mono
HARDWARE
Covering: Black Textured Vinyl
Piping: Black Embossed Welt
Panel: Black Textured Vinyl
Speakers: Celestion V-Type, 70W
Handle: Stitched Black Faux Leather
DIMENSIONS
Amp Width: 21.5” (54.6 cm)
Amp Depth: 10” (25.4 cm)
Amp Height: 18”
Amp Weight: 42.8 lbs
ACCESSORIES
Included Accessories: 1-Button Footswitch for Channel Switching
